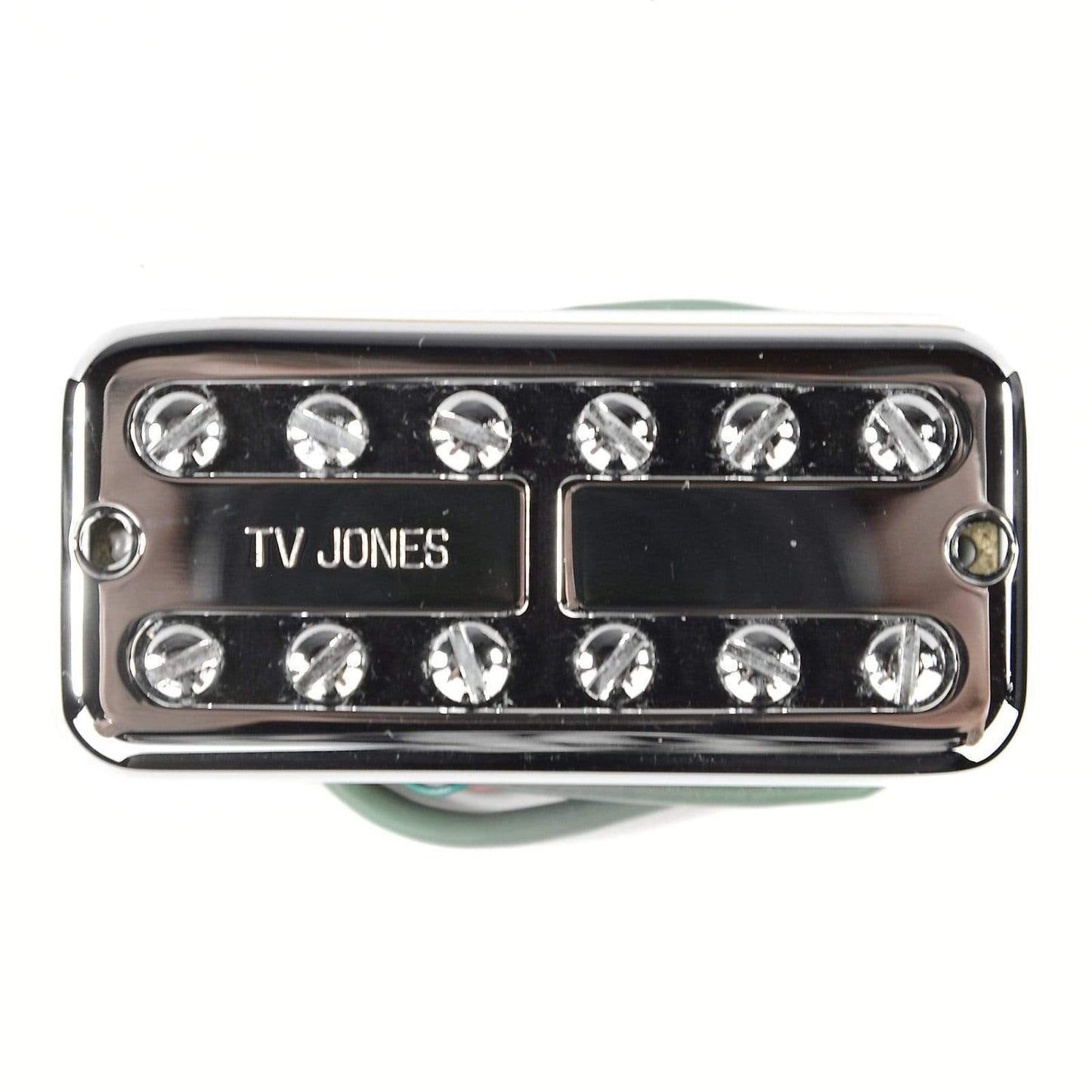

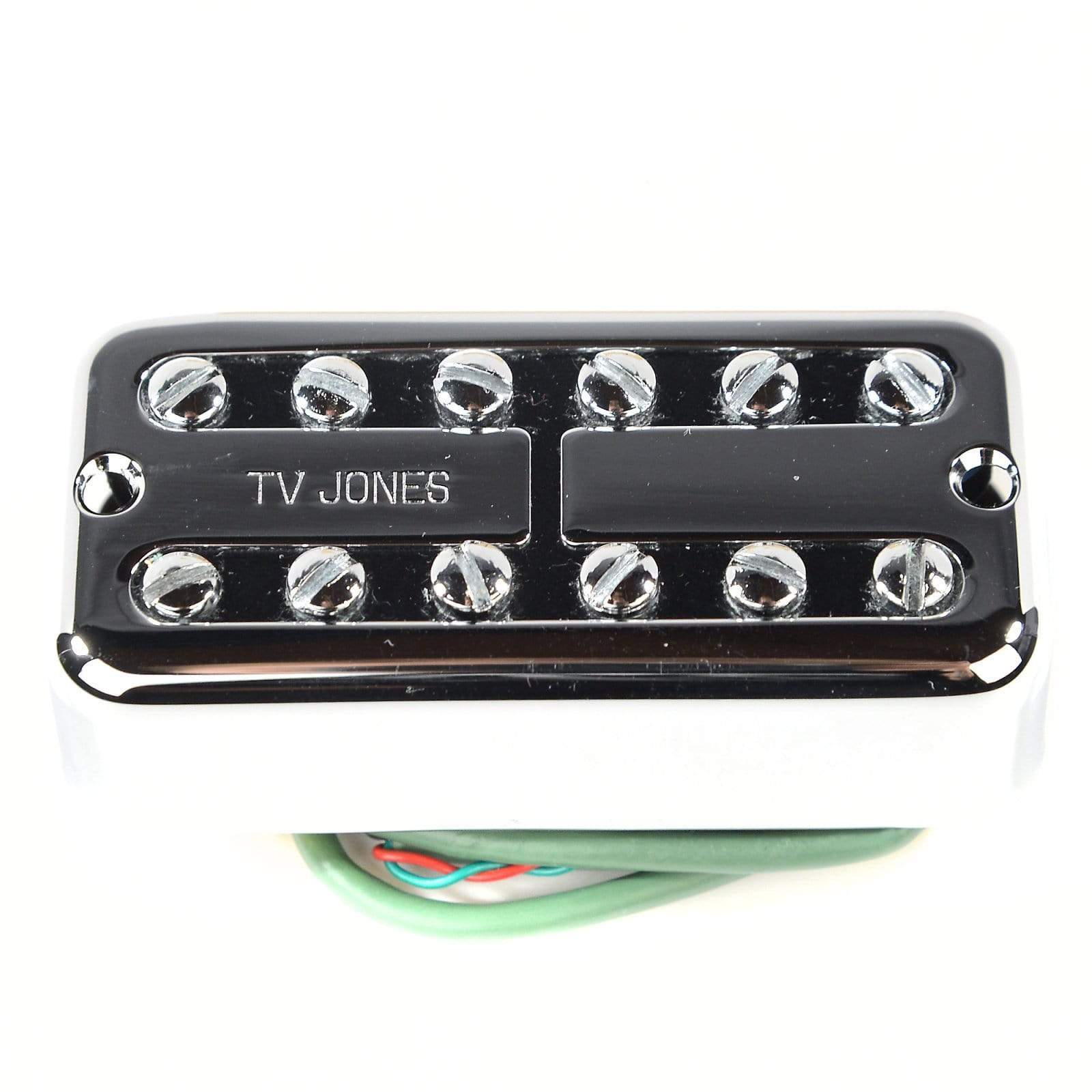

The new TV Jones Universal Mount™ with Clip System™ makes choosing a TV Jones pickup easier than ever! No need to choose between the No Ears Mount or the English Mount. This new mount does both with one easy mounting option.
Ships with 2 wood screws, compression rubber, 2 humbucker screws with springs and clips. Rings for suspending pickup sold separately.
DCR - 4.8k / Inductance - 1.83H
WIRING NOTES
This pickup is shipped with 4-conductor wire but is ready for standard 2-conductor connection. The extra red and green wires come soldered together and taped off - to split coils, send these to ground.
Splitting coils is generally not recommended for this pickup due to low coil output but some say it works well to their taste. 4-Conductor wire is also convenient for custom switching i.e. pickups combined in series or parallel.
