Darkglass DGMF MIDI Footswitch

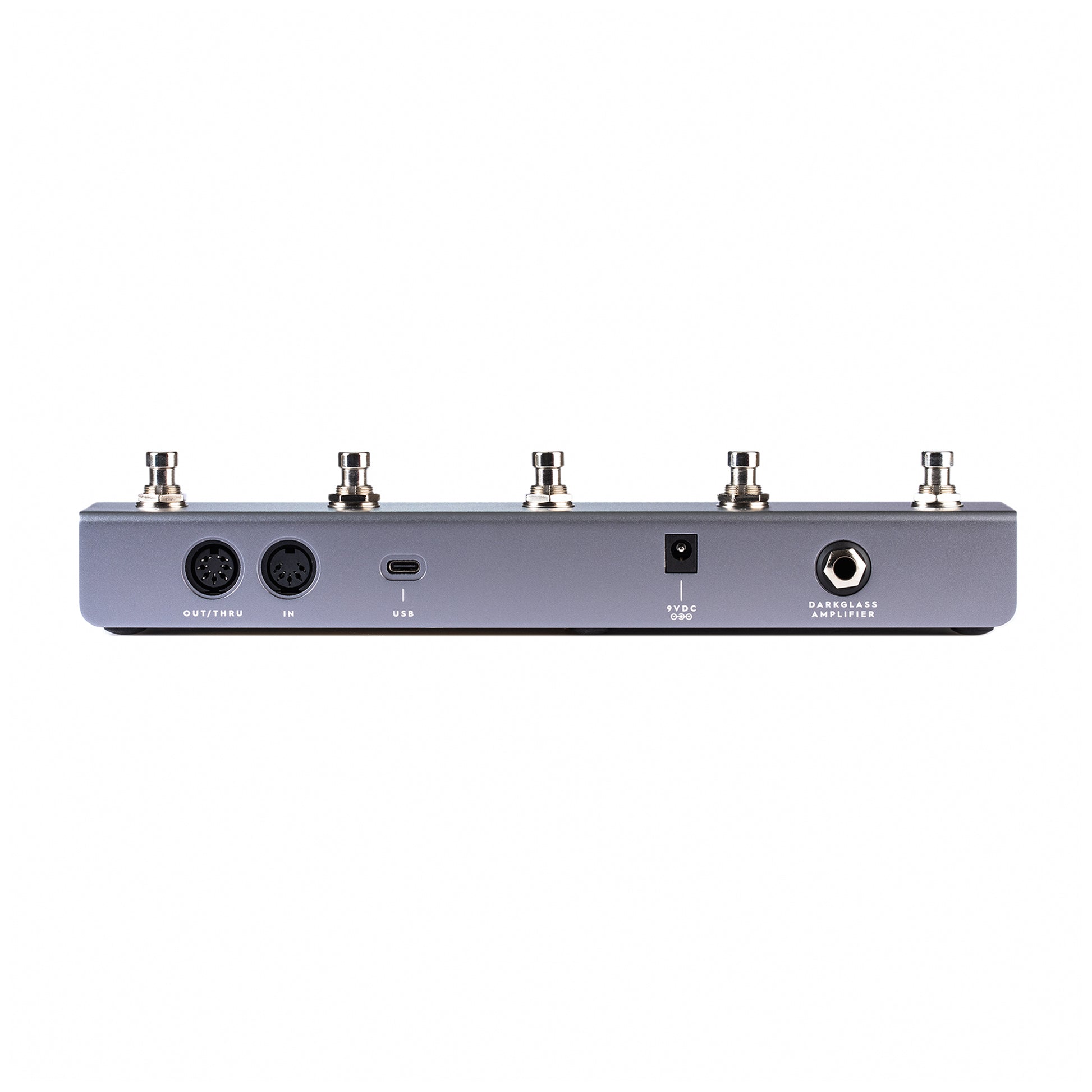

Connections

• MIDI IN: 5-pin DIN connector
• Connects to a MIDI OUT on another MIDI device
• Passes the MIDI messages through to MIDI OUT/THRU connector.

MIDI OUT/THRU: 7-pin DIN connector

• Connects to Darkglass amplifiers or pedals that have a MIDI IN connection.
• Also supports any generic MIDI device.
• Can simultaneously be used to power the MIDI footswitch from a Darkglass e500 or Combo Infinity amplifier.

USB: USB-C connector

• Connects to a computer for setting the configuration using Darkglass Suite
• Supports USB MIDI
• Can be directly connected to Darkglass e500 amplifier for syncing settings
• Can be used to power the MIDI footswitch from a power bank or a USB port or a USB charger

9V DC: Barrel jack connector (center negative)

• Can be used to power the MIDI footswitch.

DARKGLASS AMPLIFIER: 1⁄4” TS jack connector

• Connects to FOOTSWITCH connector of Darkglass amplifiers.
• Works as a Darkglass Super Intelligent Footswitch.
• Can simultaneously be used to power the MIDI footswitch with a Darkglass amplifier.

Controls

• 5 footswitch buttons with RGB LED indicators.

Functions

• Freely configurable via the Darkglass Suite software (MIDI PC & CC commands).
• Ready configurations for Darkglass products available on the Darkglass Suite.
• Supports 5 banks with 5 presets each in “bank mode”.
• Can be powered from 9V DC, USB, MIDI OUT/THRU or DARKGLASS AMPLIFIER connector.
