From Dr. Scientist:
The Elements

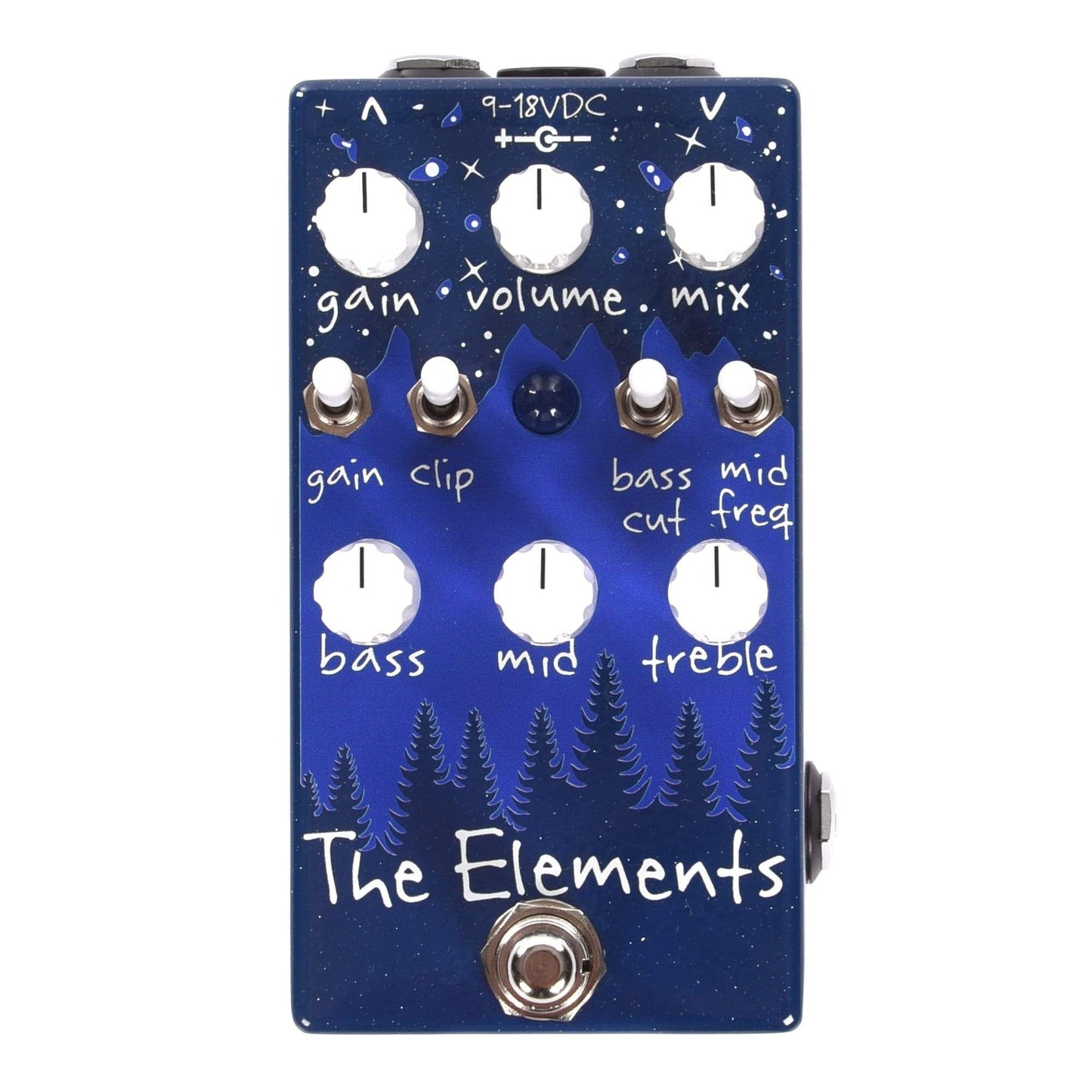

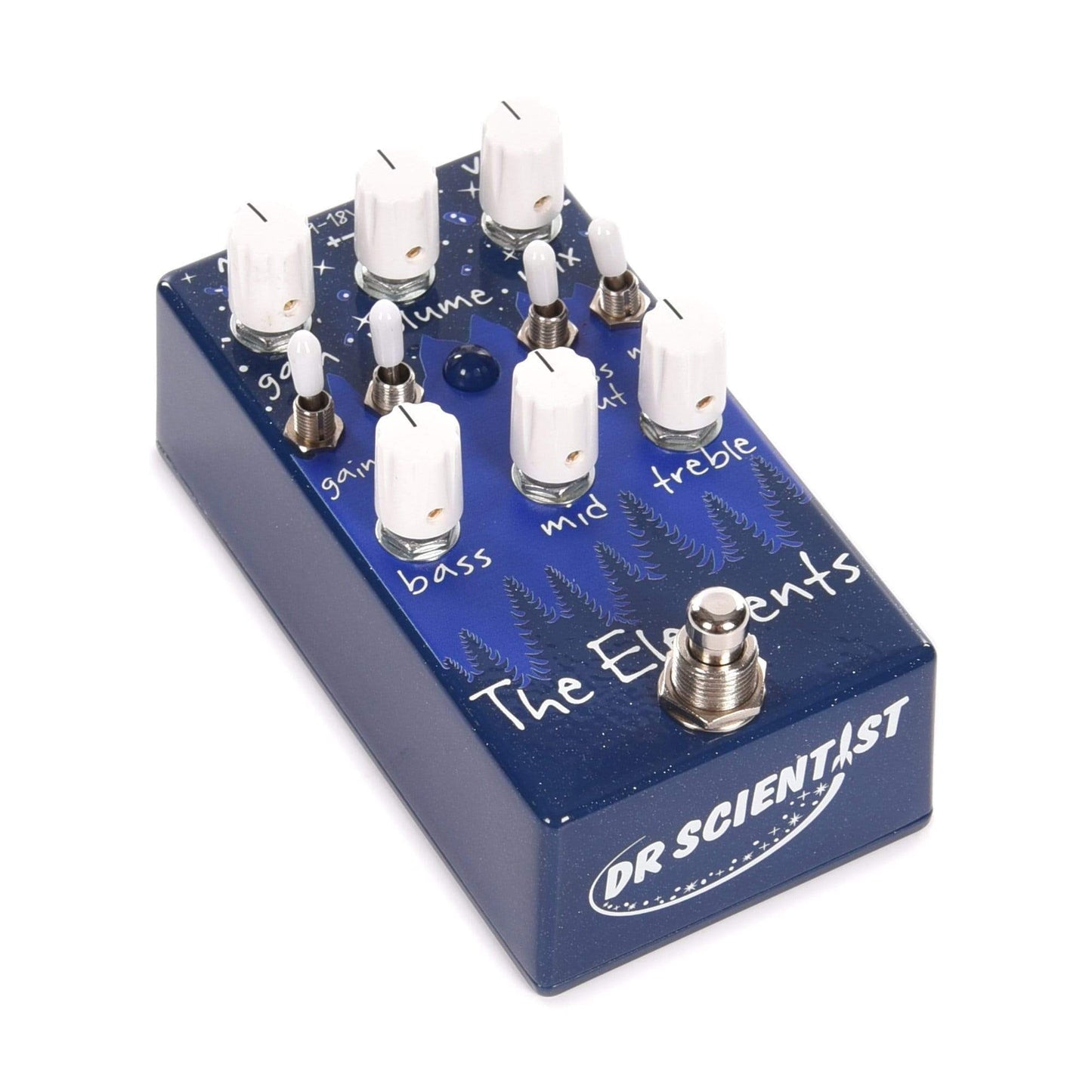

The Elements is a dual-channel overdrive/distortion with a wide gain range and a full 3 band equalizer. To increase its versatility, we’ve added toggle switch options for clipping modes, bass cut frequencies, and midrange frequencies. Whether you’re looking for high gain metal distortion or a clean equalizer, The Elements can fulfill a role on any pedalboard. Like all Dr. Scientist pedals, the Elements can be used with guitar, bass, synths, and many other instruments.
Features
Knobs
Operation
Additional Specs
The Elements
The Elements is a dual-channel overdrive/distortion with a wide gain range and a full 3 band equalizer. To increase its versatility, we’ve added toggle switch options for clipping modes, bass cut frequencies, and midrange frequencies. Whether you’re looking for high gain metal distortion or a clean equalizer, The Elements can fulfill a role on any pedalboard. Like all Dr. Scientist pedals, the Elements can be used with guitar, bass, synths, and many other instruments.
Features
- Low and High gain distortion channels selectable via toggle switch
- Active 3 Band EQ
- Symmetrical or Asymmetrical clipping diode options
- High quality analog signal path
- Premium parts and components throughout
- True Bypass with soft touch relay switching
- Full control over wet/dry mix
- Expression pedal control over Mix
- Top mounted audio and power jacks
- Designed and handmade in B.C., Canada
Knobs
- Gain – Increases the amount of distortion
- Volume – Controls the effect (Wet) signal level
- Mix – Adjusts the balance between the input signal (Dry) and the effect (Wet) signal
- Gain Toggle – Chooses between low- and high-gain channels
- Clip Toggle – Chooses between Symmetrical, Asymmetrical, or no clipping
- Bass Cut – Chooses between 3 levels of bass cut
- Mid Freq – Chooses between 3 centre frequencies for the Mid control
- Bass – Adjust the low frequencies
- Mid– Adjust the midrange frequencies
- Treble – Adjust the high frequencies
- Bypass – Engage or disengage the effect
Operation
- Input/Output Impedance: 500kΩ/1kΩ
- 100mA @ 9VDC, 2.1mm centre negative plug
- True Bypass with soft touch relay switching
Additional Specs
- Treble control: +/-15dB 2nd Order peaking filter centred at 3kHz
- Mid control: +/-15dB 2nd Order peaking filter centred at choice of 400Hz, 800Hz, 1200Hz
- Bass control: +/-15dB 2nd Order peaking filter centred at 100Hz
- Symmetrical clipping via LEDs, Asymmetrical via Germanium diode, or no clipping diodes
- Exp. input: TRS cable, 10kΩ to 100kΩ resistance
- Dimensions: 70mm wide, 129mm long, 59mm tall (2.75” wide, 5.1” long, 2.3” tall)
