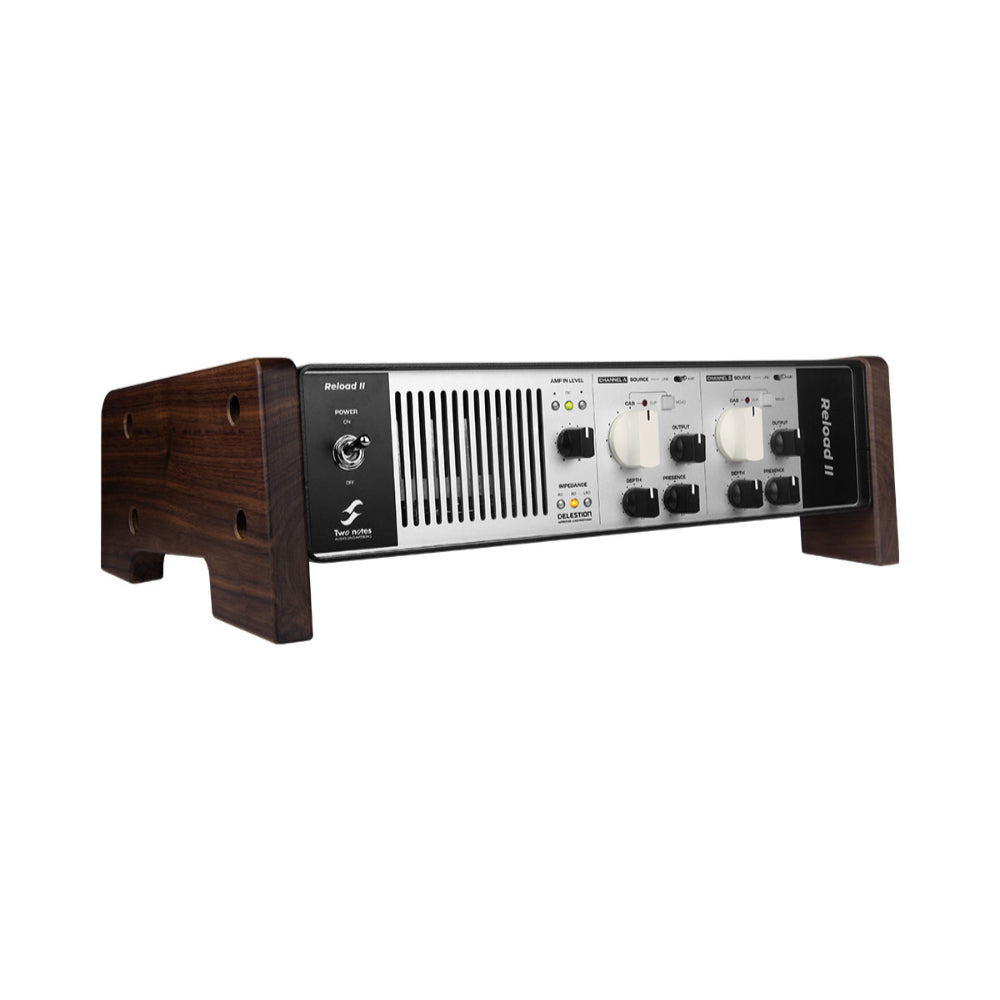

Two Notes Reload II Load Box And Attenuator

Introducing Torpedo Reload II. The latest instalment in Two notes’ class-leading reactive load solution legacy marking the definitive watershed in contemporary backline control. Featuring twin-channel operation, selectable multi-impedance compatibility and true continuous attenuation, Reload II is our most advanced Load Box to date. Its mission is simple: unleash the power of any amplifier or line-level source without compromise.

Armed with a ground-up rework of our defining reactive load for a Celestion® Approved Load Response, the match is set to drive any amp’s power-stage (rated up-to 200W RMS) to perfection, retaining all the sonic integrity your performance demands. Scalable from a whisper to a full-throttle onslaught, Reload II’s ultra-transparent dual-mono 215W (per channel) amplifier/attenuator and paired speaker outputs preserve every facet of your tone. Add a Stereo FX Loop, dual Line outputs and GENOME Reload I! Edition (software download) into the mix and Reload MKII doesn't just enhance your rig, it redefines it.

Speaker Input
Jack 6.35mm (1/4”) unbalanced (TS, Tip/Sleeve)
Maximum input Voltage: 140V AC (45dBu)
Max Security Load: 270Ω / 20W

Load Input Level
Adjustable via potentiometer with continuous attenuation (-inf) to continuous amplification (+20dB)

Speaker Outputs
(2) Jack 6.35 mm (1/4”) unbalanced (TS)
Min Load: 3.5Ω

Max Output Power (single channel at THD+N <1%):
1x 215 W RMS @ 4Ω
1x 120 W RMS @ 8Ω
1x 50W RMS @ 16Ω

Maximum Output Power (both channels driven at THD+N <1%):
1x 215 W RMS @ 4Ω
1x 120 W RMS @ 8Ω
1x 50W RMS @ 16Ω

Line Inputs
Dual-Mono, (2) Jack 6.35mm (1/4”) balanced (TRS, Tip/Ring/Sleeve)
Switched jacks for routing to an unplugged channel
Impedance: 300Ω
Gain (In to Out): +4 to -inf dB
Maximum Output Level: 20dBu
Noise: Under -99dBu from 20Hz to 20kHz
Frequency Response @ -1dB: 20Hz to 20kHz

FX Loop
Dual-Mono Fx loop with independent CHANNEL A and CHANNELB controls
(2) SEND + (2) RETURN via 6.35mm (1/4”) unbalanced (TS) Jack
Compatibility with +4dBu and -10dBV devices, selectable via a dedicated switch per channel
DRY/WET potentiometer with ON/OFF switch
Facilities to Copy CHANNEL A return to CHANNEL B output via dedicated switch
FX loop activation/deactivation via Footswitch with a 6.35mm (1/4”) Jack; (TRS, Tip/Ring/Sleeve) or (TS, Tip/Sleeve) compatible and configurable via a dedicated Footswitch behaviour switch

Load Box
Reactive Load featuring a Celestion Approved Load Response with nominal impedance: 4- or 8- or 16-Ohms (switchable)

Maximum Admissible Power
200W RMS (assuming proper ventilation)

Maximum Temporary Admissible Power
250W peak (assuming proper ventilation)

Tone Control
(1) DEPTH and (1) PRESENCE control per CHANNEL
Flat response on potentiometers at 0%
(1) MOJO control per CHANNEL to deliver high-power feel at low volume
Depth: +8dB @75Hz on potentiometer at 100%
Presence: +8dB @4kHz on potentiometer at 100%

Cooling
Passive cooling with amplifier heatsink and Load Box heatsink
Active cooling with temperature-controlled fan with 2 speeds (Slow & Boost)

Thermal Security
To prevent damage to the internal Load Box, thermal cut off is implemented when the internal temperature rises over a predesignated threshold. When active, a 270Ω security load is placed into effect and the signal is muted

Power Supply
Type: IEC60320 C14 power connector
Input Voltage: Compatible with 100V – 230V @ 50- to 60Hz
Power: 100W Max

Dimensions & weight
Width x Depth x Height*:
365mm x 89mm x 220mm
365mm x 89mm x 240mm Including connectors and knobs
