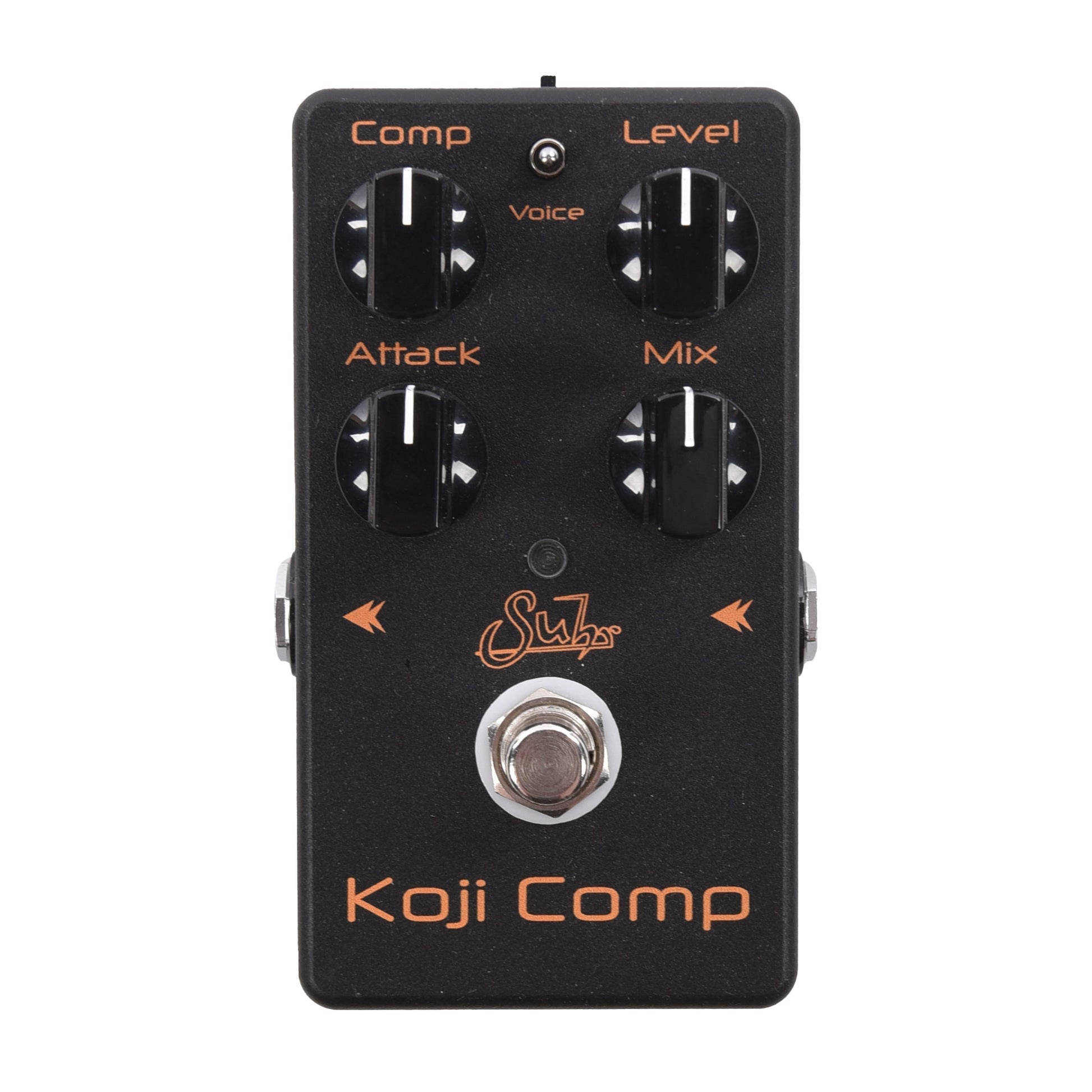

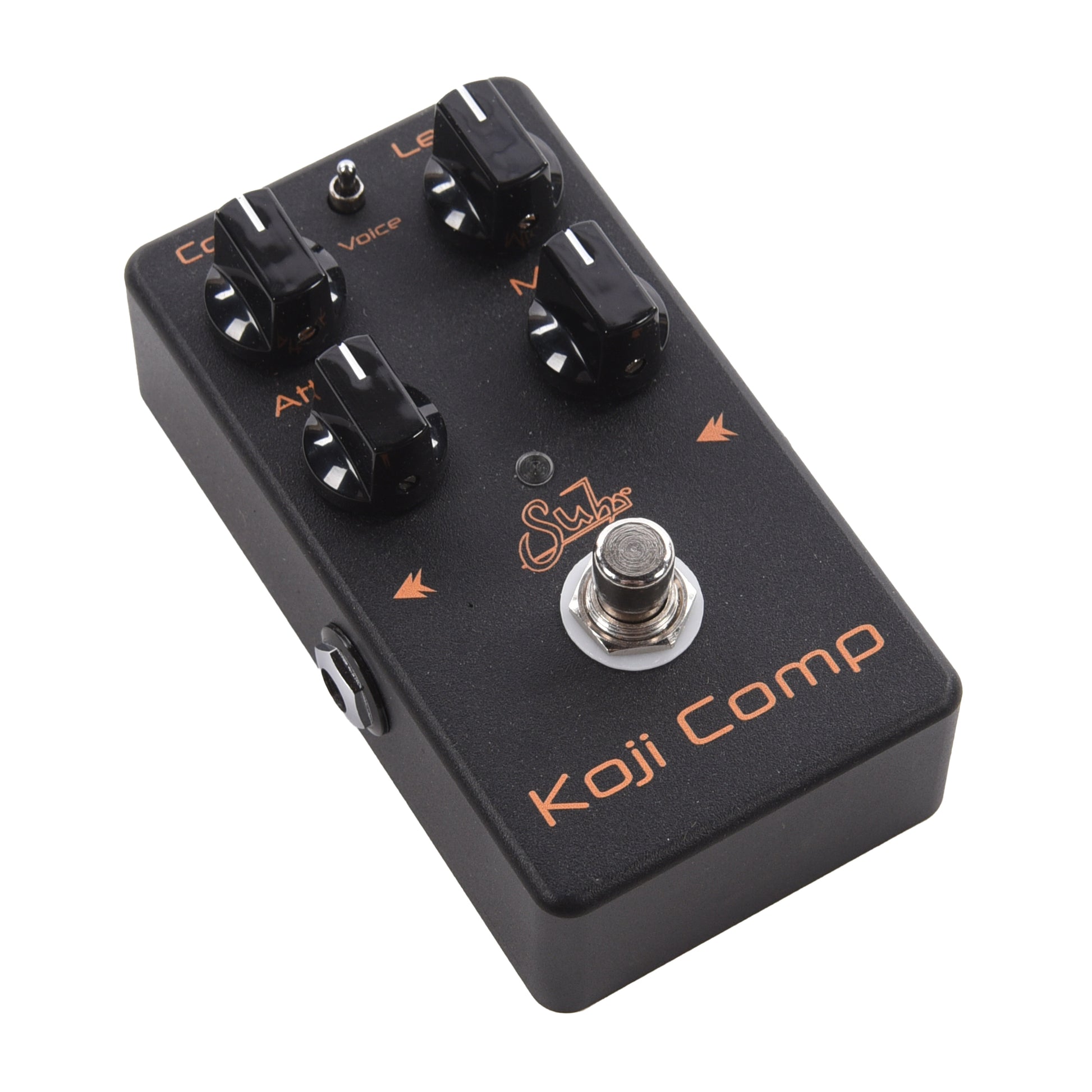

The Koji Comp is a versatile analog compressor, designed to offer a wealth of vintage and modern style compression effects without compromising your tone.
With a simple twist of the Mix control, or flick of Koji's Voice switch, you can easily create a limitless range of compression effects. Whether you choose subtle, transparent compression for smoothing out your rhythms, or dial in warm and squishy tones to take you into R&B and Country territory -the Koji Comp is possibly the last compressor you will ever need.
Features:
MULTI-FUNCTION LED
Gain Reduction Indicator: The LED indicator that displays the amount of Gain Reduction based on the ratio of your instrument's signal and the level of compression in your signal.
Green - Minimal Gain Reduction
Orange - Moderate Gain Reduction
Red - Maximum Gain Reduction (This is not a bad thing)
Orange - Moderate Gain Reduction
Red - Maximum Gain Reduction (This is not a bad thing)
On / Off Indicator: The LED indicator displays the on / off effect status
Specifications:
Input Impedance: 1M ohm
Output Impedance: 600 ohm
Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm
Operating Voltage: 5V to 18V (nominal 9V)
Maximum Voltage: 20Vdc
Attack Time Range: 1ms-100ms
Gain Reduction Indicator: 3 Color LED
Reverse Battery Protection: yes
Over Voltage Protection: yes
Current Consumption: < 20mA
Estimated Battery Life: 40 - 50 hours of continuous use
Dimensions: 2.50" Width x 4.50" Depth x 1.25" Height
Weight: 0.75 pound
FxLink Connector: 1/8" mono jack
FxLink max Voltage: 3.3Vdc
Shield to Tip: Activate on/off
ROHS Compliant: Yes
