Description
Description
All three Signature Series amplifiers bring a new level of innovation and refinement to the crafting of vintage tones. Distinctive design features like instrument-grade cabinetry, a purist multi-voice preamp, and interstage transformer based design set them part from conventional guitar amplifiers. The result is a strikingly different kind of sound – deep and resonant, detailed and present, but also smooth and balanced at the same time. They respond like an acoustic instrument and fill the room with a lively, present, and totally unconstricted tone.

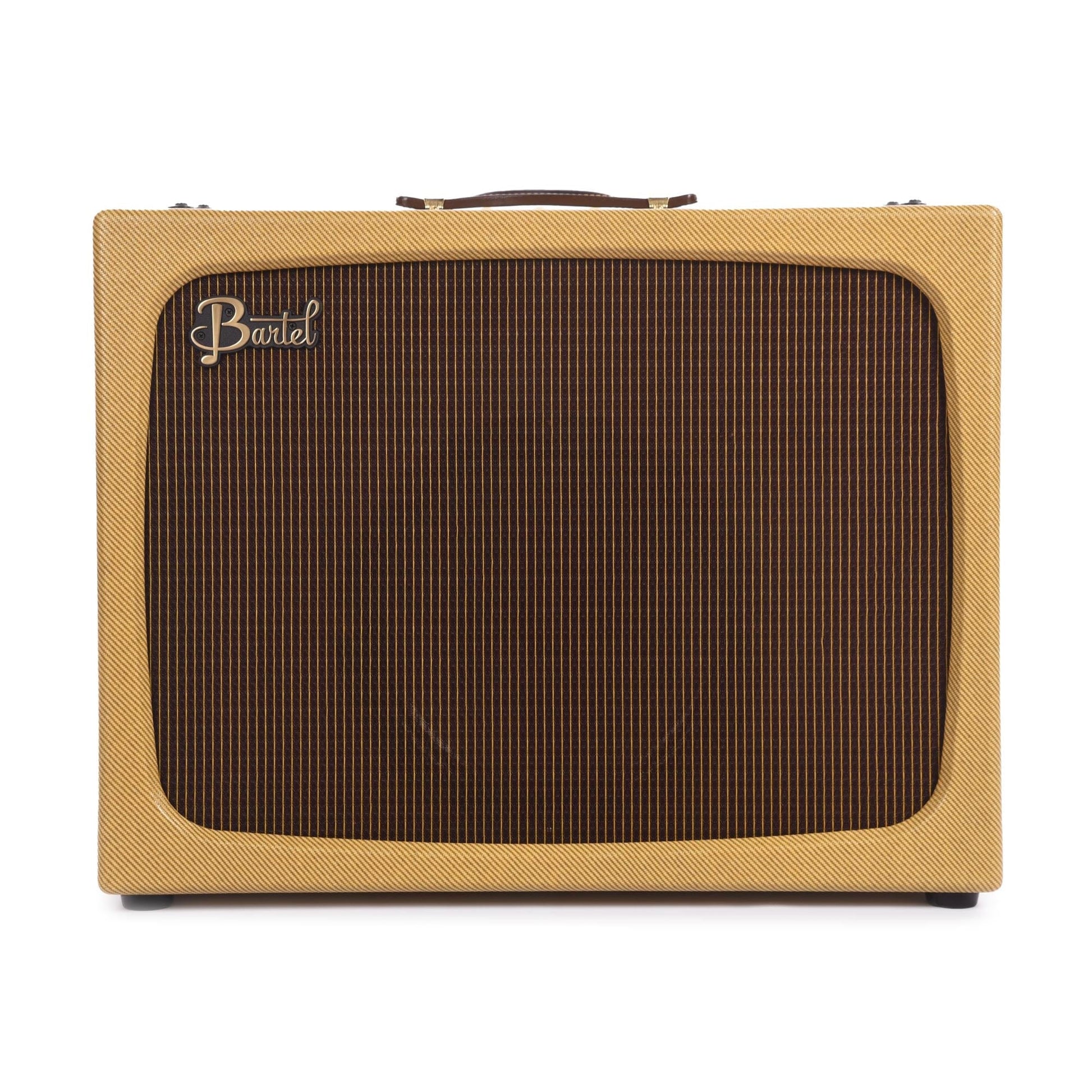

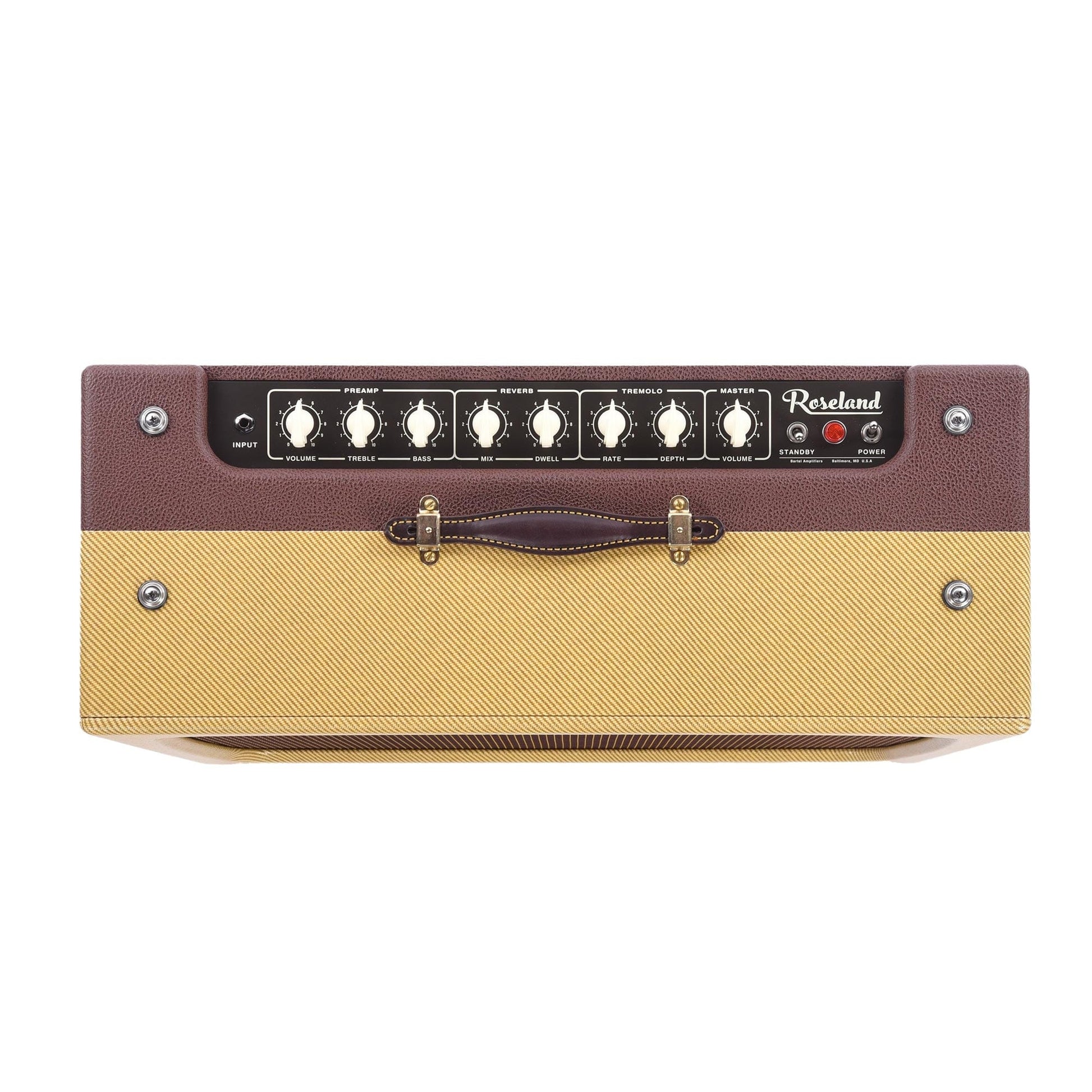

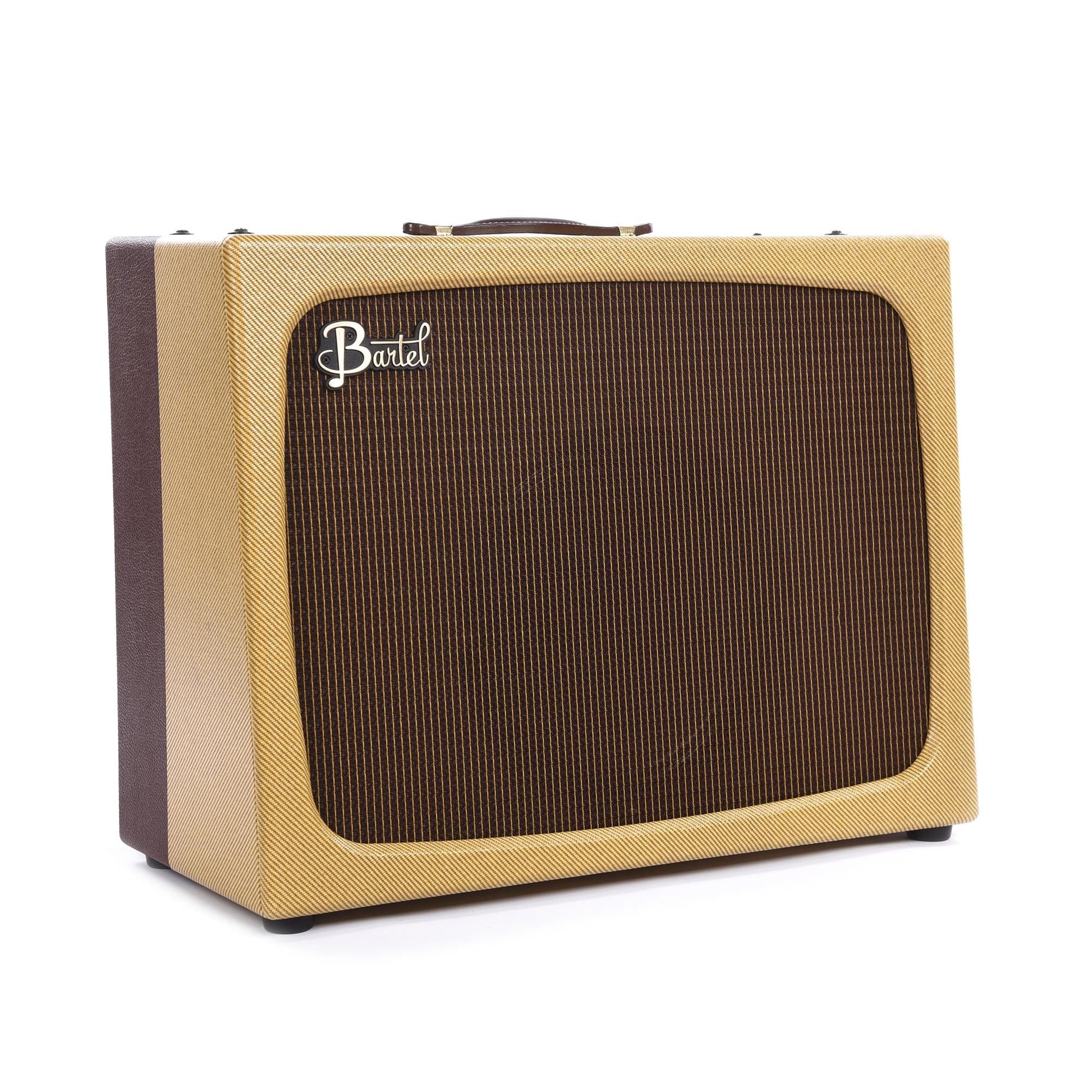

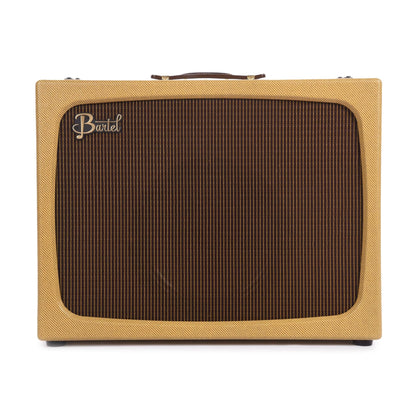

The 45W Roseland is a purist design, all tube 1×12 combo with reverb and tremolo powered by a pair of 6L6 tubes. Its’ single channel Multi Voice preamp offers an incredibly wide range of voicings ranging from sparkly cleans to thick, woody tweed to driven plexi crunch and grind. It includes tube driven spring reverb with both mix and dwell controls to fine tune the reverb sound to be as splashy or subtle as you choose. Its bias modulation tremolo has a particularly smooth and round effect. The solid wood cabinet with unified baffle/body construction delivers a lively, deeply resonant, and unconstricted sound. A unique master volume circuit is extremely transparent, maintaining the same sound and vivid presence all the way down to bedroom volume.
Features
- 45W 1x12 Combo Amplifier
- All Tube, Handwired Circuitry
- Single Channel Multi-Voice Preamp
- Spring Reverb with Mix & Dwell Controls
- Bias Modulation Tremolo
- Innovative Master Volume Control
- Footswitch: Reverb On/Off, Tremolo On/Off
- Dimensions 25.25" x 19" x 11.75"
- Weight 48lbs
Construction Highlights
- Circuitry handwired on custom fabricated turret boards
- Paper Bobbin Layer Wound Transformers
- Silver Plated Wire
- Handmade Leather Handle by Brookwood Leather
- Custom molded knobs and other appointments
- Tweed covering material finished with 5 hand-brushed coats of lacquer
Cabinet
- Unified body/baffle construction
- Cabinet body: solid Eastern White Pine
- Baffle board: crafted from 12 pieces of solid Eastern White Pine and African Mahogany
- Special recipe coating compound applied to preserve natural acoustic behavior.
- Upholstery applied with natural hide glue for superior acoustic response.

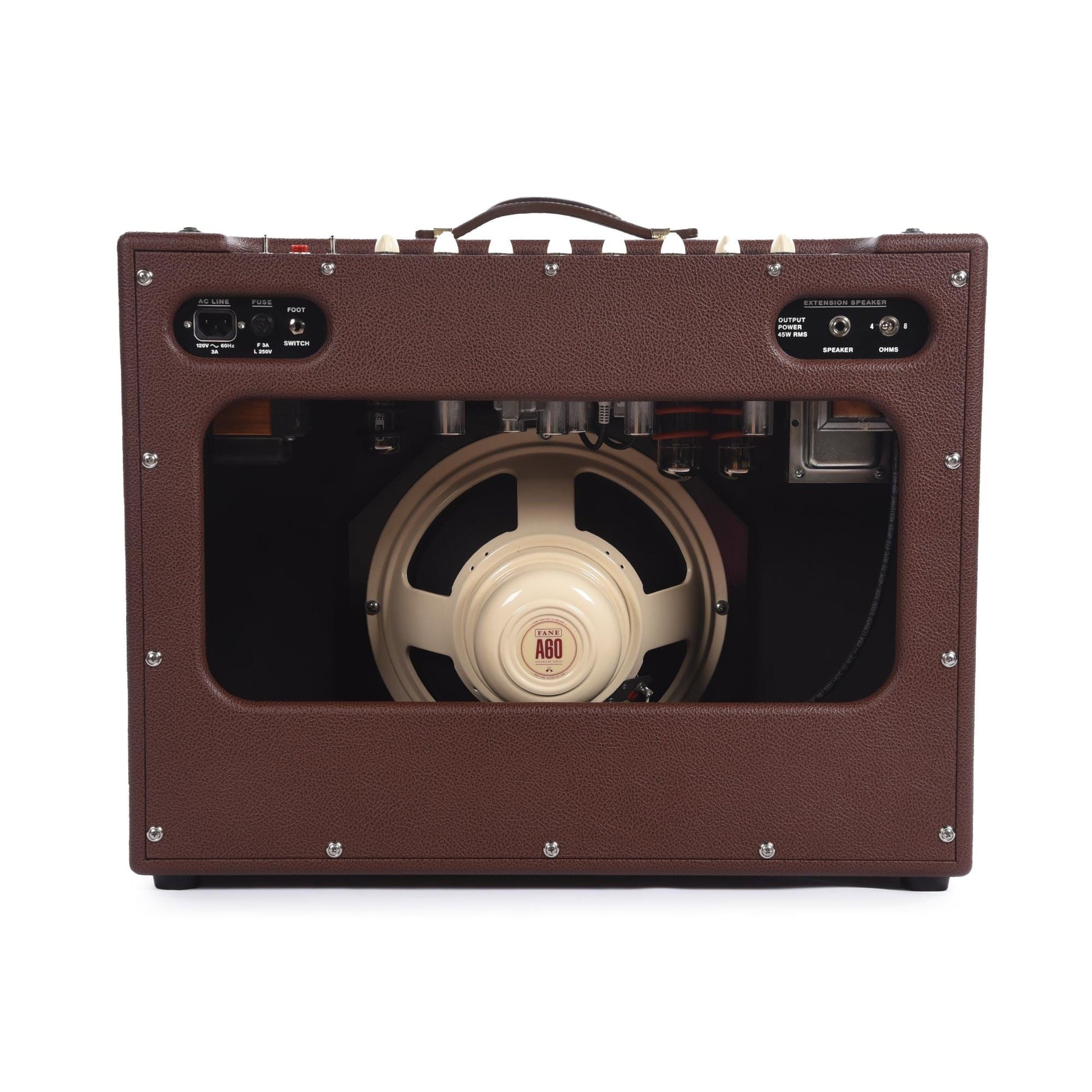

- Celestion Alnico Cream Speaker
Design Highlights
- Tubes: 3x12AX7A, 2x12AU7, 2x12AT7, 2x6L6GC, 1x5AR4
- Interstage transformer coupled phase inverter
- Ideal circuit layout for lowest noise floor and purest tone
- Tube driven reverb circuit
- Bias Modulation Tremolo Circuit
- Fixed bias output stage
- External bias test points and adjustment
- No negative feedback
