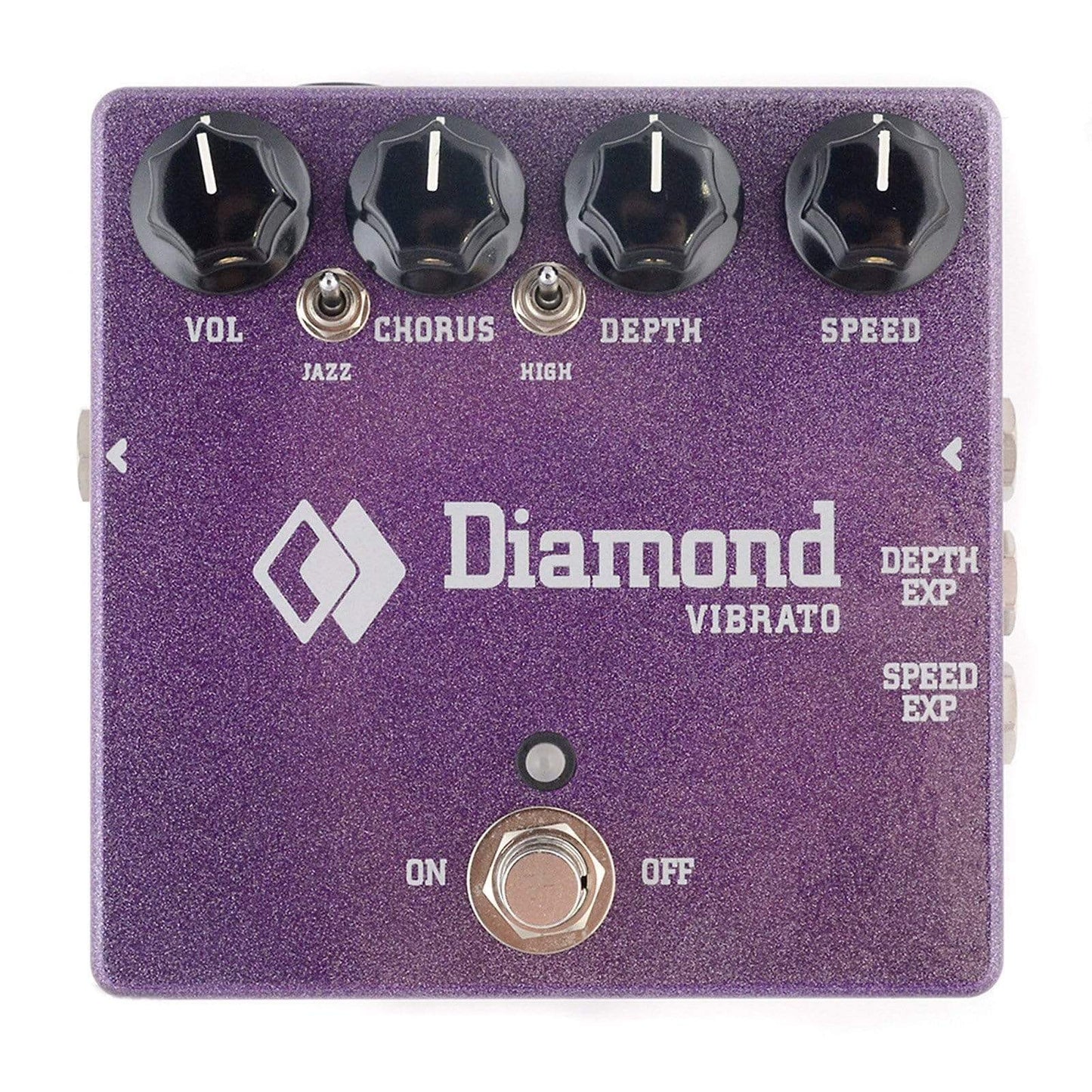

Diamond Vibrato Analog Vibrato/Chorus

Diamond Vibrato Analog Vibrato/Chorus

Questions? Chat Now!

Description

From Diamond:

The new Diamond Vibrato is a dedicated pitch vibrato design using bucket brigade analog delay technology for true pitch modulating vibrato. In addition the pedal also offers analog chorusing via the Chorus control to blend a variable amount of dry signal with the effected signal.

We’ve included 2 mini-toggle switches on the Vibrato. The ‘JAZZ’ switch darkens the tone of the effect offering a more ‘vintage’ flavor. The ‘HIGH’ toggle switches to a higher depth range for more extreme pitch bent sounds.

Expression control of depth, and speed for on-the-fly adjustment and special effects. Mono true bypass operation. Extended headroom 15V internal voltage rail operation. NOS MN3007 bucket brigade delay chips.

Specs:
  • dedicated true pitch vibrato using MN3007 analog bucket brigade design
  • ‘magic-eye’ bi-color LED shows vibrato LFO rate even when bypassed
  • true bypass operation
  • ultra smooth sinewave LFO
  • ‘HIGH’ switch for increased Vibrato depth
  • ‘JAZZ’ switch for a darker, ‘vintage’ tone
  • extended headroom internal 15V rails, can be operated from guitar and FX loop levels
  • all analog circuitry with VIshay JFET’s, Burr-Brown audiophile opamps and Panasonic polyprop caps in the signal path
  • variable Chrous control for blending dry signal with pitch shifted signal
  • mono in/out operation
  • expression pedal control of vibrato depth, allowing the player to manually swell the vibrato effect without changing overall volume
  • expression pedal control of vibrato speed
  • internally regulated to 15V, can be run from provided 18-24V adapter or from 18V pedal board power supply outputs (including Y-cable powering from 2 9V outputs on most pedal power supplies)
  • genuine Hammond cast aluminium 4.7 x 4.7 x 1.3 inch case
  • Includes 9v Power Supply
