Description
Description

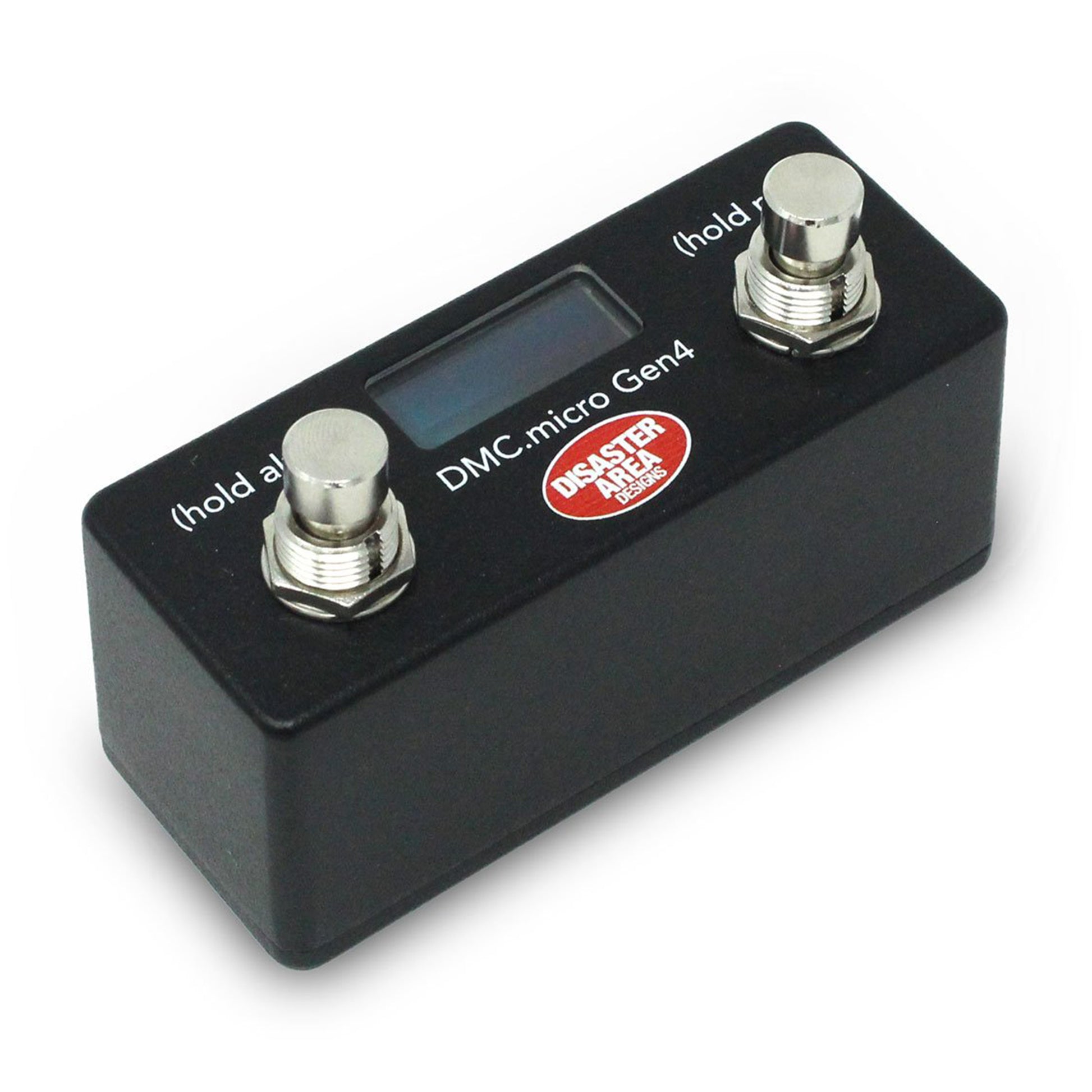

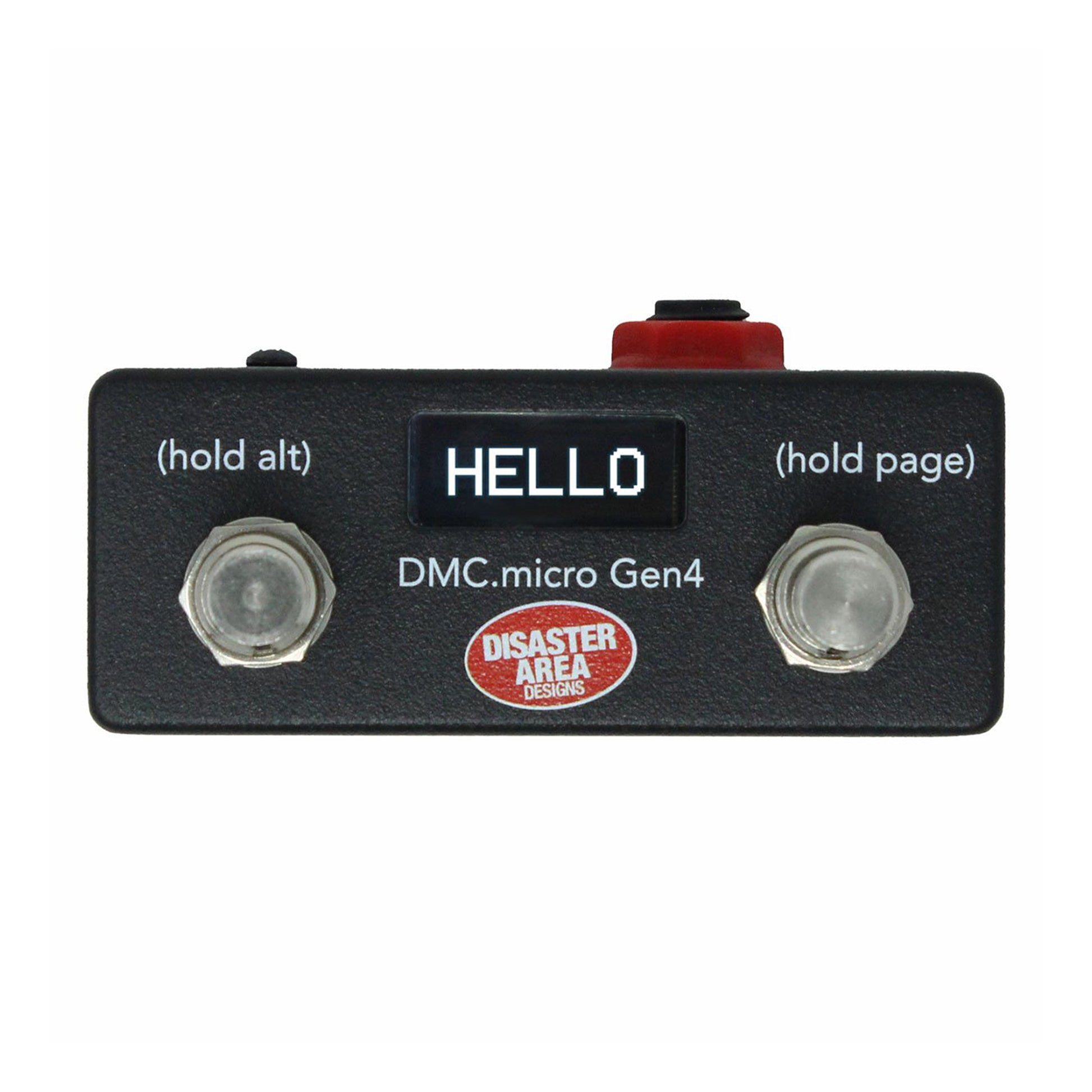

The DMC.micro Gen4 uses our advanced MIDI technology in a tiny package – just 3.6″ x 1.5″ x 1.6″ (93 x 38 x 42mm.)
The DMC.micro user interface is incredibly simple – tap the left or right buttons to perform an action, hold the left button to perform a third “alternate” action, or hold the right button to advance to the next “page.”
The DMC.micro Gen4 can access up to eight pages, whose functions may include:
Device Control: Program select and bypass for up to four devices.
Utility Mode X: User-set actions on left / right / alt buttons.
Utility Mode Y: User-set actions on left / right / alt buttons. This mode is also assignable to looper controls for the Strymon Timeline, Eventide H9 / Timefactor, HX Stomp / Effects, or Line 6 M9/M13.
Preset: Stores programs from Device Control pages and allows the user to change multiple devices at once.
Clock: Control the DMC.micro Gen4’s built-in MIDI clock generator
Web-based editor: Completely configure the entire controller, set preset names, re-order presets, import and export controller settings.
Features
- Graphical OLED display shows preset names, device status, clock rate, and more.
- One MultiJack connector can function as Expression Pedal input, Tap Tempo Output, Function Switch Output, Footswitch Input, or MIDI Output.
- Internal DIP switches to customize MultiJack functions.
- Up to 99 user-accessible presets (if preset page is active.)
- Controls up to four MIDI devices
- User-definable Utility Mode X page sends any MIDI CC command, MIDI notes, bank up and down, more.
- New Utility Mode Y page adds additional user-defined commands or use as looper control mode
- USB Type-C port for power, USB MIDI, or firmware updates
- USB Type-A port for dedicated USB MIDI HOST, connect to most class-compliant USB MIDI devices
- Runs on 5V USB or standard 9V power, 40mA or higher
