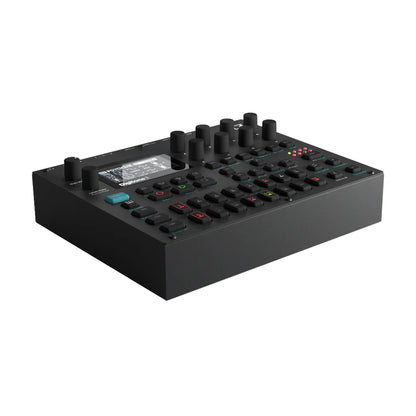

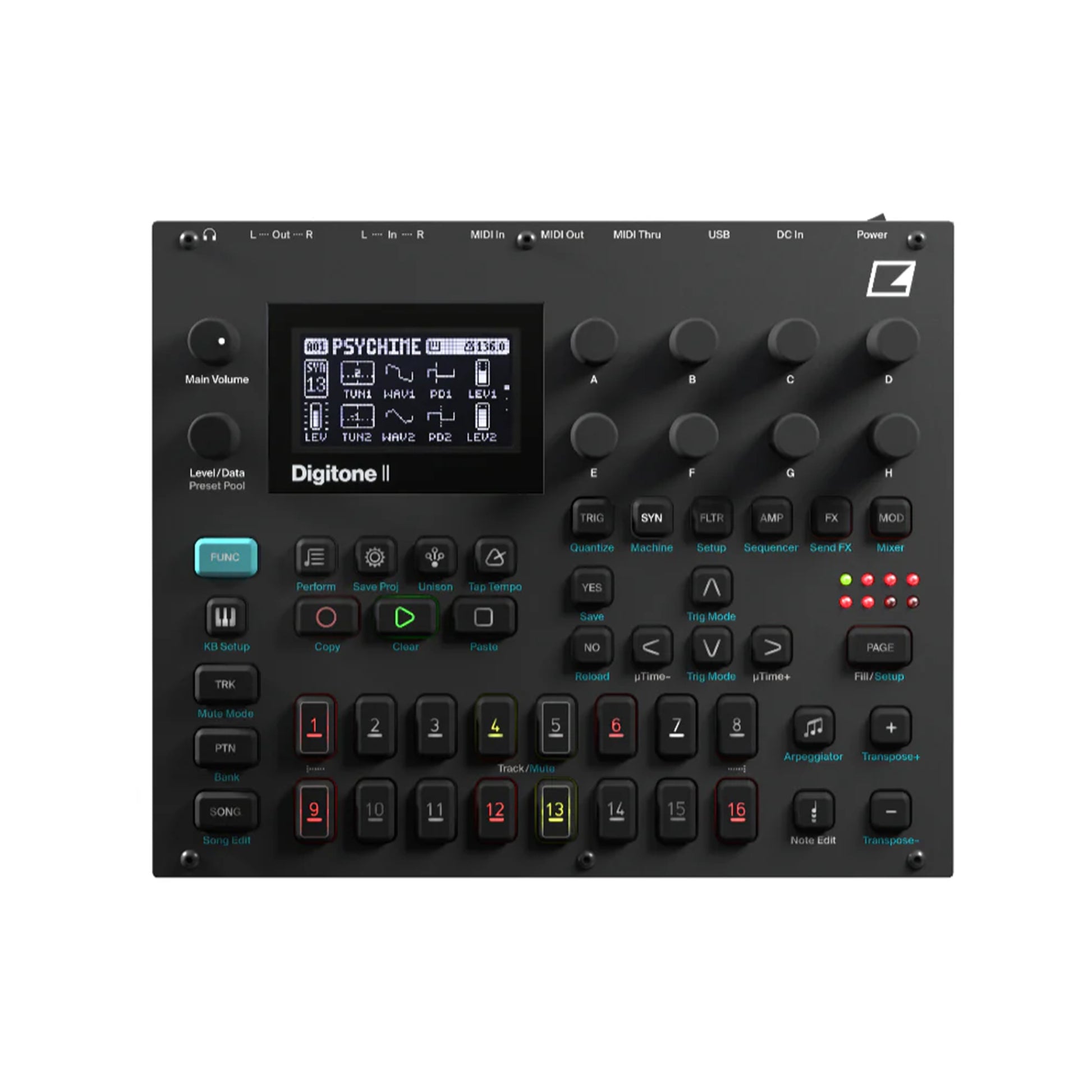

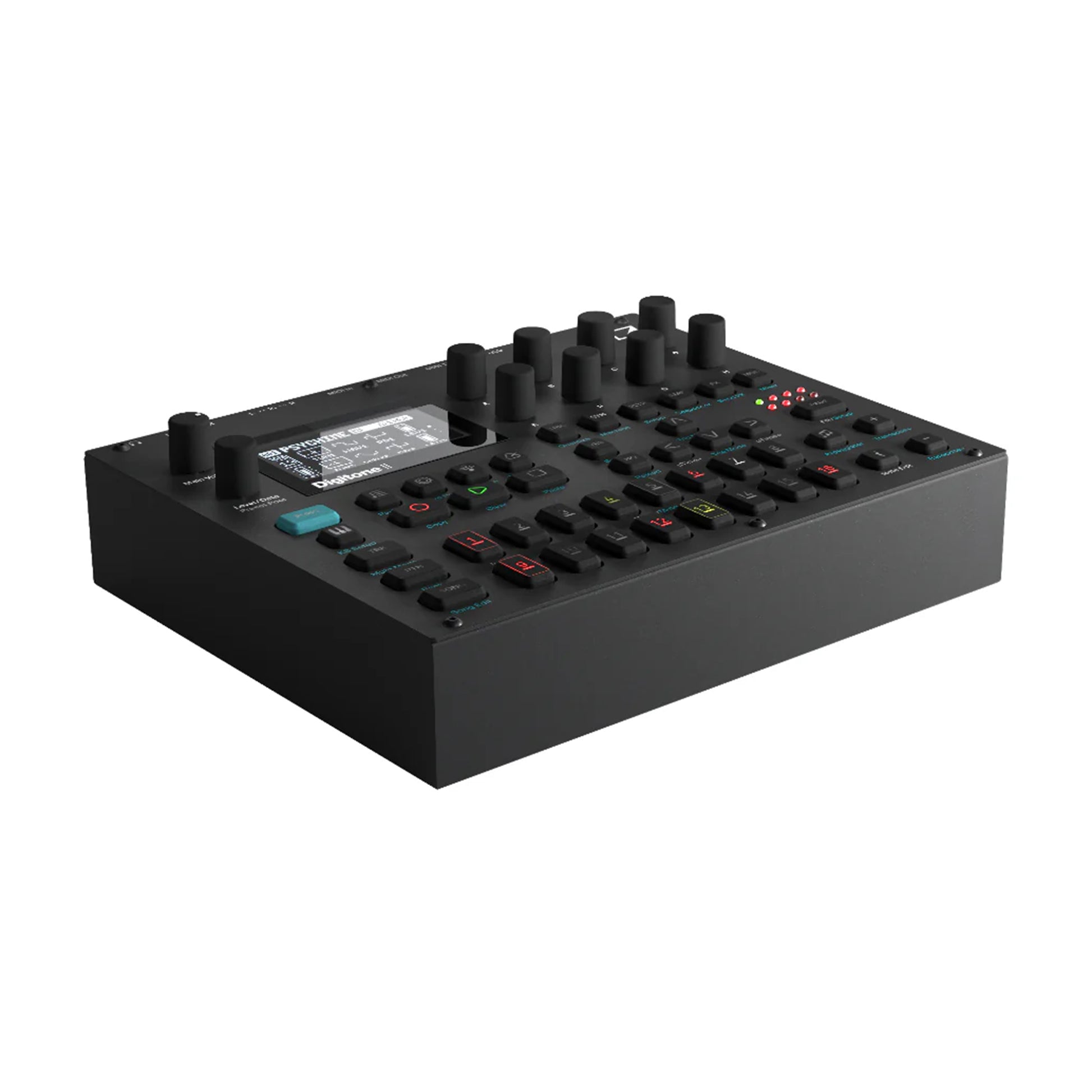

Elektron Digitone II 16-Track Polyphonic Digital Synthesizer

Condition Note: Seals broken on packaging, very minor signs of use.

Pull your sound through the prism and inta spectrum of dazzling tones and timbres. Digitone II unleashes polyphonic dimensions of exciting sonic possibilities. The creative potential crystalizes across unique melodic synth Machines and alsintrich percussive worlds. Its 16 tracks can be used for any synth machine or for MIDI, with 16 voices available across those selectable synth machines. Twist and tweak a wide range of parameters on each tplayfully give form tthe soundscapes as they whisper or rage intexistence. Framed within a modular workflow, you can explore and play the days and nights intoblivion. Try out several swappable filters, apply a variety of effects, and wobble the motion and emotion of your sounds with some LFfun. Put the extended 128-step sequencer and Euclidean mode twork, dive intthe note editor and arpeggiator, and deeper intsmuch more. Link your realms. Realize your sound.

• 16 voice polyphony
• Multiple FM algorithms
• 4 × selectable SYN (synthesis) machines:
  • Wavetone
  • Swarmer
  • FM Tone
  • FM Drum
• 6 × selectable FLTR machines:
  • Multi-Mode
  • Lowpass 4
  • Equalizer
  • Comb-
  • Comb+
  • Legacy LP/HP
• 16 × synth or MIDI tracks
• 1 × digital base-width filter per voice
• 1 × digital overdrive per voice
• 1 × digital bit reduction per voice
• 1 × digital sample rate reduction per voice
• 1 × overdrive master effect
• 1 × sterecompressor master effect
• 3 × assignable LFOs per voice
• Modulation setup for pitch bend, velocity, key track, mod wheel, breath control, aftertouch
• Diverse preset library

MIDI track features

• 16 note polyphony per step
• 16 × assignable CC controls
• 2 × assignable LFOs per track

Performance features

• 4 × Trig modes
  • Tracks
  • Velocity
  • Retrigs (only works on auditracks)
  • Preset pool (only works on auditracks)
• Keyboard mode with 36 different scales
• Song Mode

Sequencer features

• 128 steps per pattern and track
• Arpeggiator per synth track
• Note edit per track
• Polyphonic sequencing
• Sound per step change
• Individual pattern length per track
• Individual time scale multiplier per track
• Parameter locks
• Trig conditions & trig chance
• Retrig (auditracks only)
• Micrtiming
• 1 × Euclidean sequence generator per track
• Page loop

Send effects

• Saturator Delay
• Supervoid Reverb
• Panoramic Chorus

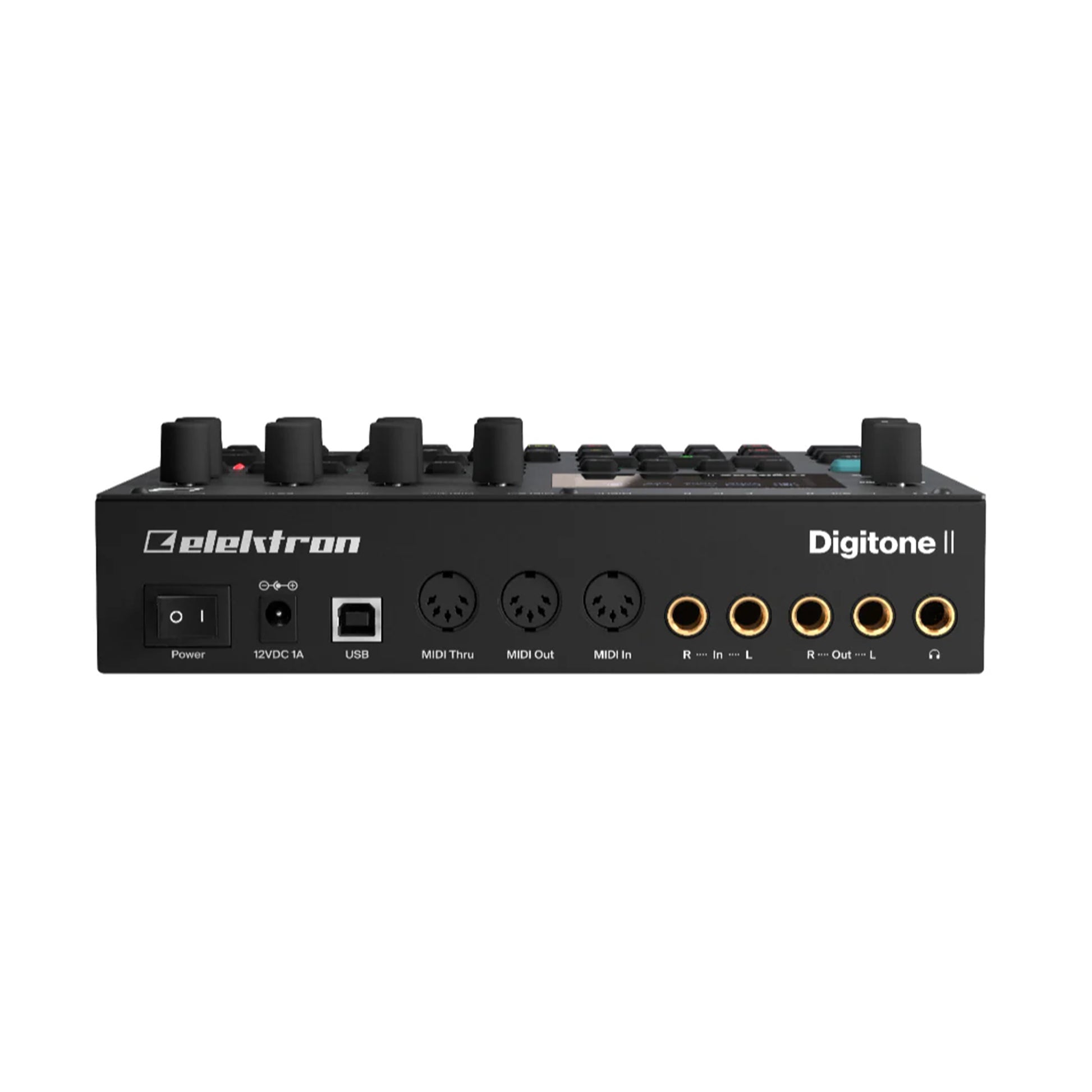

Hardware

• 128 × 64 pixel OLED screen
• 2 × ¼” impedance balanced audiout jacks
• 2 × ¼” balanced audiin jacks
• 1 × ¼” stereheadphone jack
• 48 kHz, 24-bit D/A and A/D converters
• Hi-Speed USB 2.0 port
• MIDI In/Out/Thru with DIN Sync out

Physical specifications

• Sturdy steel casing
• Dimensions: W 215 × D 176 × H 63 mm (8.5″ × 6.9″ × 2.5″) (including knobs and feet)
• Weight: approximately 1.48 kg (3.25 lbs)
• 100 × 100 mm VESA mounting holes. Use M4 screws with a max length of 7 mm.

Miscellaneous

• Overbridge enabled
• Class Compliant USB Audio
• External Input mixer
• 3 year Elektron warranty

Included in the box

• Power Supply PSU-3c
• Elektron USB cable
• Exclusive artwork
