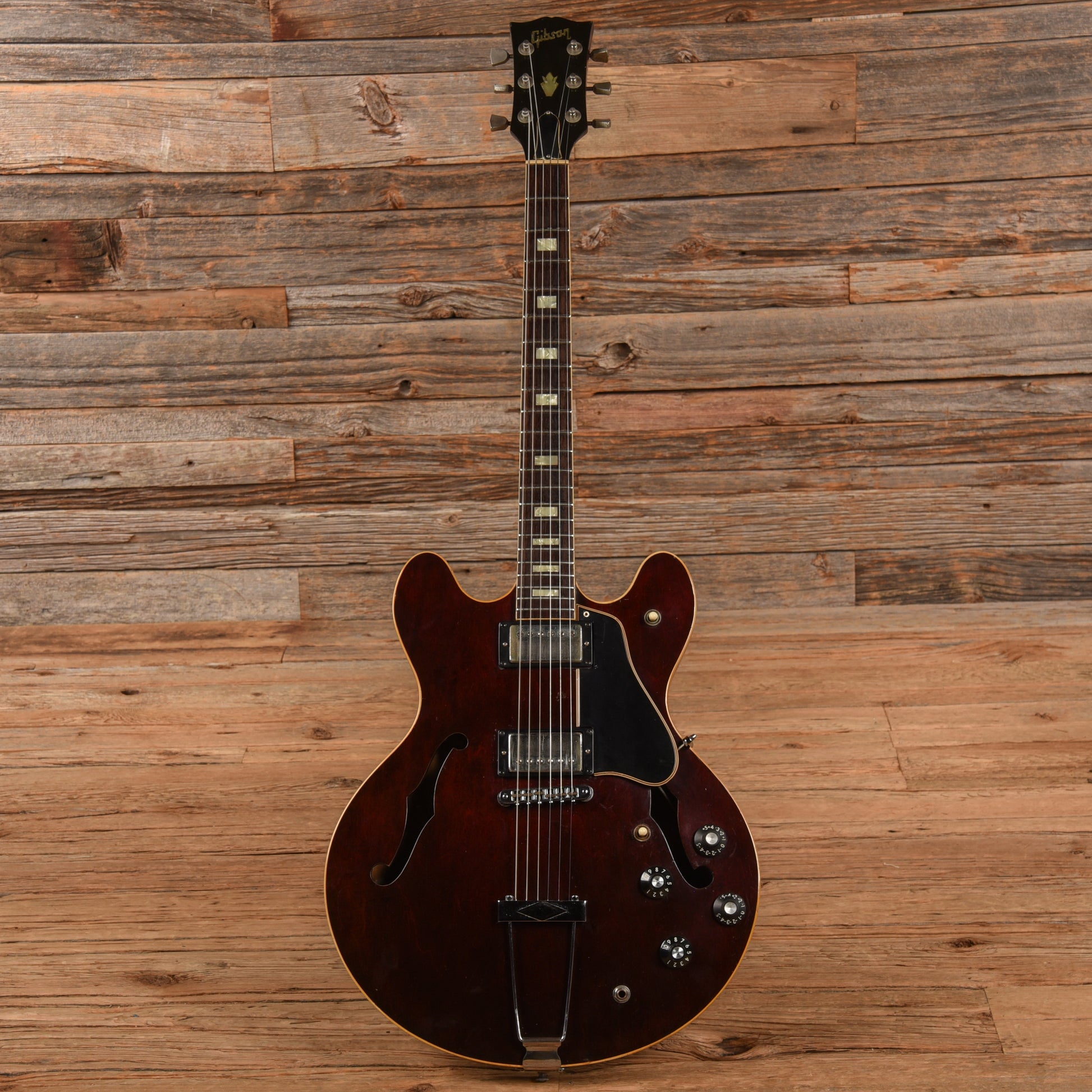

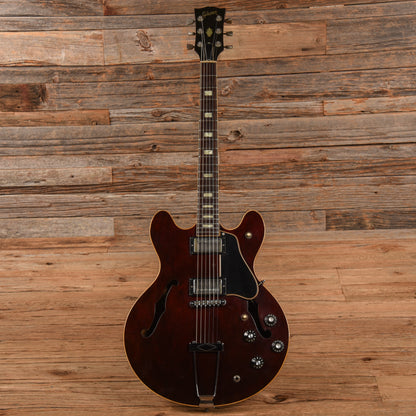

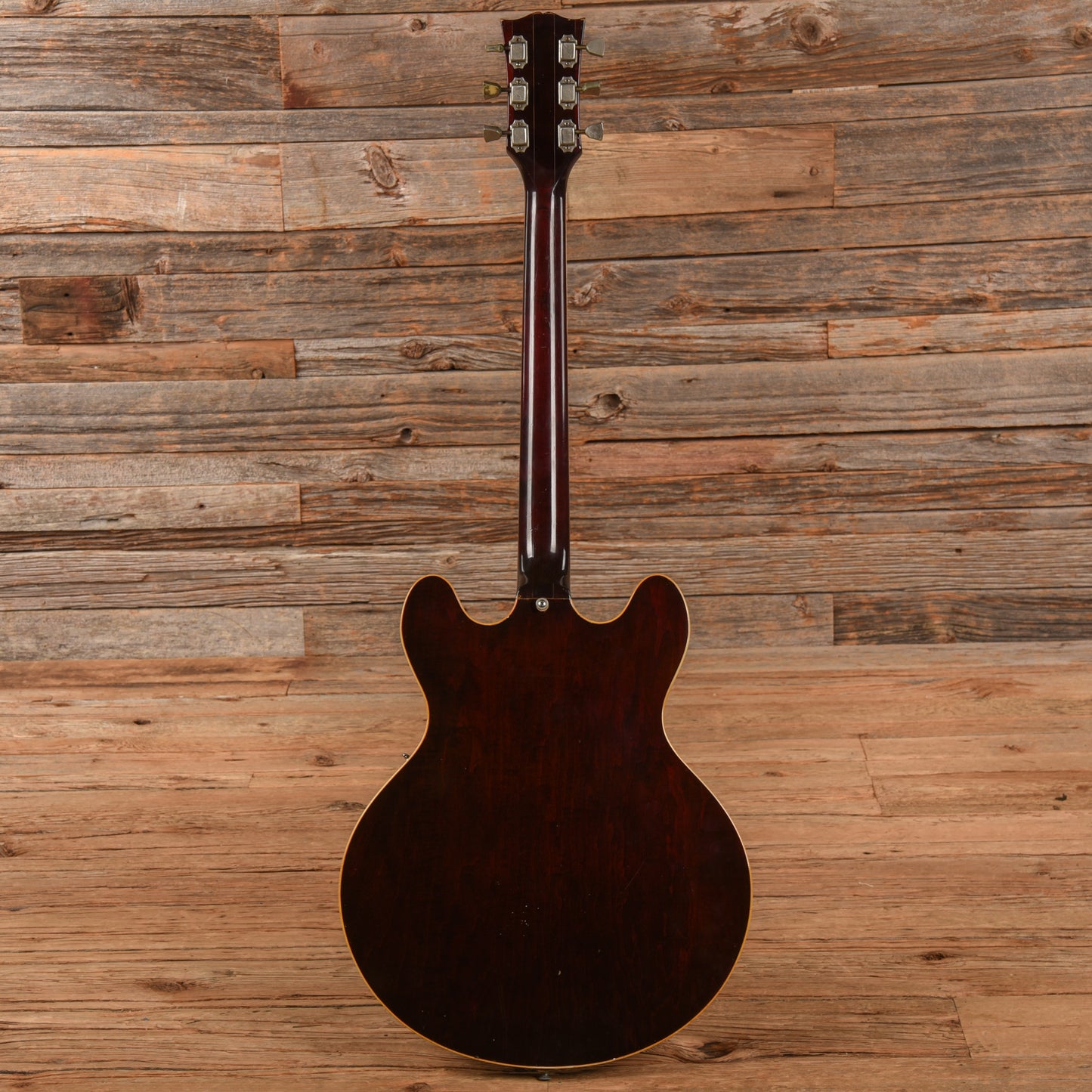

Gibson ES-335 Wine Red 1978

Gibson ES-335 Wine Red 1978

Regular price $3,320.00
Regular price $3,495.00 Sale price $3,320.00

Serial Number: 70668041

Weight: 8lbs 3oz

In Store Now!
  • This Item Ships Free!
  • Hassle Free Returns

Description

The following specs were carefully collected and recorded by a skilled technician. For a more detailed description and questions regarding sound, feel, or cosmetic condition, please visit our Lincoln Avenue showroom or call to speak to one of our Used and Vintage experts.

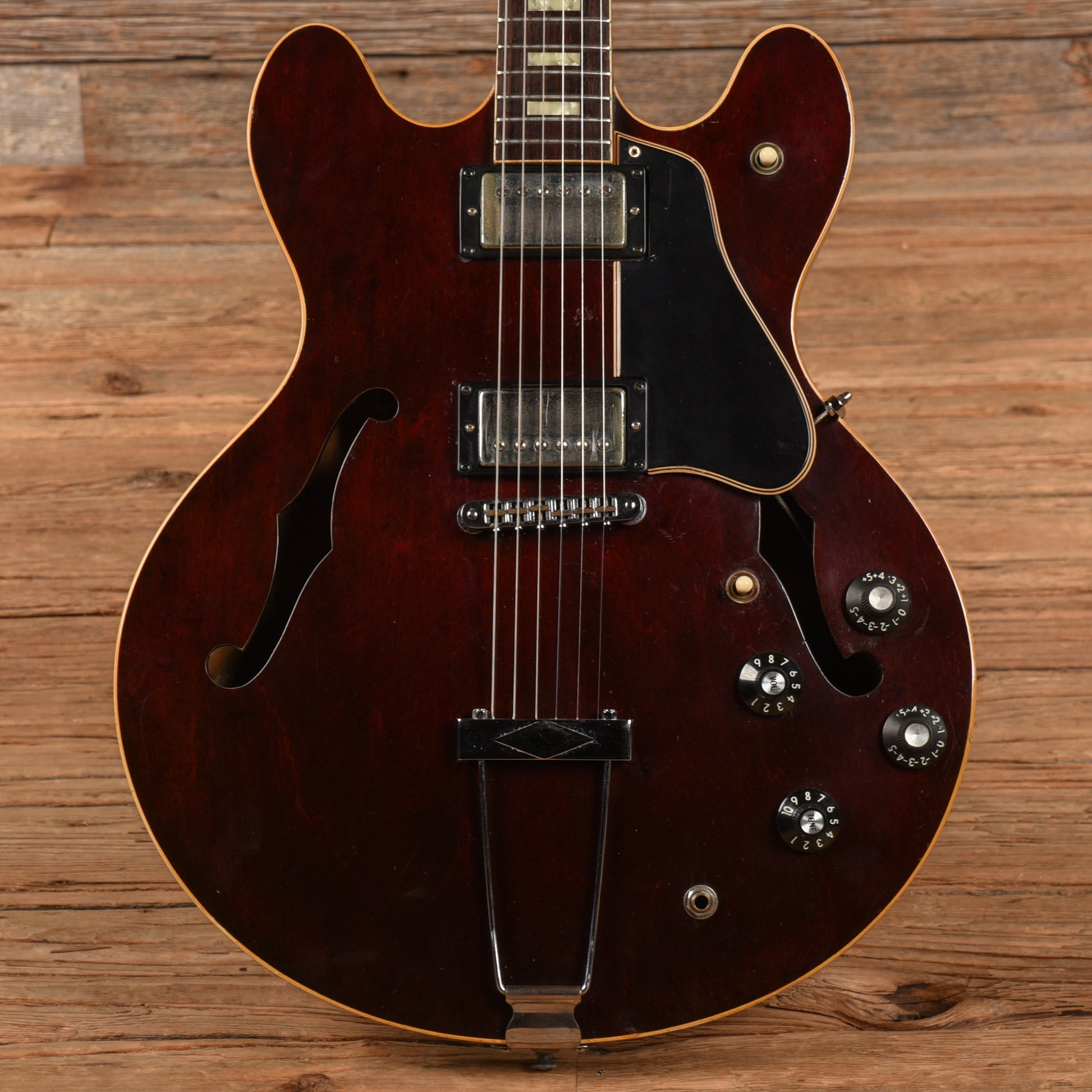

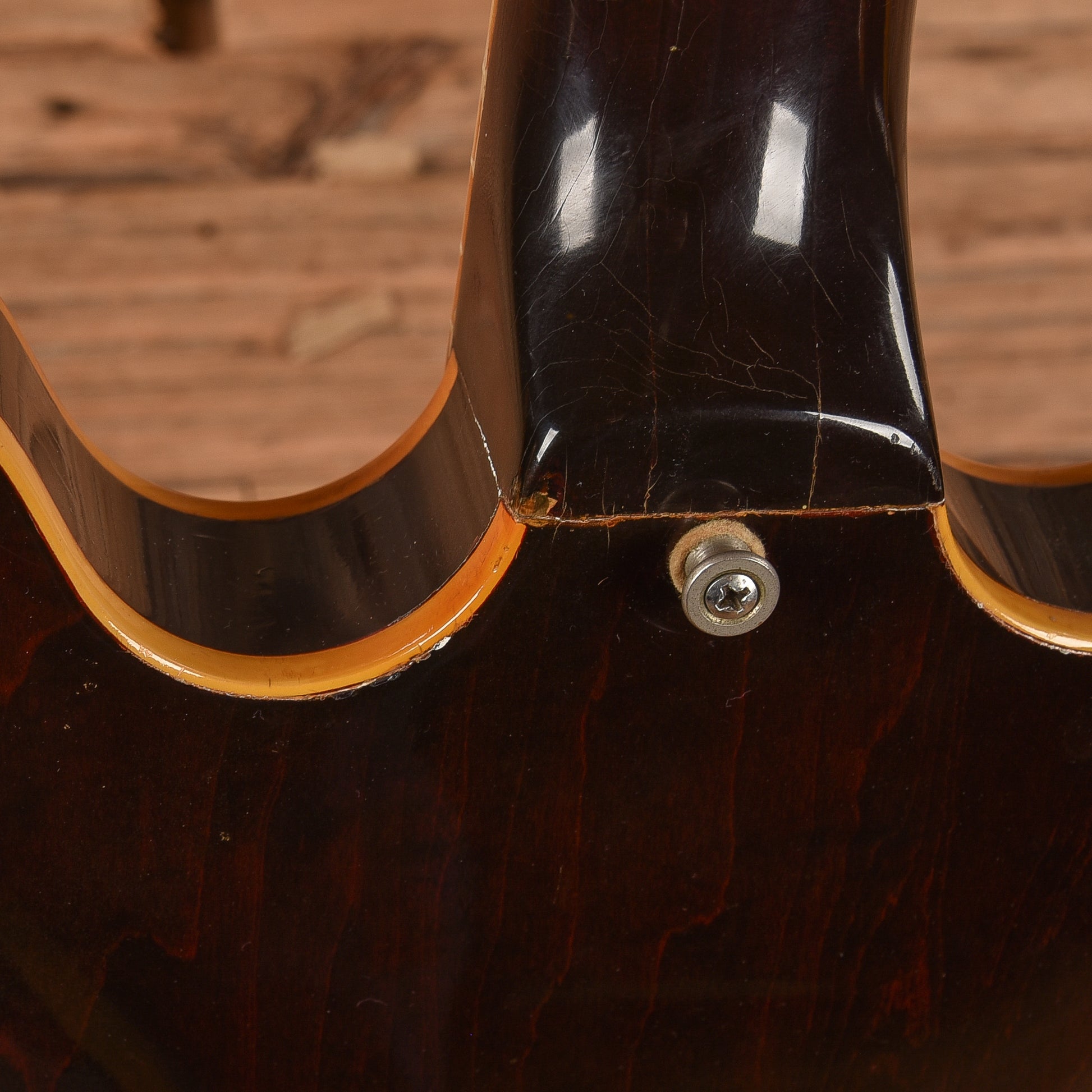

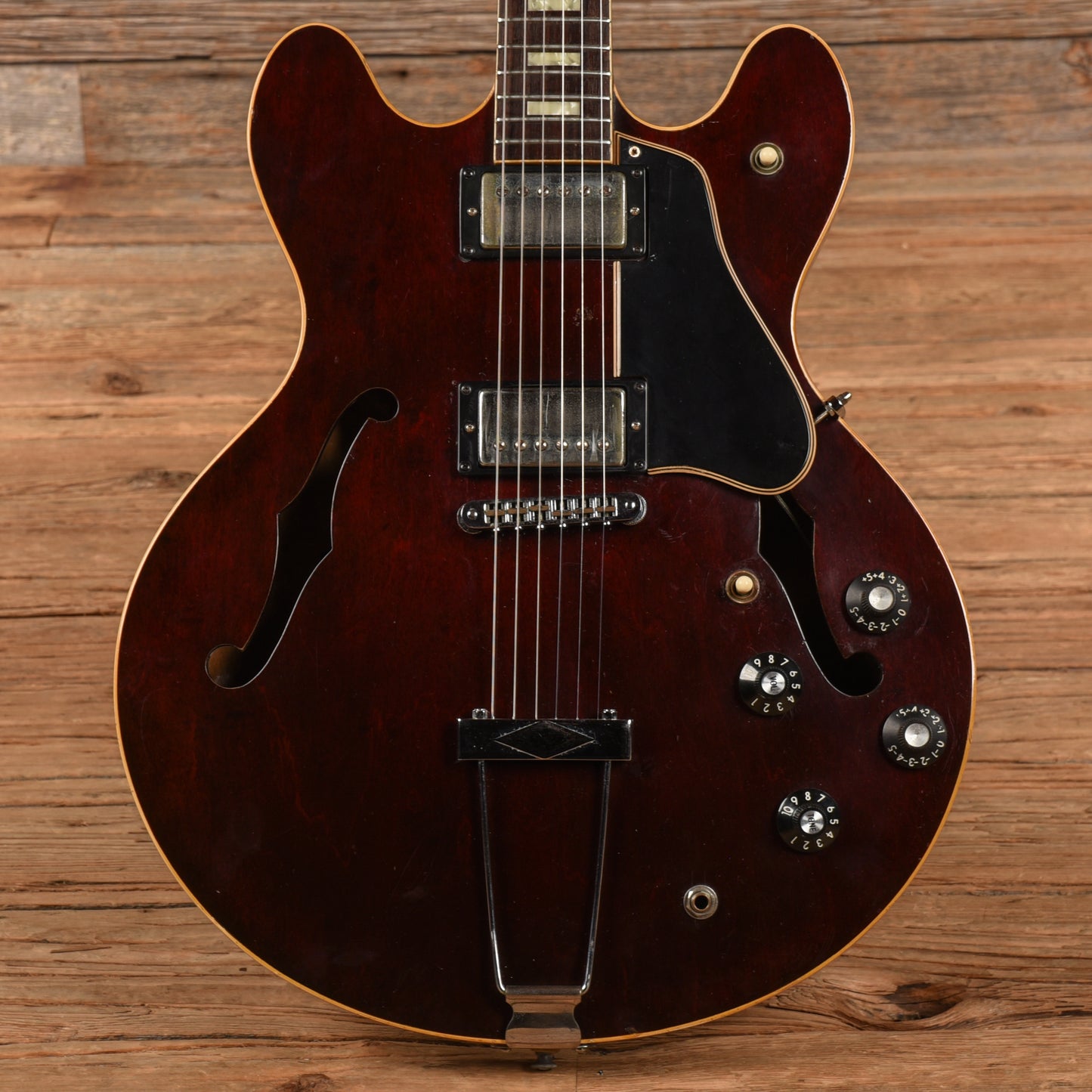

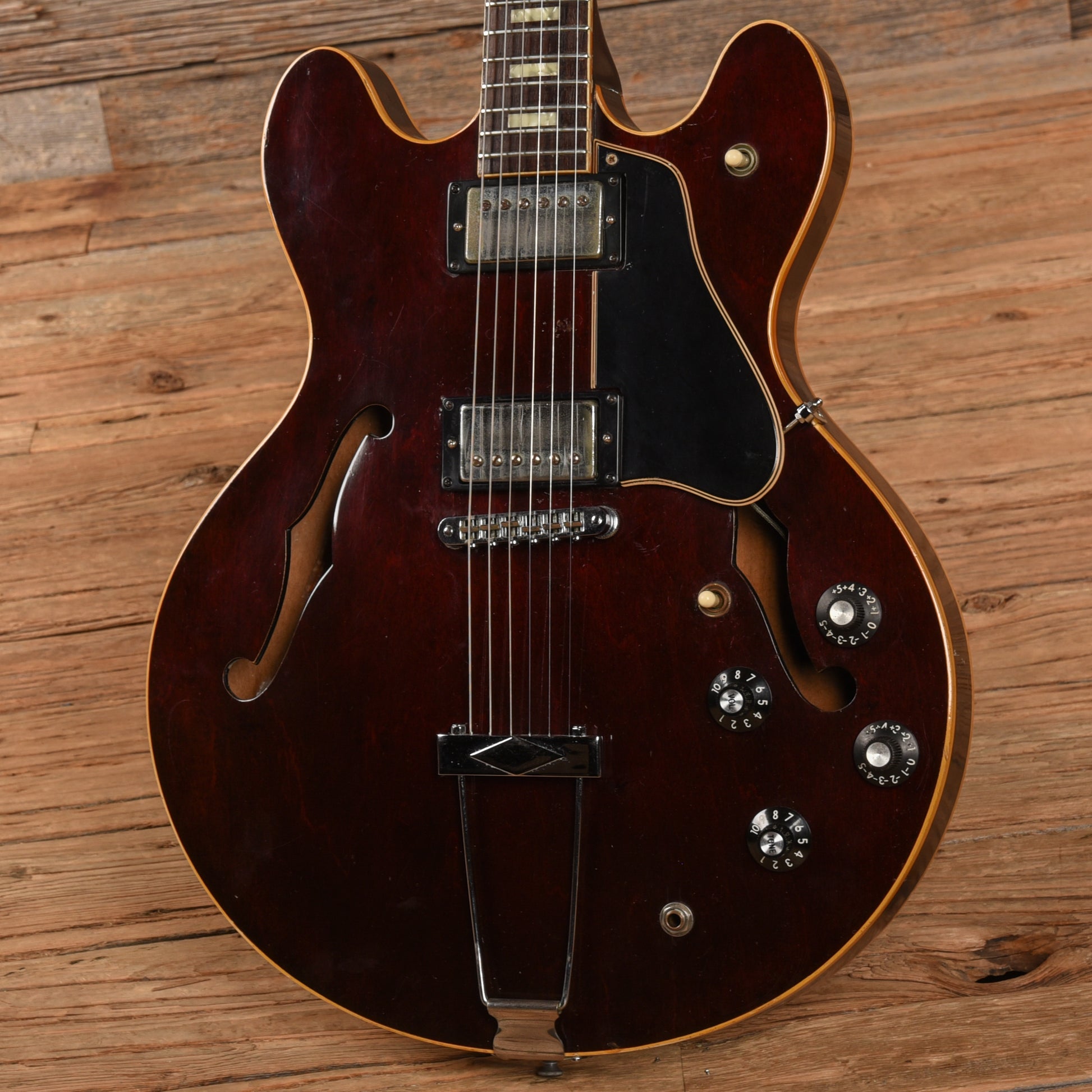

Finish Details: The body and neck has been over-sprayed. At some point, a floating pickup has placed in between the bridge and neck humbuckers. Because of this, the finish was effected and drop fill was used to cover the wear spots leaving two convex circles between the pickups. In addition to this, because of a neck reset, the finish in and around the neck pocket was buffed and has aged differently causing minor discoloration.
Body Material: Maple
Neck Material: Maple
Fingerboard Material: Rosewood
Neck Profile: "C" Shape
Neck Thickness (IN): 1st. Fret: .77" & 12th. Fret: .95"
Fingerboard Radius: 12.00"
Nut Width: 1-11/16"
Scale Length: 24 3/4"

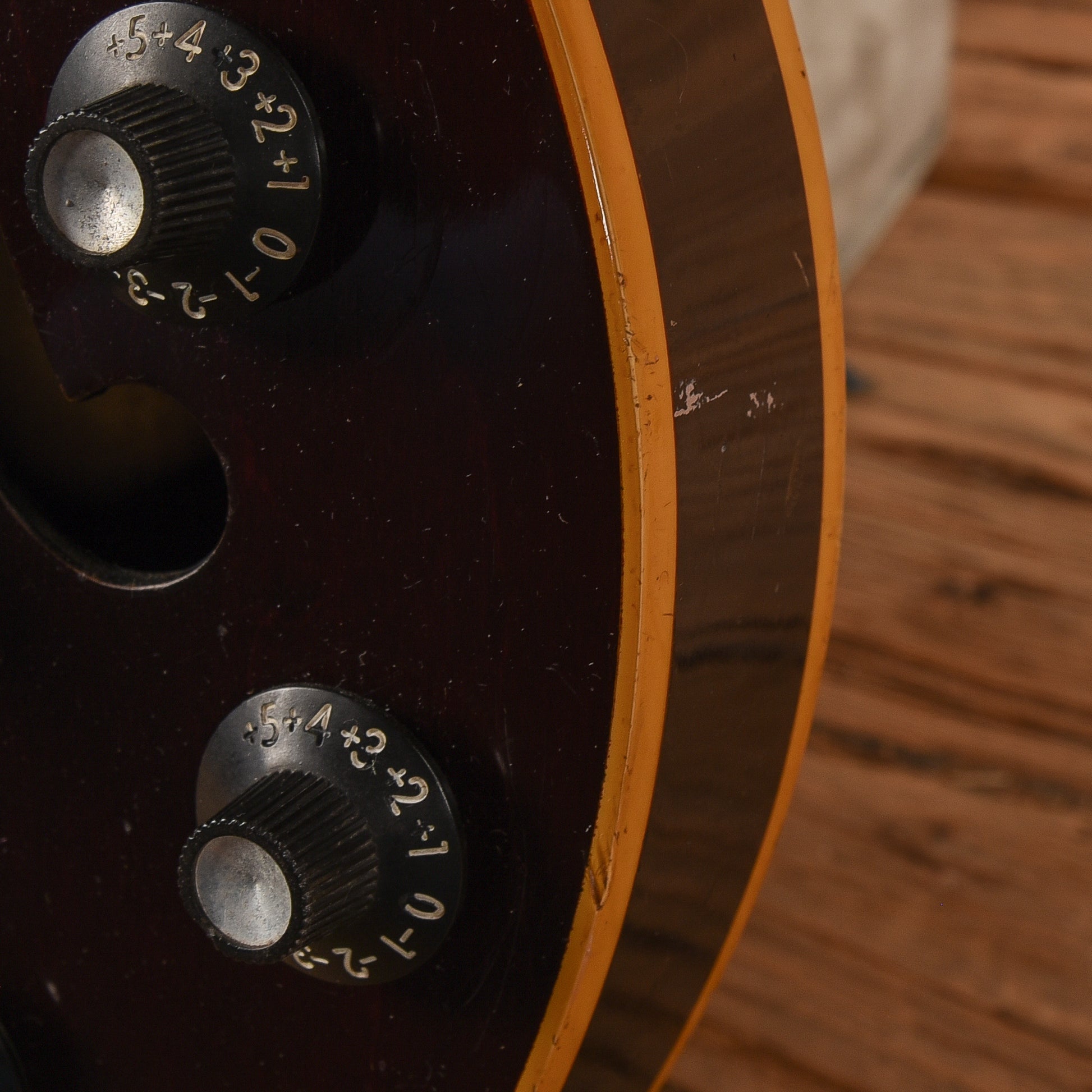

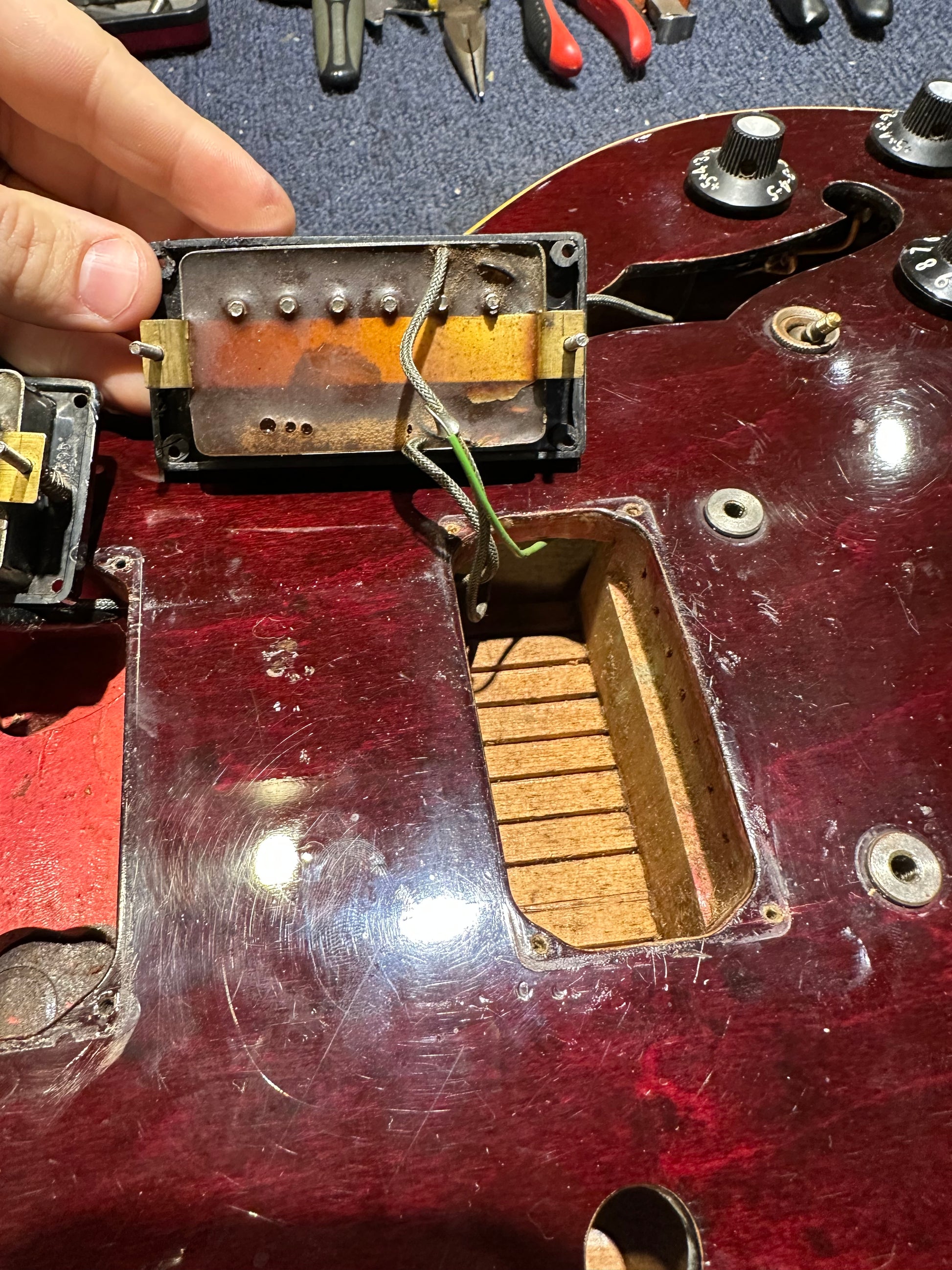

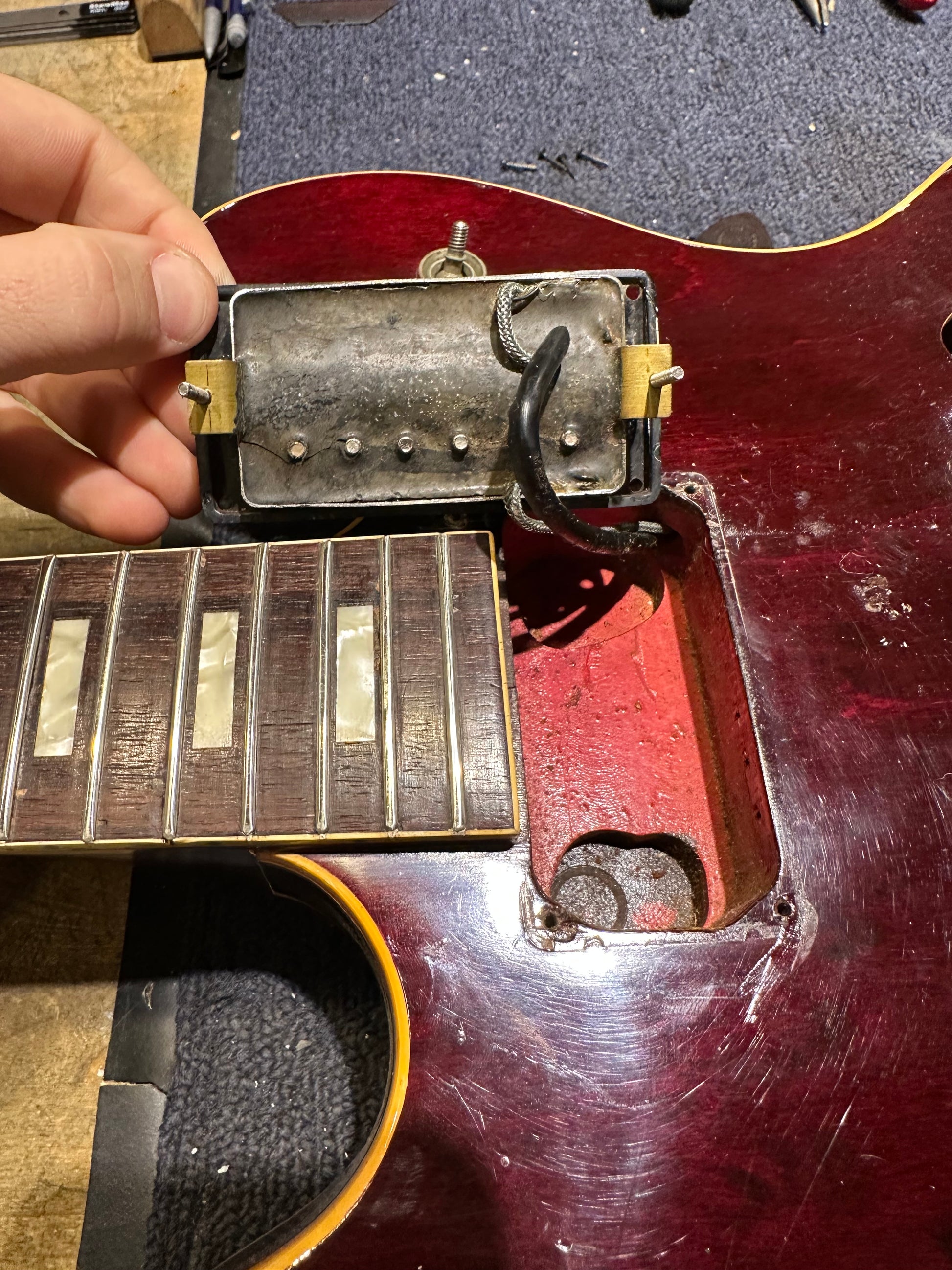

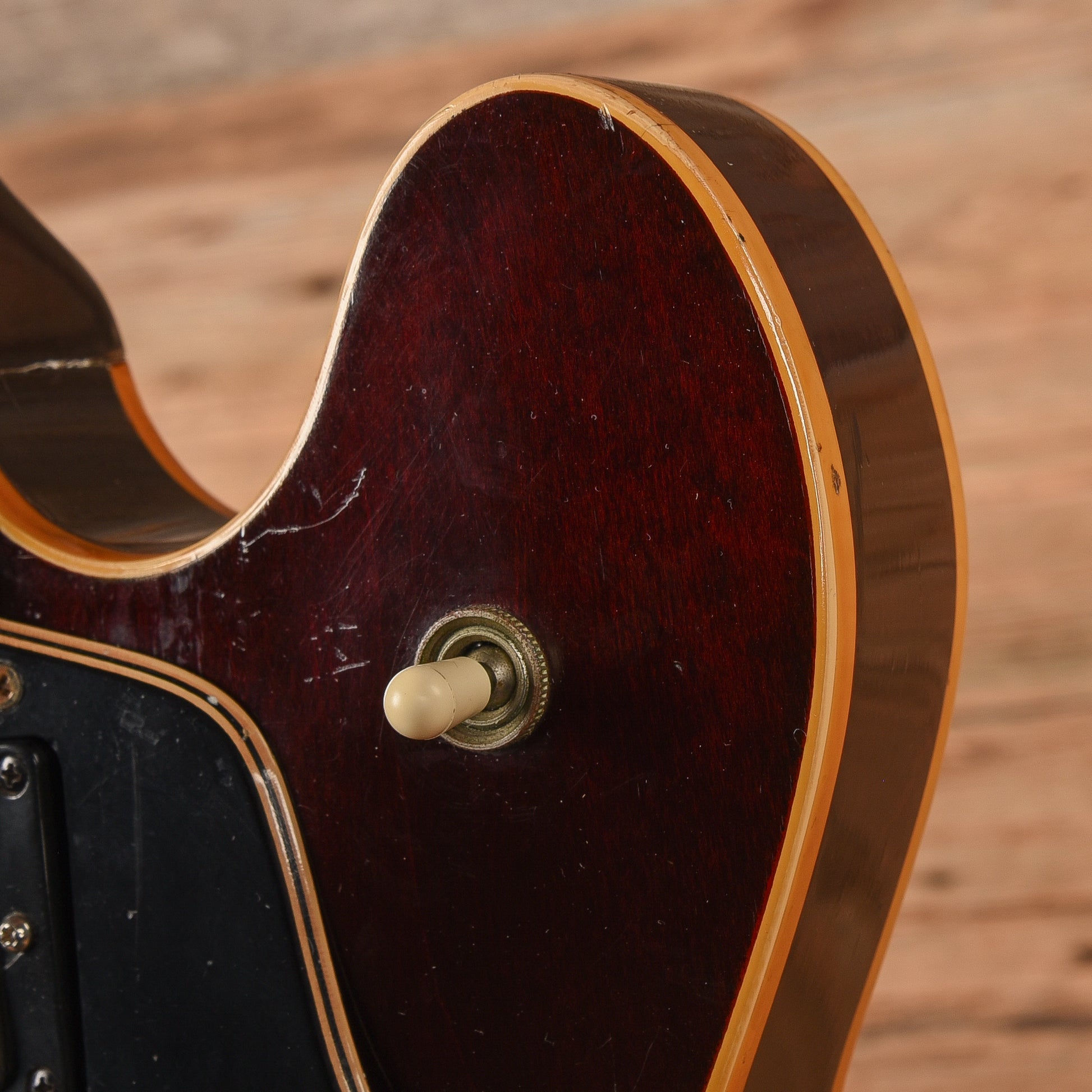

Electronics: Original Gibson "Tar-Back" humbuckers with a three-position pickup selector switch, a two position coil split switch, two volume pots, and two tone pots. A 1977 code is visible on the bridge tone pot and the other are covered by solder.
Pickup Measurements: Bridge: 8.3k Neck: 8.1k

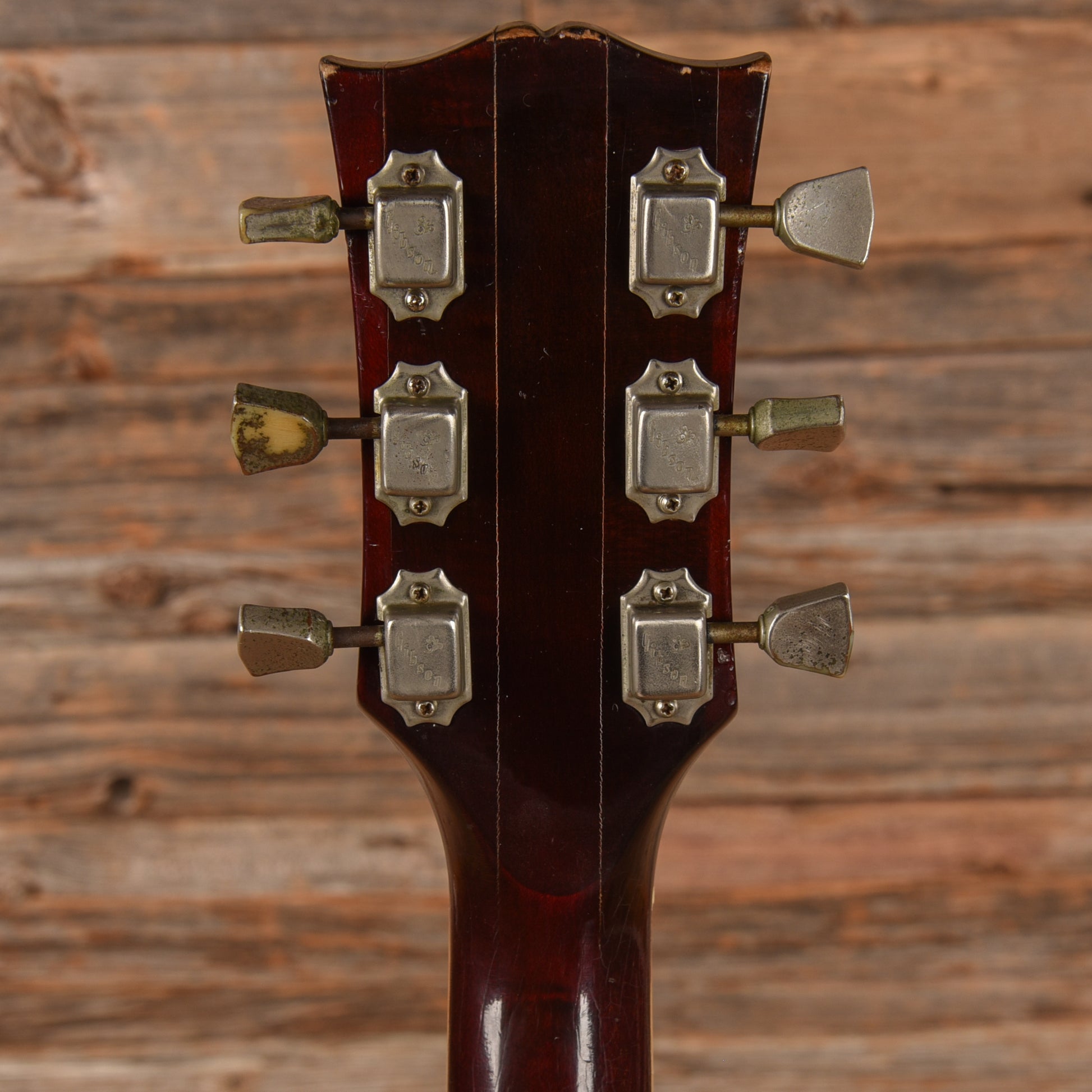

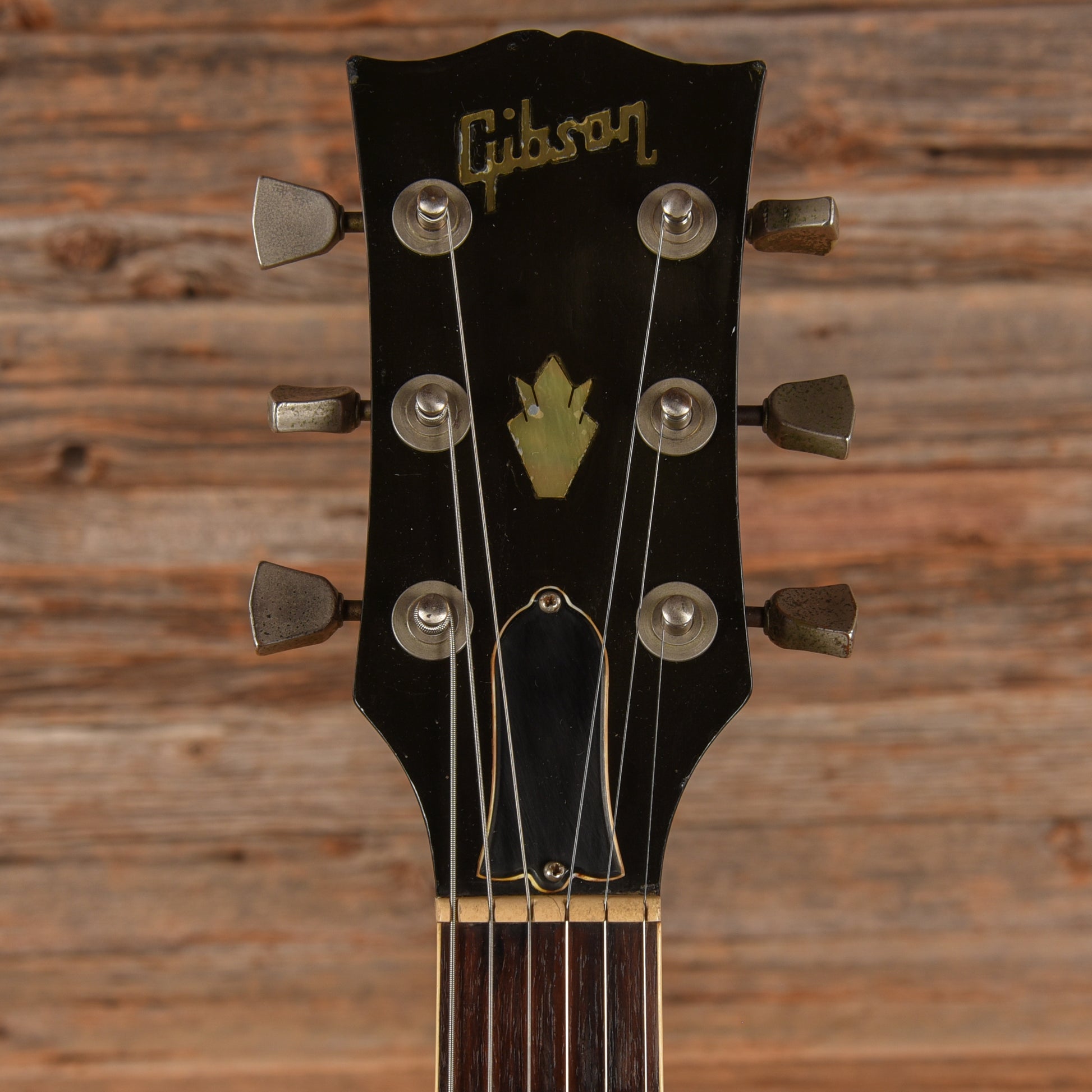

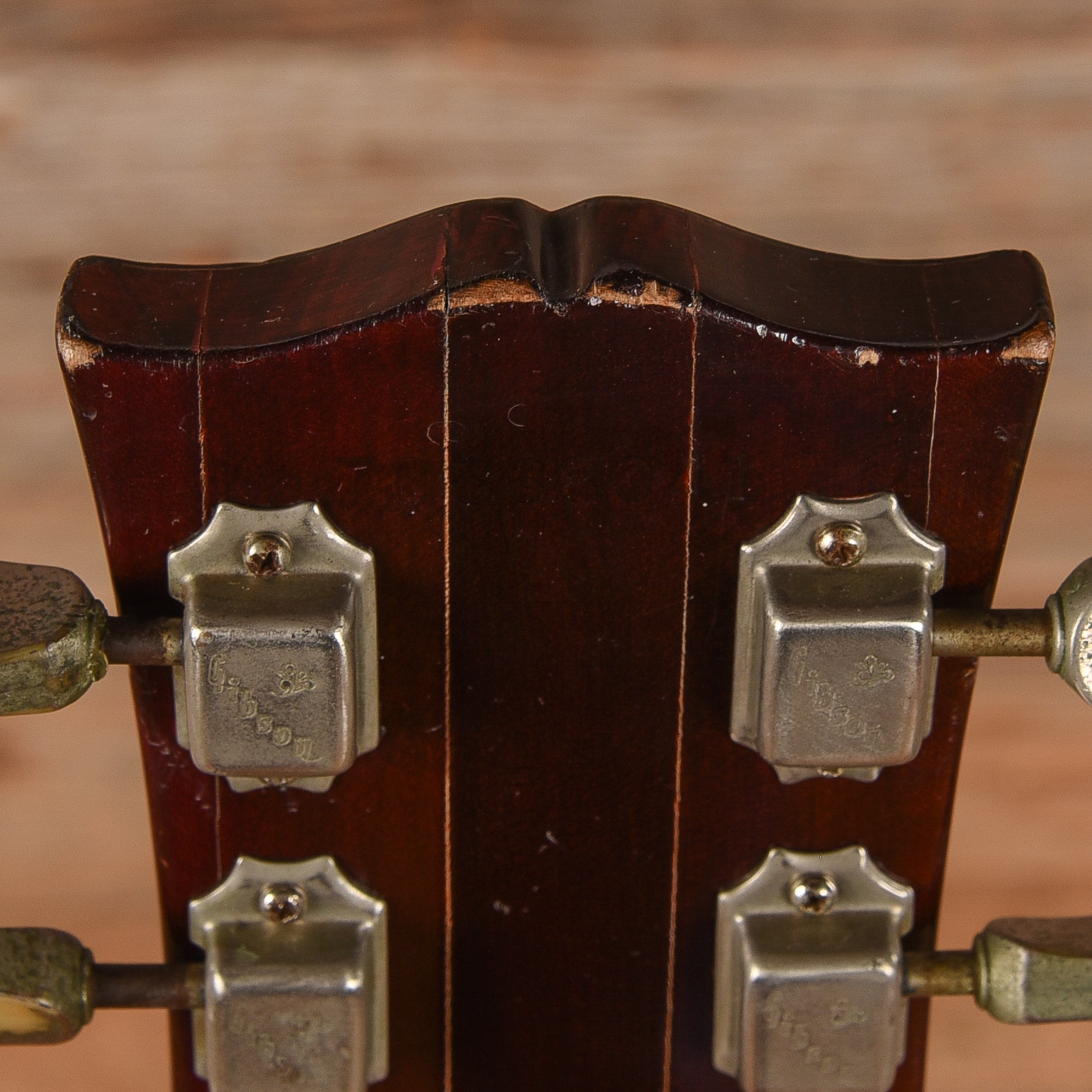

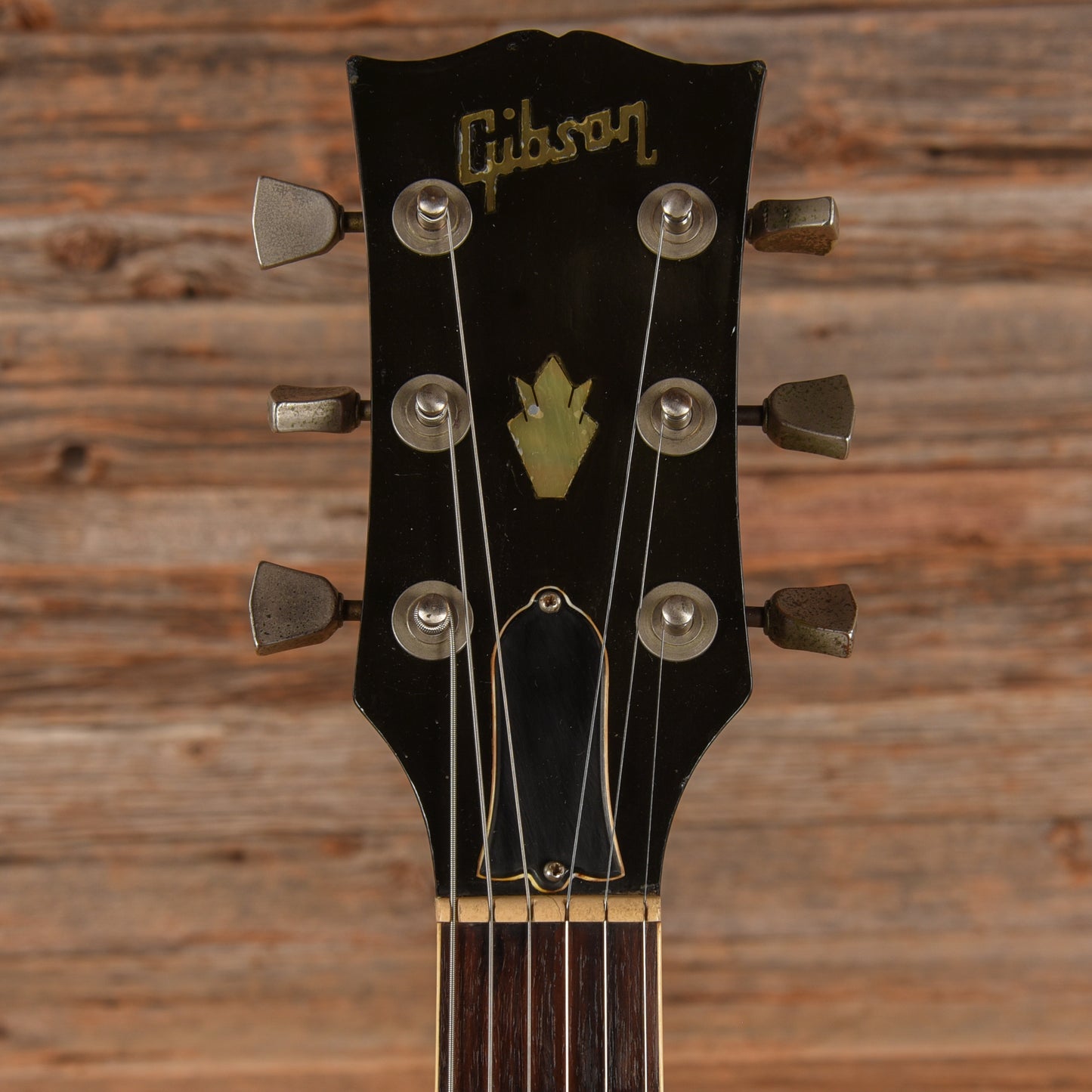

Hardware: Original tuners, bridge, and tail-piece. A shim has been placed under the nut.
Weight: 8lbs 3oz
Modifications/Repairs: -Complete over-spray. -Refret. -Binding repair. -Drop fill on top of the body between the humbuckers due to a previous modification. -Touched up solder joints.

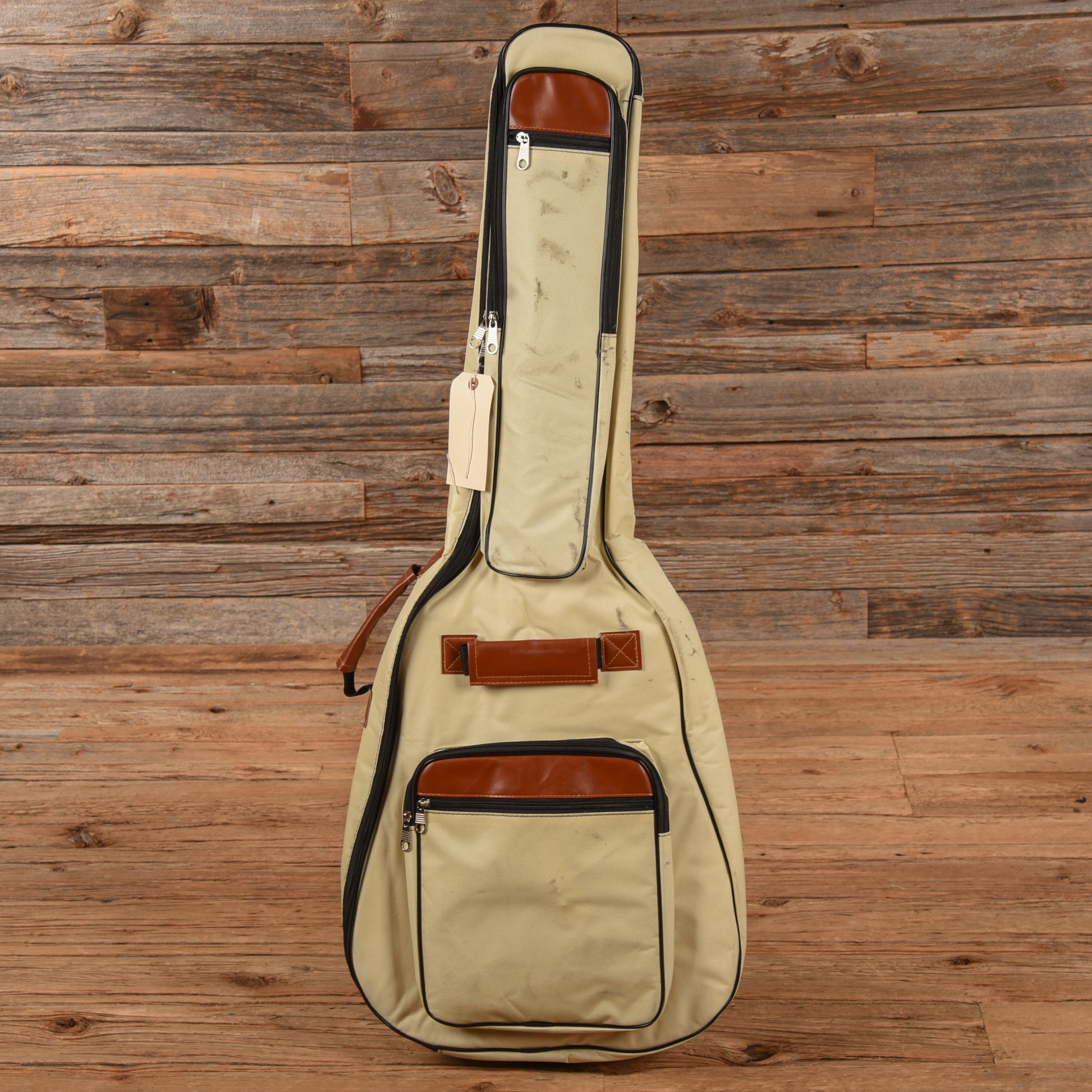

Case Details: Gig Bag

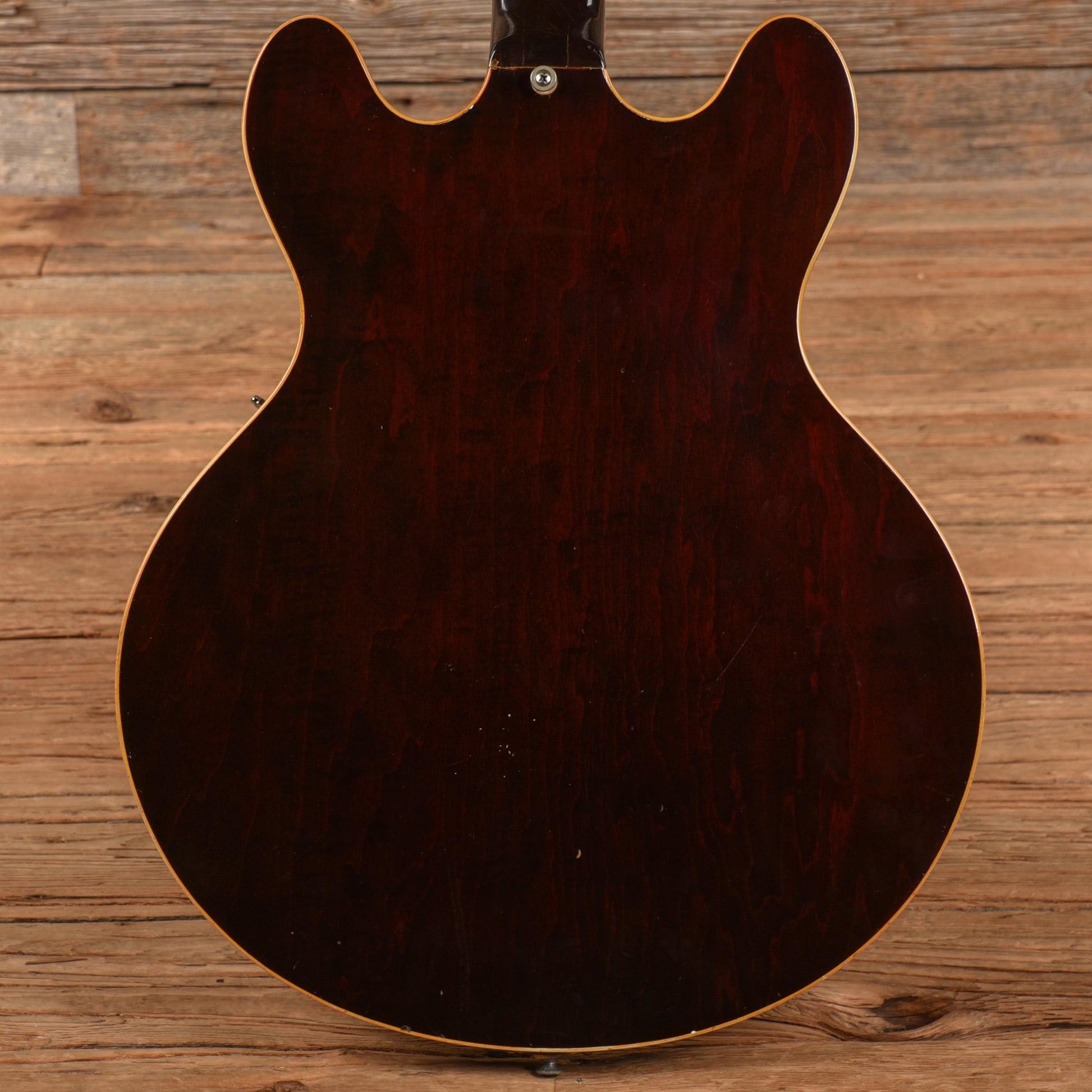

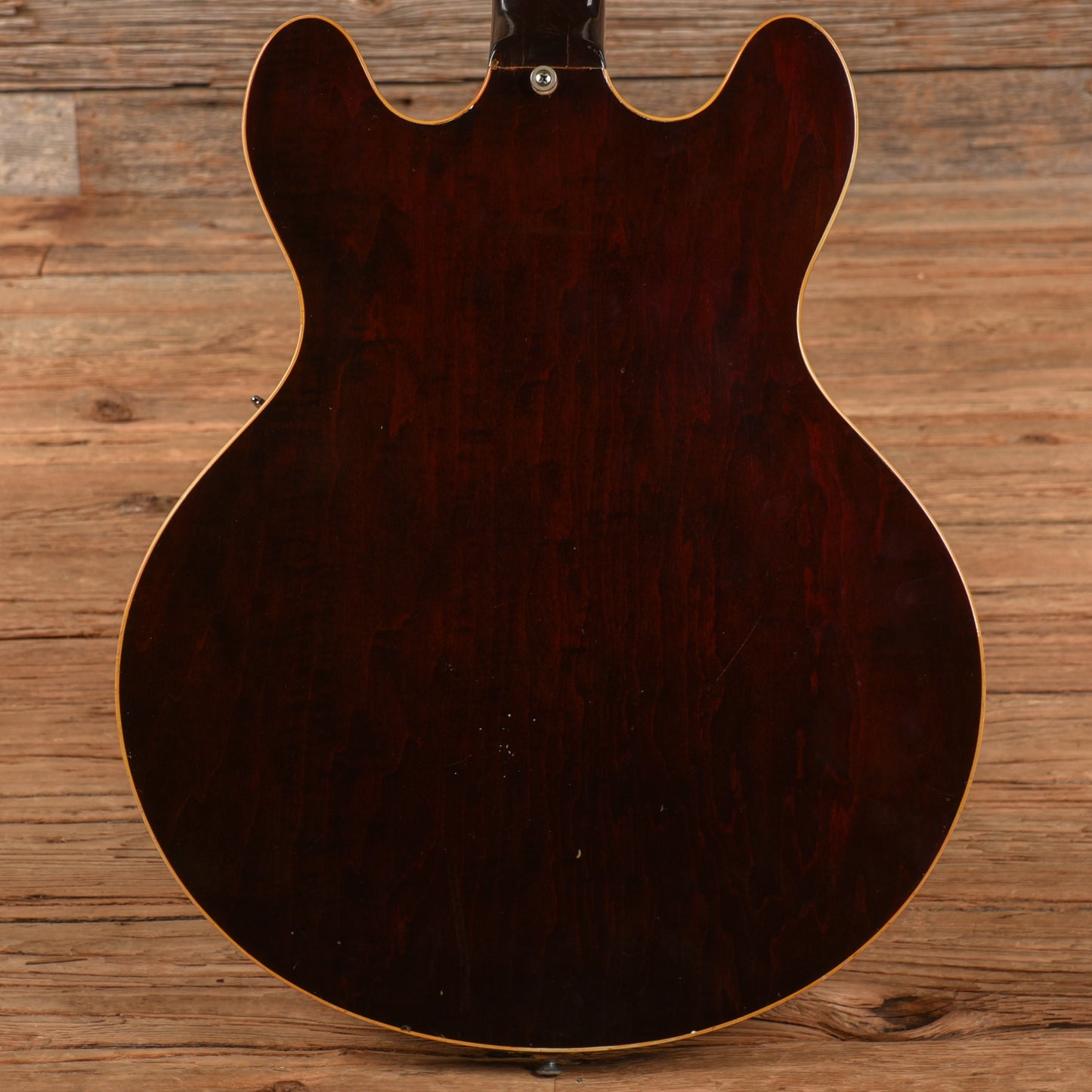

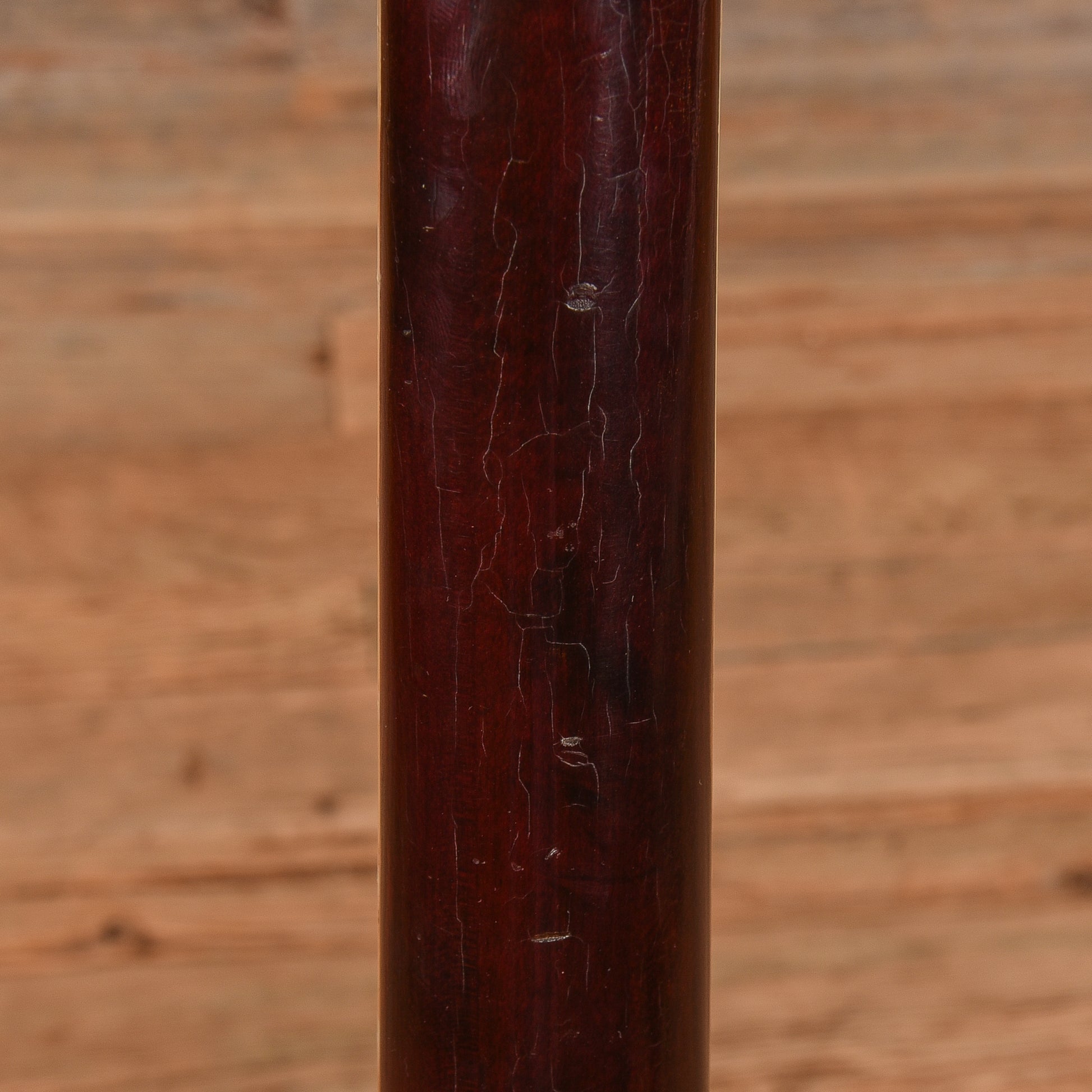

Cosmetic Condition: Guitar is in good cosmetic condition with considerable wear. There are dings, dents, scratches, and checking throughout. The guitar has been completely over-sprayed and drop fill has been applied in between the humbuckers from a previous modification. There is discoloration in and around the neck pocket where the finish was buffed from a neck reset. Because of the process that was used to refret this particular guitar, parts of the binding in line with the frets were sawed through. Due to this technique, a hardened plastic was used to fill those slots in the binding.
Serial Number: 70668041
Tech Notes: This ES-335 plays well with medium action. The frets are thin and show moderate wear. It is being dated to 1978 based on the serial number.
