Description
Description

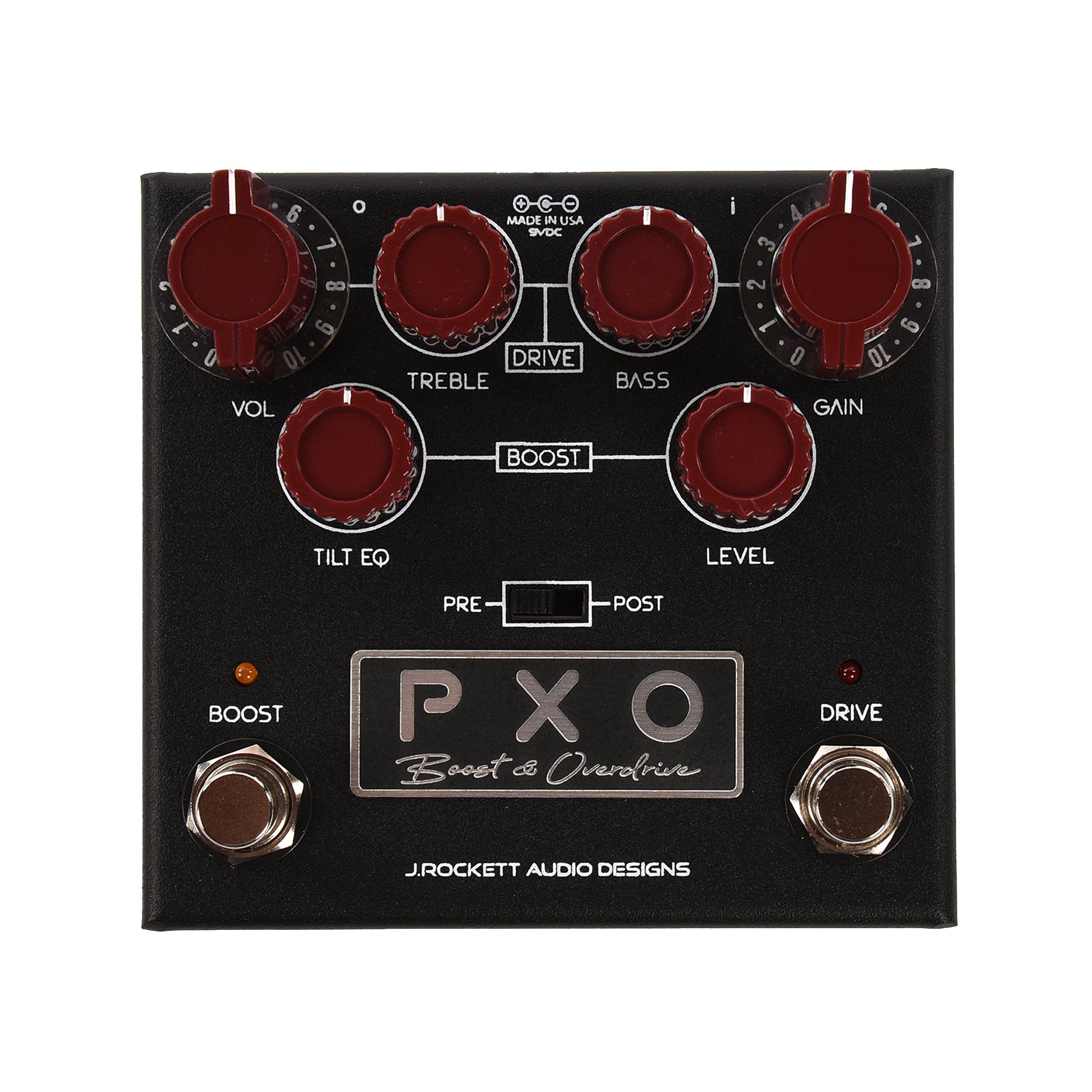

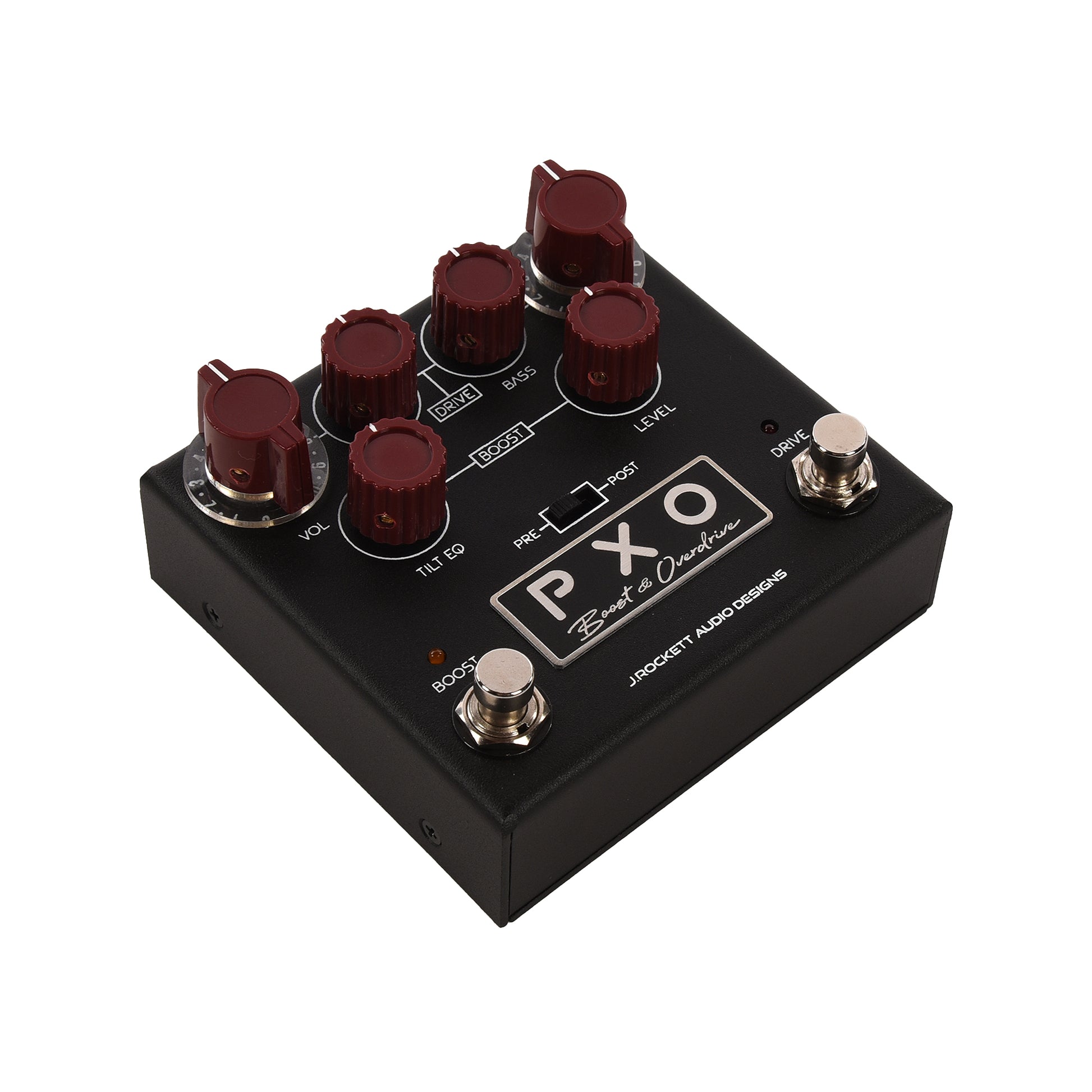

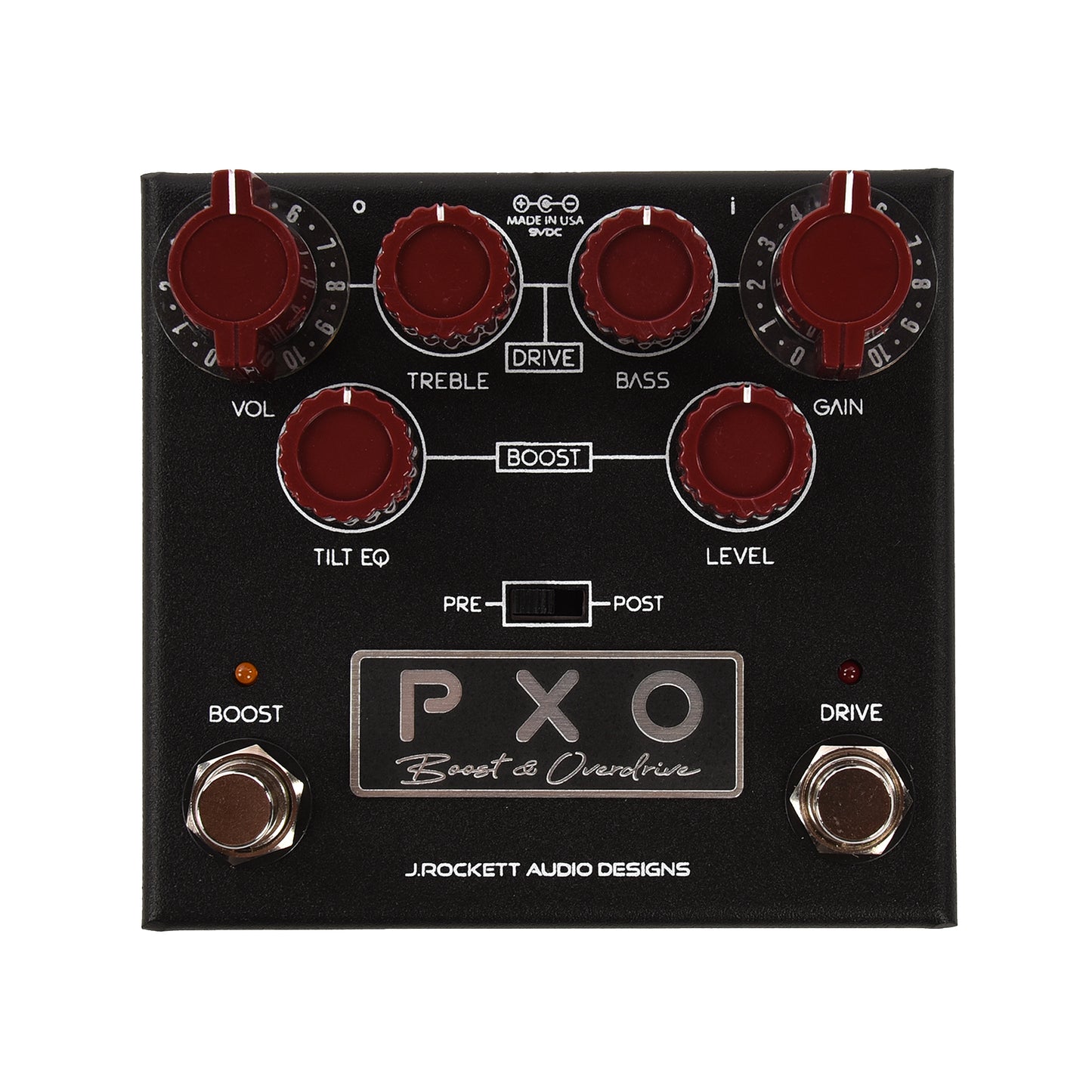

The PXO was created as a live or studio tool. When we sent Phil the overdrive sample he found that it saved him in backline situations and provided him a drive that plays well with others.
The PXO is an overdrive/boost where you can select pre or post giving you variety in how you want to boost, EQ and overdrive. We have provided standard controls on the overdrive side such as Volume/Gain/Overdrive and EQ but on the boost side you have a separate Tilt EQ that allows you to EQ with simplicity.
You can experiment by cascading in a pre or post situation and experiment from there. The PXO has a lush, thick feel to the bottom end and a smooth top end that begs you to dig into the note.
9V/DC Power Input, 28mA Draw. (Please use a negative tip 9V power supply only). DO NOT USE ANY OTHER VOLTAGE OR POLARITY. Please reference our JUICE power supply as it is the perfect power supply for our pedals.
OVERDRIVE SECTION
VOLUME - It may sound simple but output is a key feature to getting your drive set properly. Gain and feel are all associated with the gain structure, how much volume from the pedal hits the front of the amp, how much initial gain does the pedal provide, does it pair well with the amp in terms of EQ. We always advise to set your amp to where it starts to feel better than it sounds (hair) and then add a touch of OD. You can then feather in more or less gain to taste.
- TREBLE - The treble control simply controls the top end of the overdrive but never loses clarity
- BASS - The Bass control allows you to increase or decrease the bottom end.
- GAIN - The Gain control increases or decreases the overall gain but is interactive with the volume control.
BOOST SECTION
- TILT EQ - The tilt EQ is a simple way to achieve robust EQing. Turn the knob clockwise and you will increase treble but reduce bass. Turn the knob counterclockwise and you will increase the bass but reduce the treble. The brilliant thing about a tilt EQ is that it never loses clarity. When cascading the Boost and Overdrive you can get very creative with the separate bass and treble controls from the drive side and the Tilt EQ from the boost side. If you get your drive side EQ balanced he way you like it you can then tailor the overall feel with the Tilt EQ.
- LEVEL - The Level control controls the output volume of the boost and can be used to slam the front end of the pedal or your amp depending on if it is post or pre.
