The following specs were carefully collected and recorded by a skilled technician.
For a more detailed description and questions regarding sound, feel, or cosmetic
condition, please visit our Lincoln Avenue showroom or call to speak to one of our
Used and Vintage experts.
| Finish Details: | Original |
| Body Material: | Basswood |
| Body Details: | Solid basswood body. The body has been routed for a middle pickup. |
| Neck Material: | Maple |
| Fingerboard Material: | Rosewood |
| Neck Profile: | Medium C |
| Neck Thickness (IN): | 1st - 0.83" 12th - 0.94" |
| Fingerboard Radius: | 12.00" |
| Nut Width: | 1-5/8" |
| Scale Length: | 25 1/2" |
| Neck Details: | Glossy maple neck with unbound rosewood fingerboard and pearloid dot inlays |

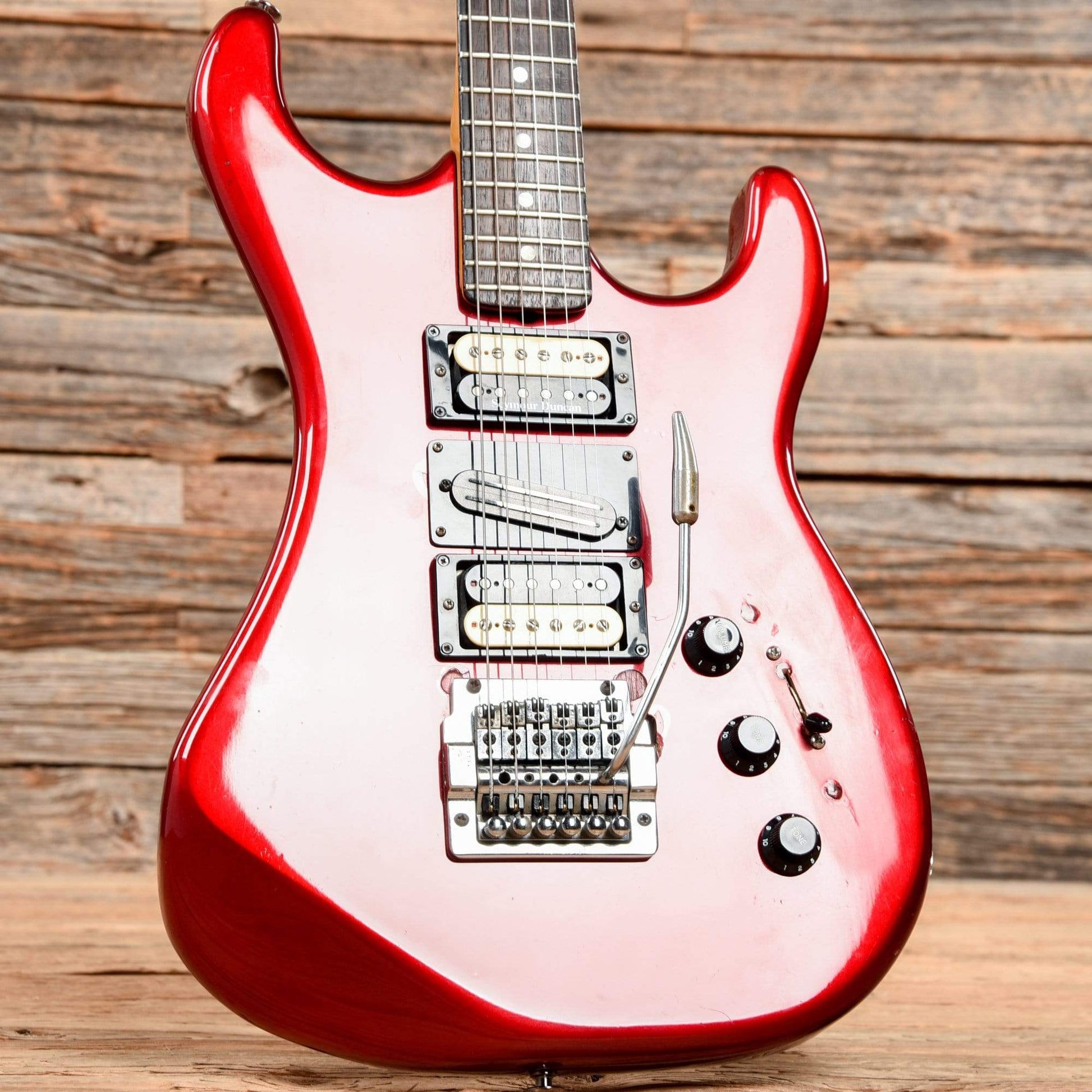

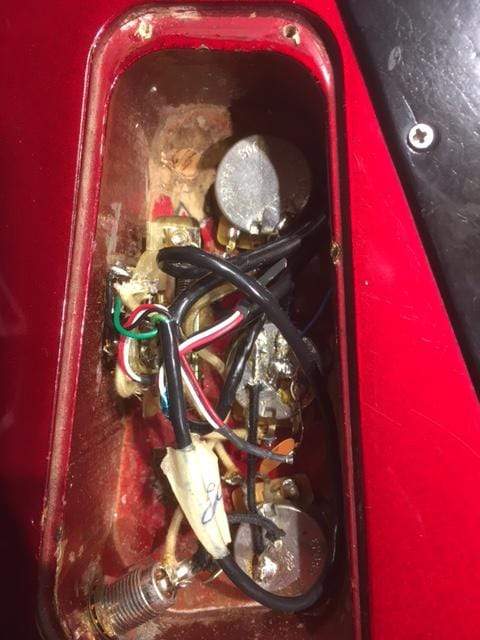

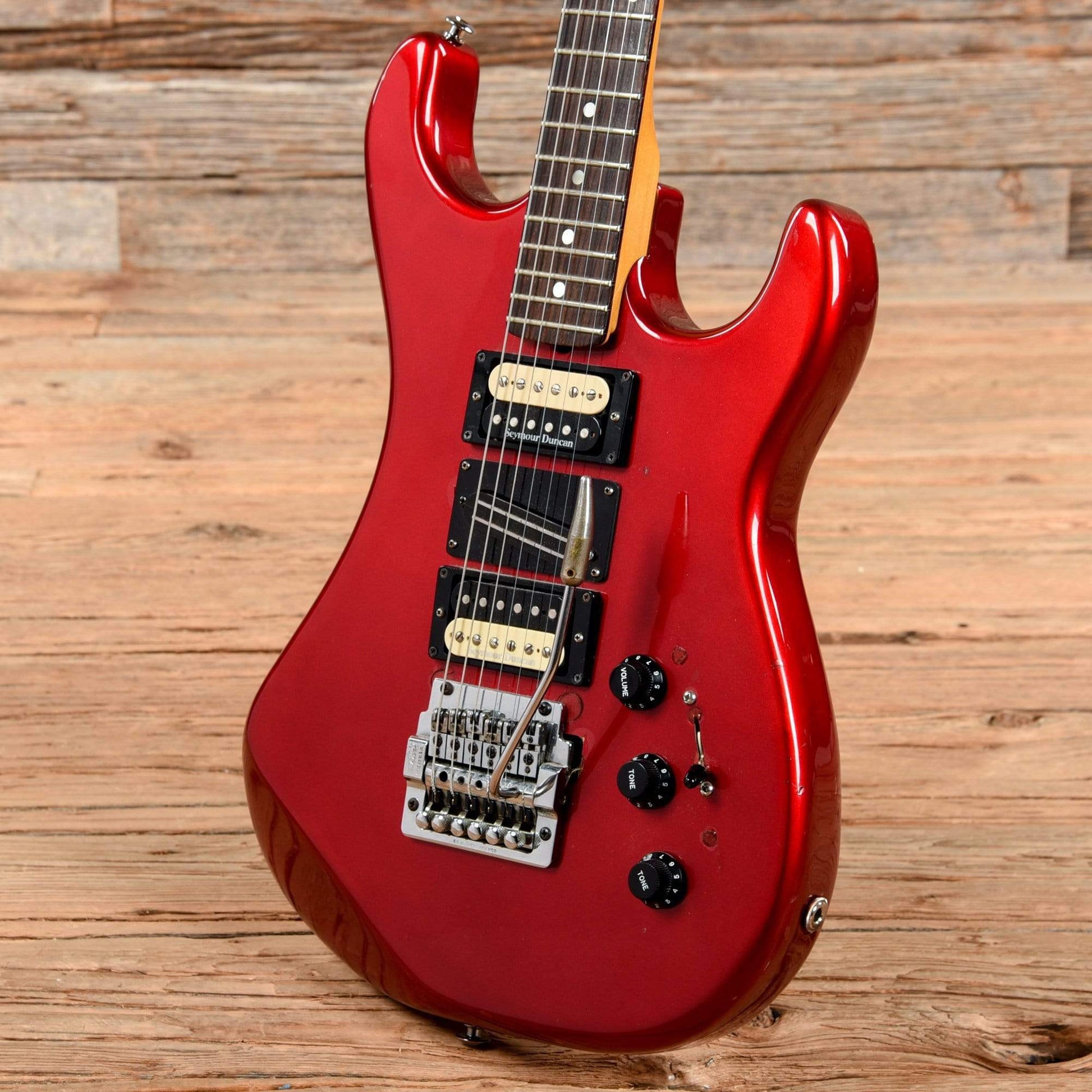

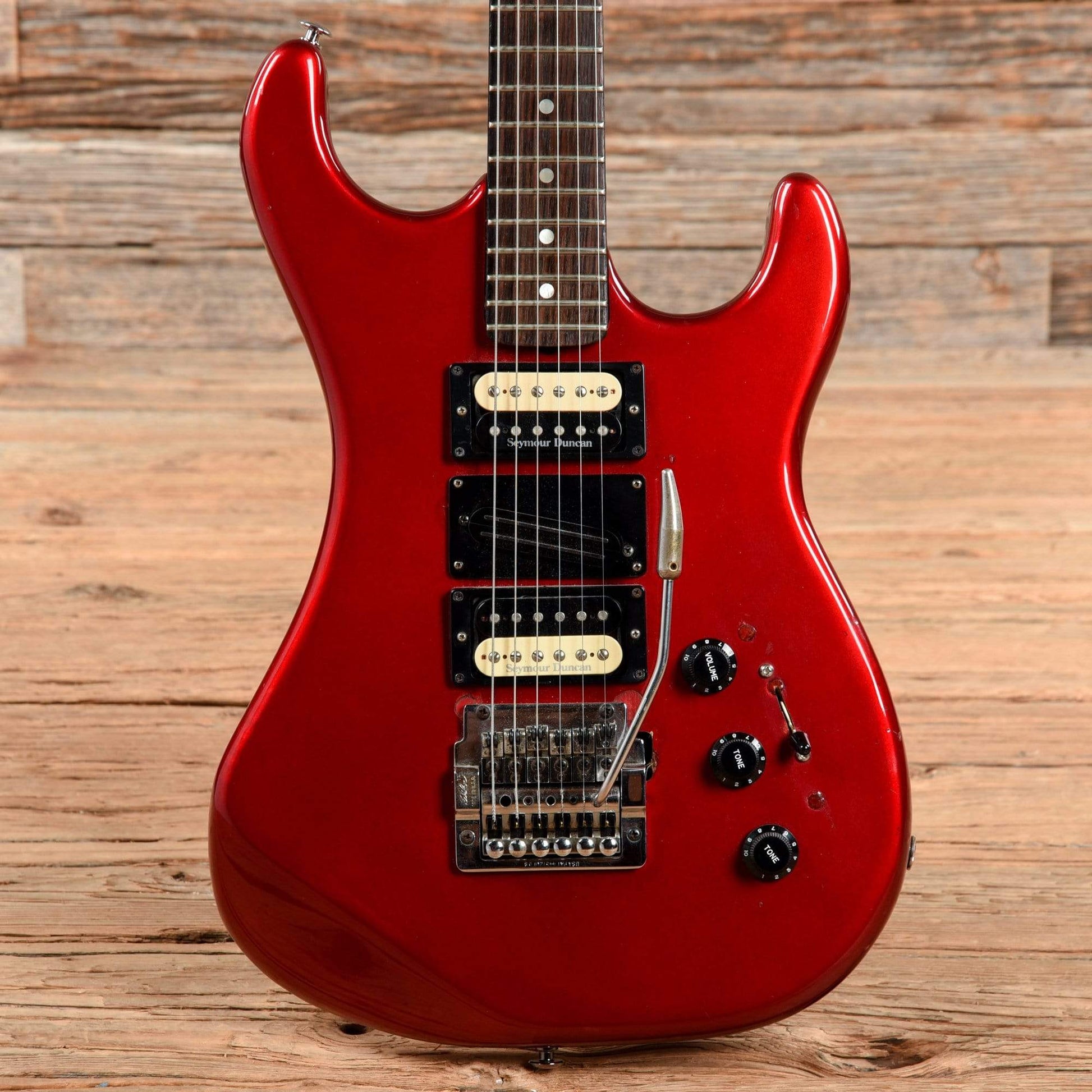

| Electronics: | Pickups include a Seymour Duncan Jazz Neck humbucke, SH-11 Custom bridge humbucker, and a repro "hot rail" pickup marked "CK/JSB 1-5-99" has been installed in the middle position. The guitar has been rewired with a blade switch in place of the original toggle switch and new pots. Controls include a 5-way pickup selector, master volume pot, neck tone pot, and middle/bridge tone pot. |
| Pickup Measurements: | Neck - 7.25kΩ Middle - 4.06kΩ Bridge - 13.41kΩ |
| Hardware: | -original Floyd Rose trem assembly has been replaced with a Kahler trem -knobs are not original -back plate is not original |
| Weight: | 8lbs 15oz |
| Modifications/Repairs: | -body has been routed for middle pickup -repro "hot rail" pickup has been installed with a plastic mounting ring in the middle position -Kahler trem assembly has been installed -original 3-way toggle switch has been removed -several holes on the body have been plugged and painted over -5-way blade switch has been installed -guitar has been rewired -pots have been replaced -knobs are not original -back plate is not original -2 screws on the control cavity cover are not original |

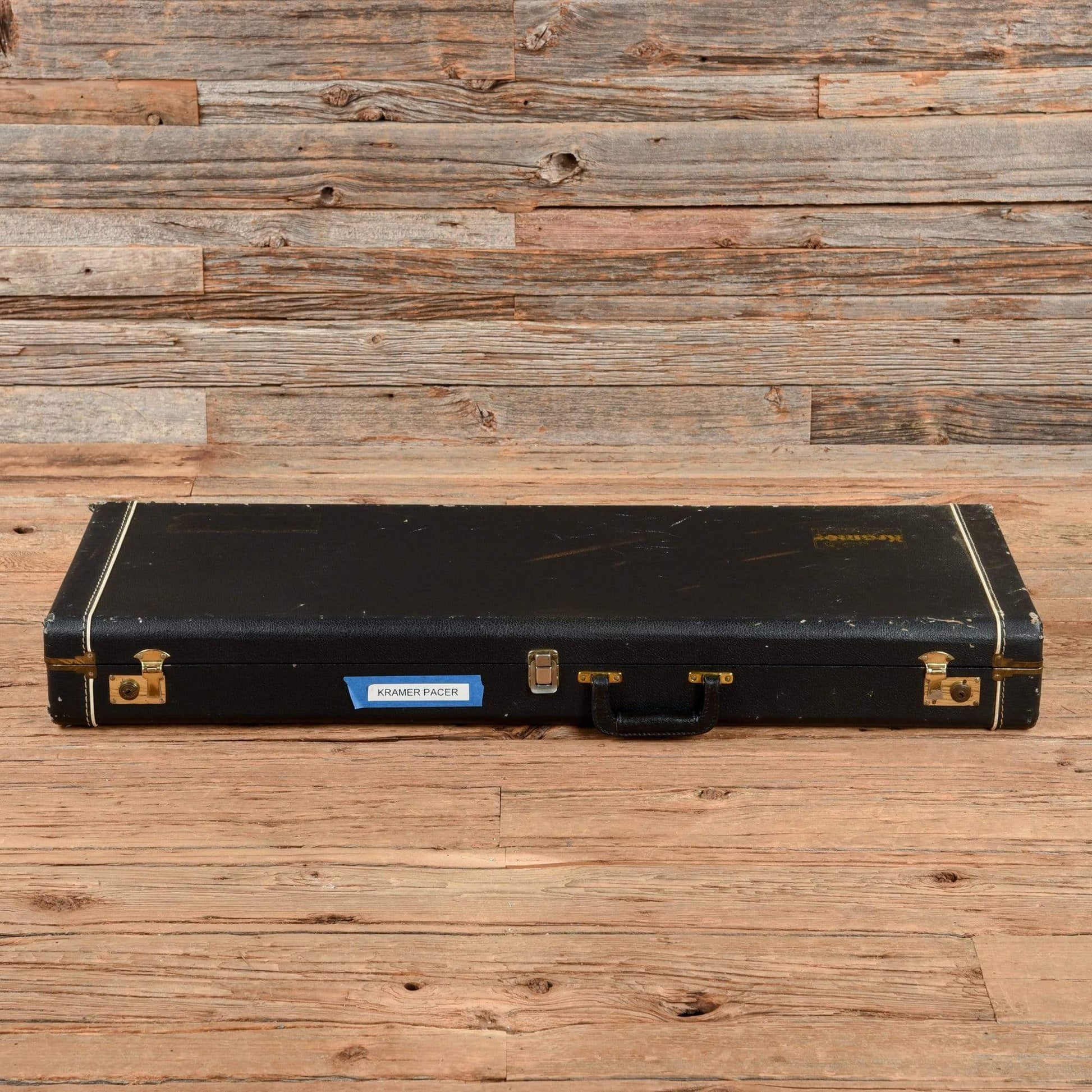

| Case Details: | Original hardshell case |
| Cosmetic Condition: | The guitar has moderate play wear. There is a small chunk missing from the headstock, scratches and dings throughout, and buckle rash on the back. |

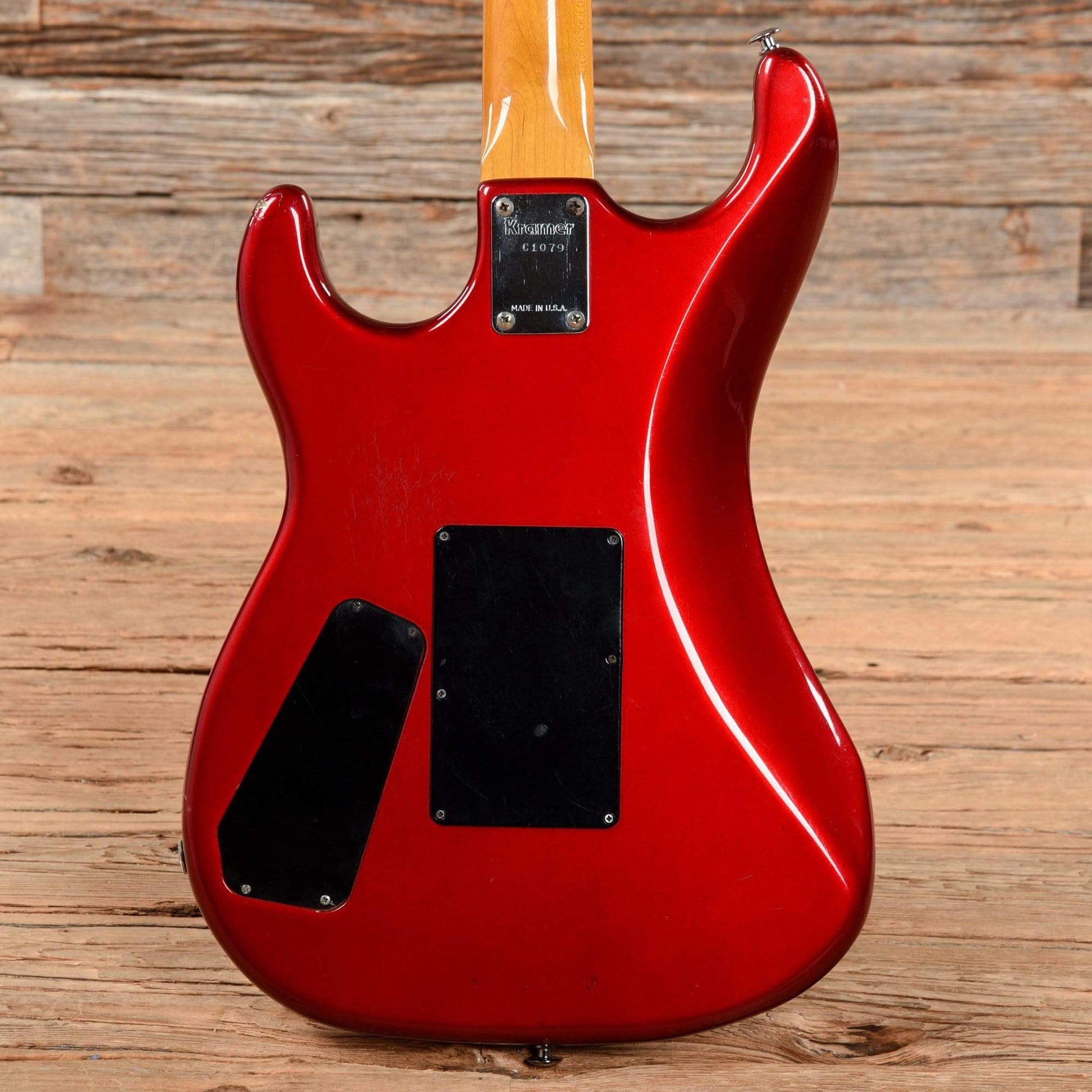

| Serial Number: | C1079 |

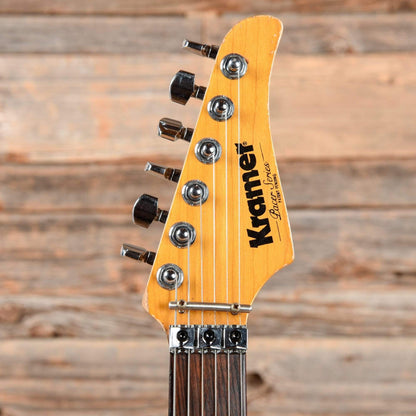

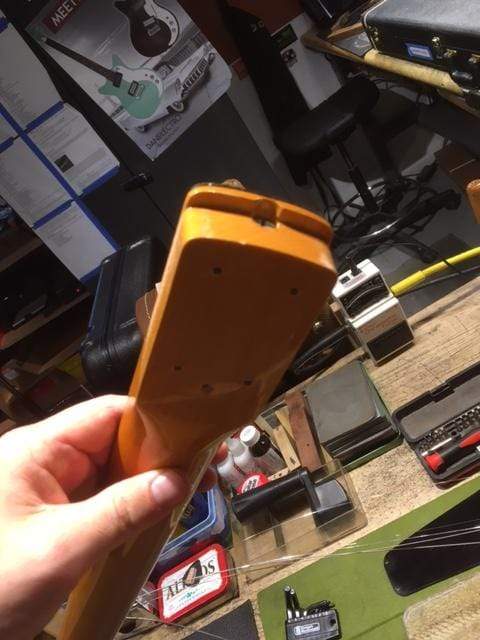

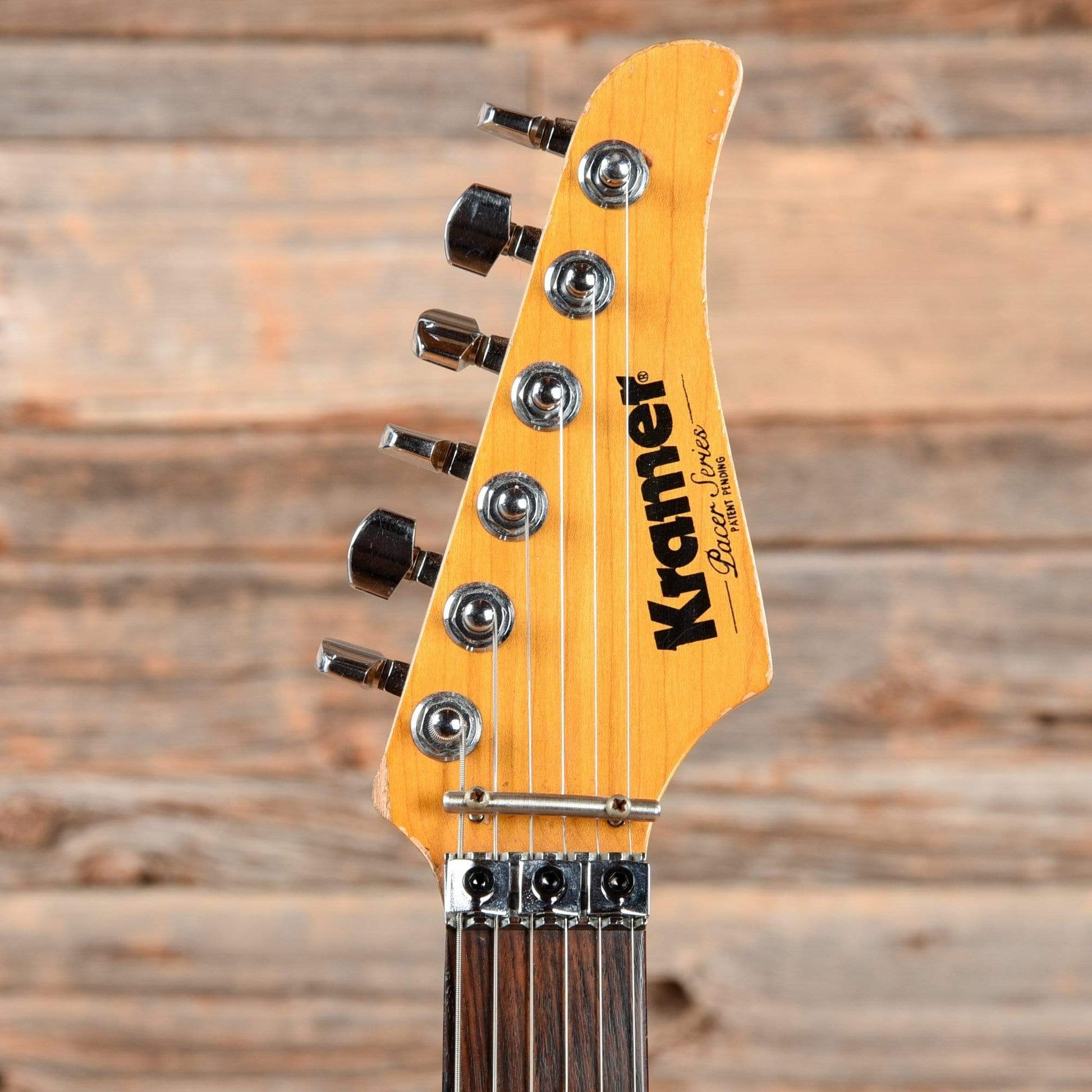

| Tech Notes: | Plays well with 10-46 gauge strings, low action and light neck relief. The truss rod has limited adjustability so this guitar will set up best with 10 gauge or lighter strings. The frets are tall, wide, and have minor signs of play wear. The headstock shape, logo font, and "Made In U.S.A" stamp on the neck plate indicate that this guitar was made between 1984-1986. |
