  • Vintage
Mosrite

Mosrite Sunburst 1966

Mosrite Sunburst 1966

Serial Number: 2J305

Description
The following specs were carefully collected and recorded by a skilled technician. For a more detailed description and questions regarding sound, feel, or cosmetic condition, please visit our Lincoln Avenue showroom or call to speak to one of our Used and Vintage experts.
Finish Details: Original.
Body Material: Basswood
Body Details: Solid basswood body.
Neck Material: Maple
Fingerboard Material: Rosewood
Neck Profile: Medium C-Shape
Neck Thickness (IN): 6-String - 1st fret: .81" / 12th: 8.2" <<>> 12-String - 1st fret: 1st fret: .8" / 12th: .8"
Fingerboard Radius: 7.25"
Nut Width: 1-9/16"

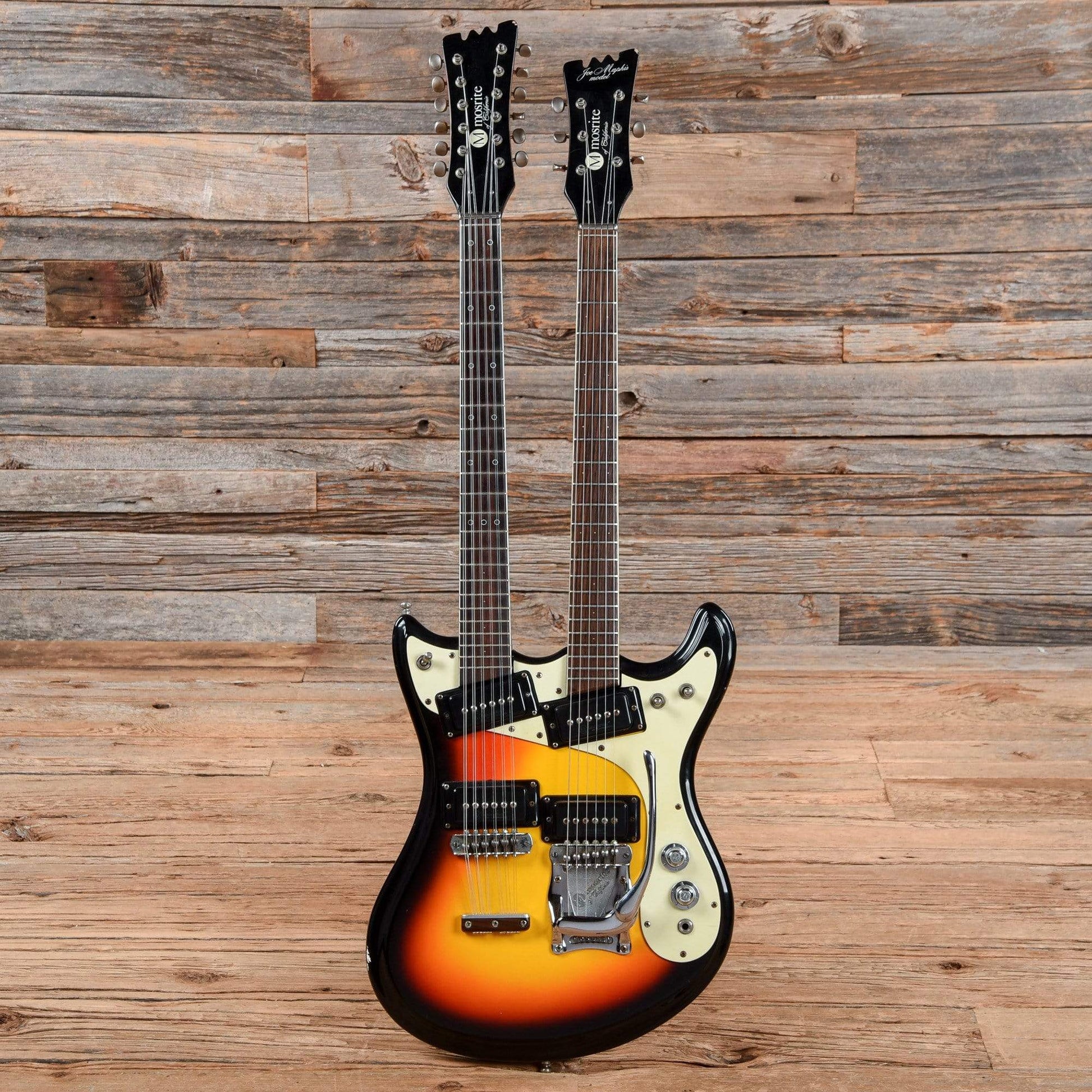

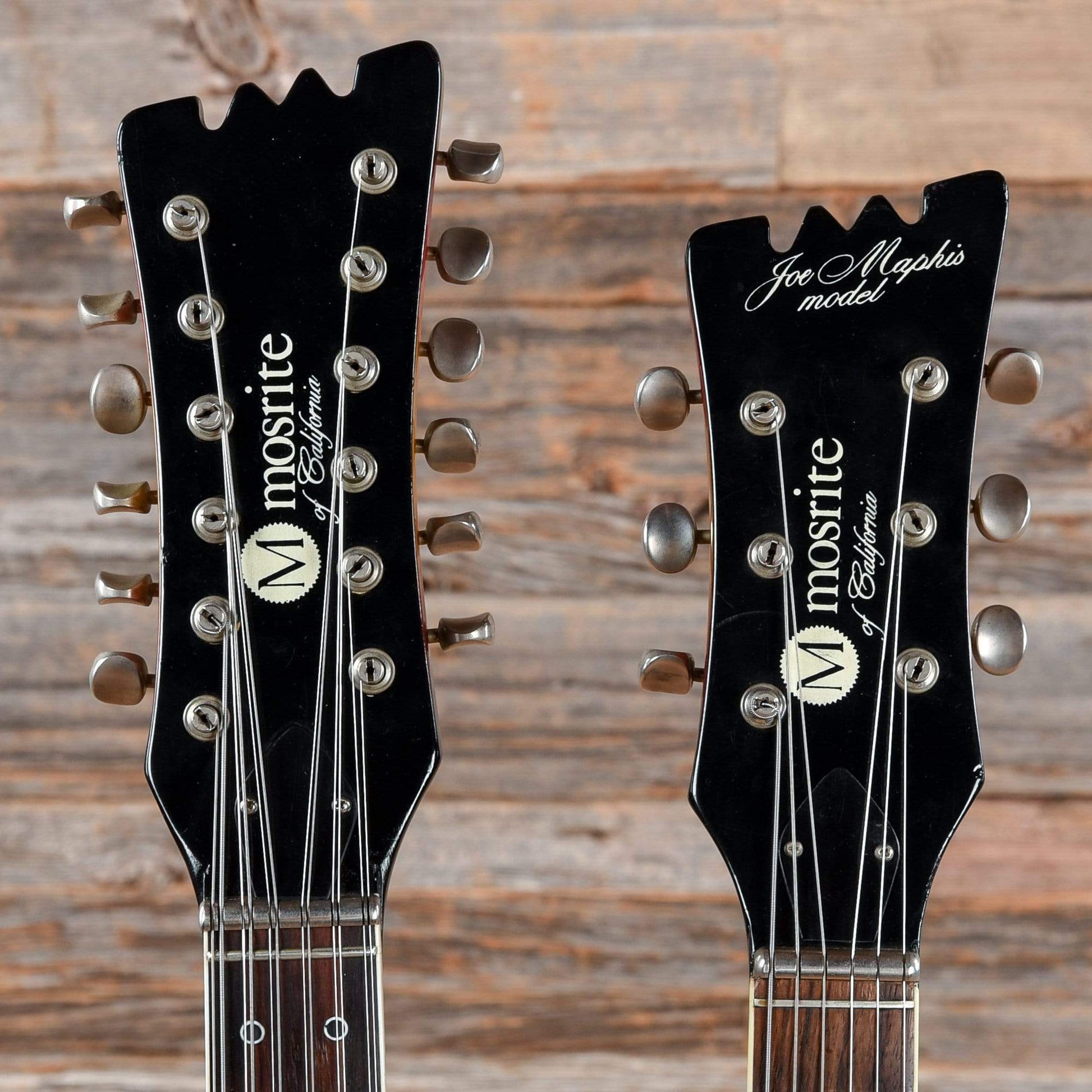

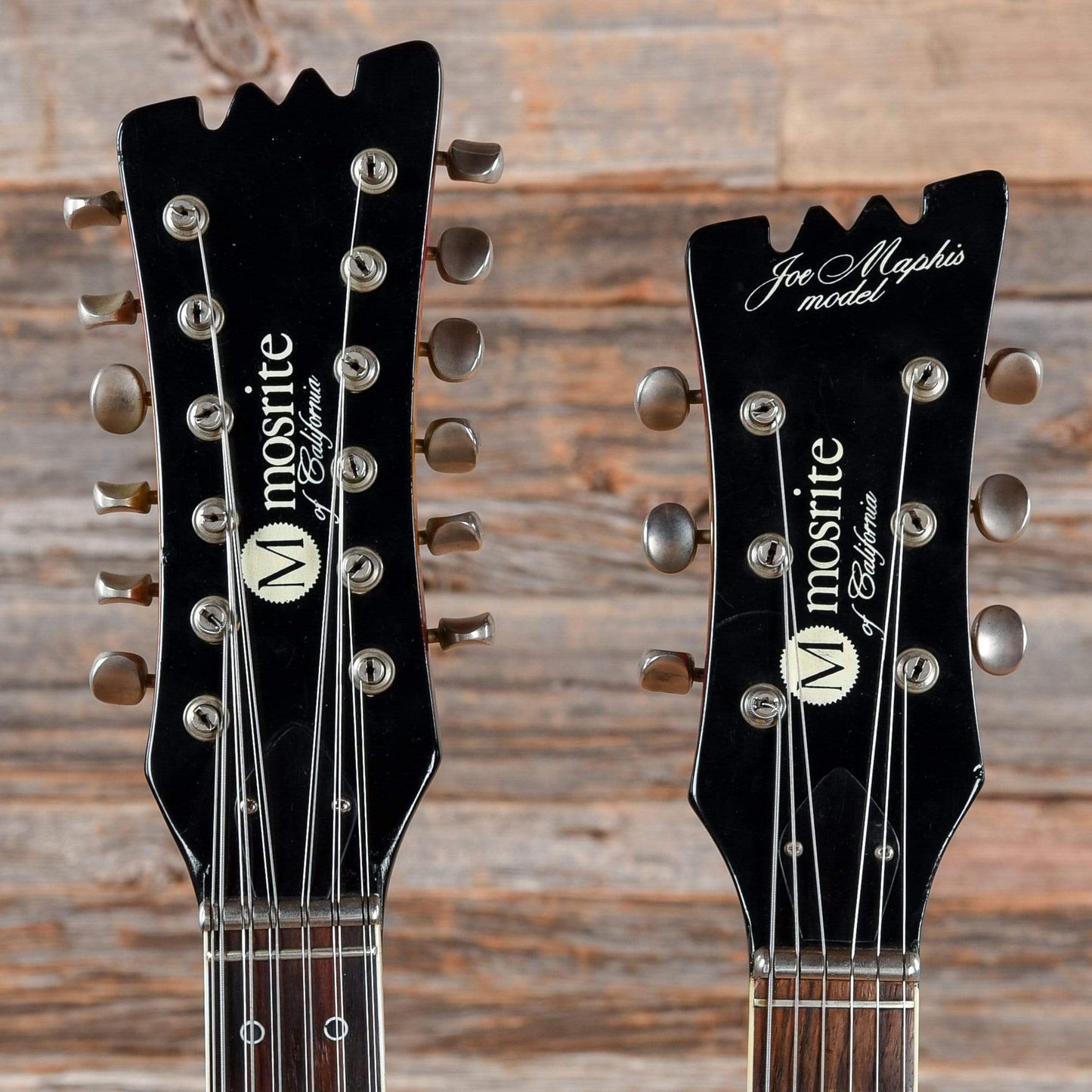

Neck Details: 6-STRING - One-piece bolt-on maple neck with a bound rosewood board, volute, small double-dot inlays, and truss adjustment at the heel. <<>> 12-STRING - One-piece bolt-on maple neck with a bound three-piece rosewood board, volute, double-dot inlays, and non-adjustable truss rod. -- There are signs of a headstock repair and over-spray around the repair. The fretboard, frets, binding, and inlays do not match the 6-string neck. The neck itself appears original, however, it is most likely that the board and binding have been replaced. -- There is an open screw hole on the underside of the volute.

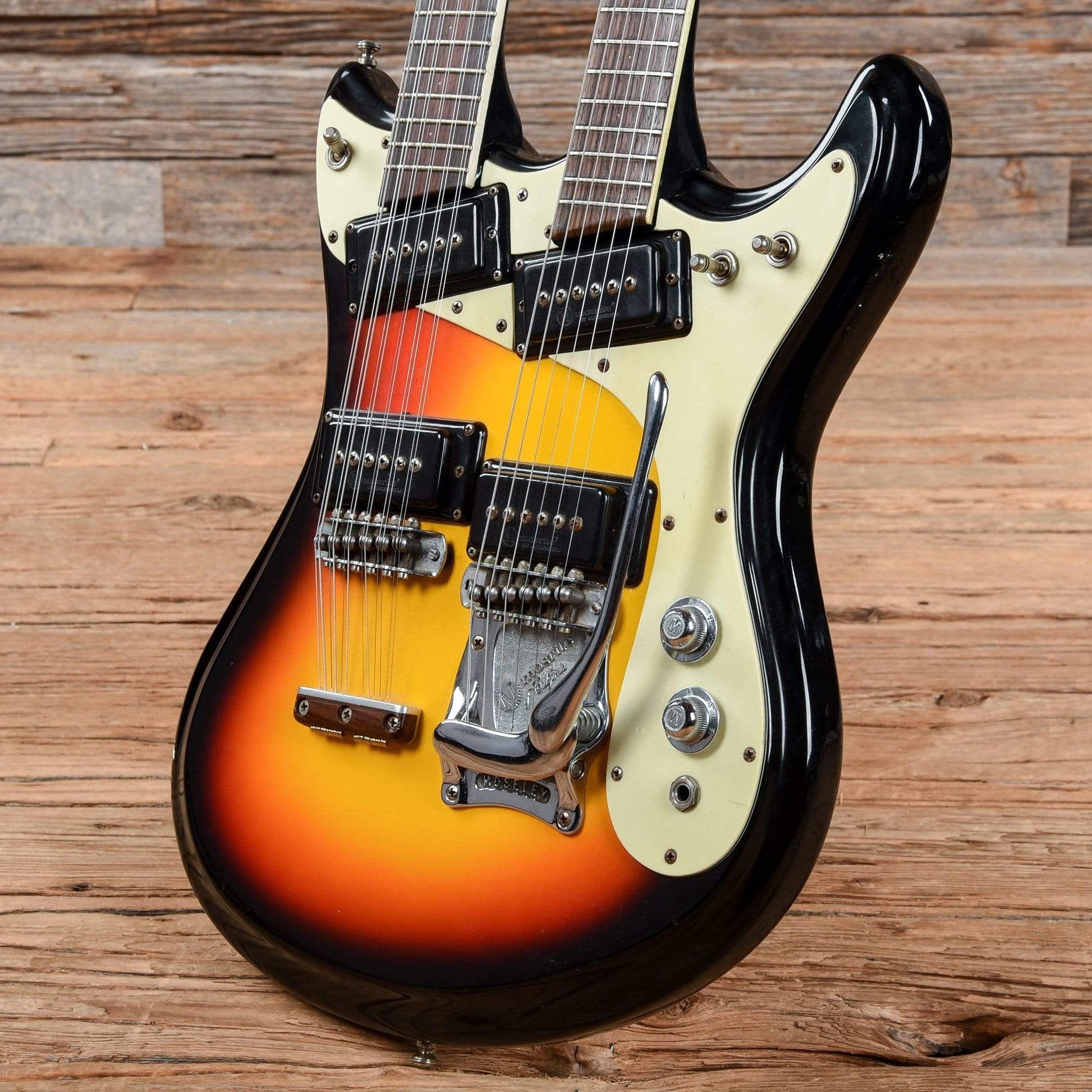

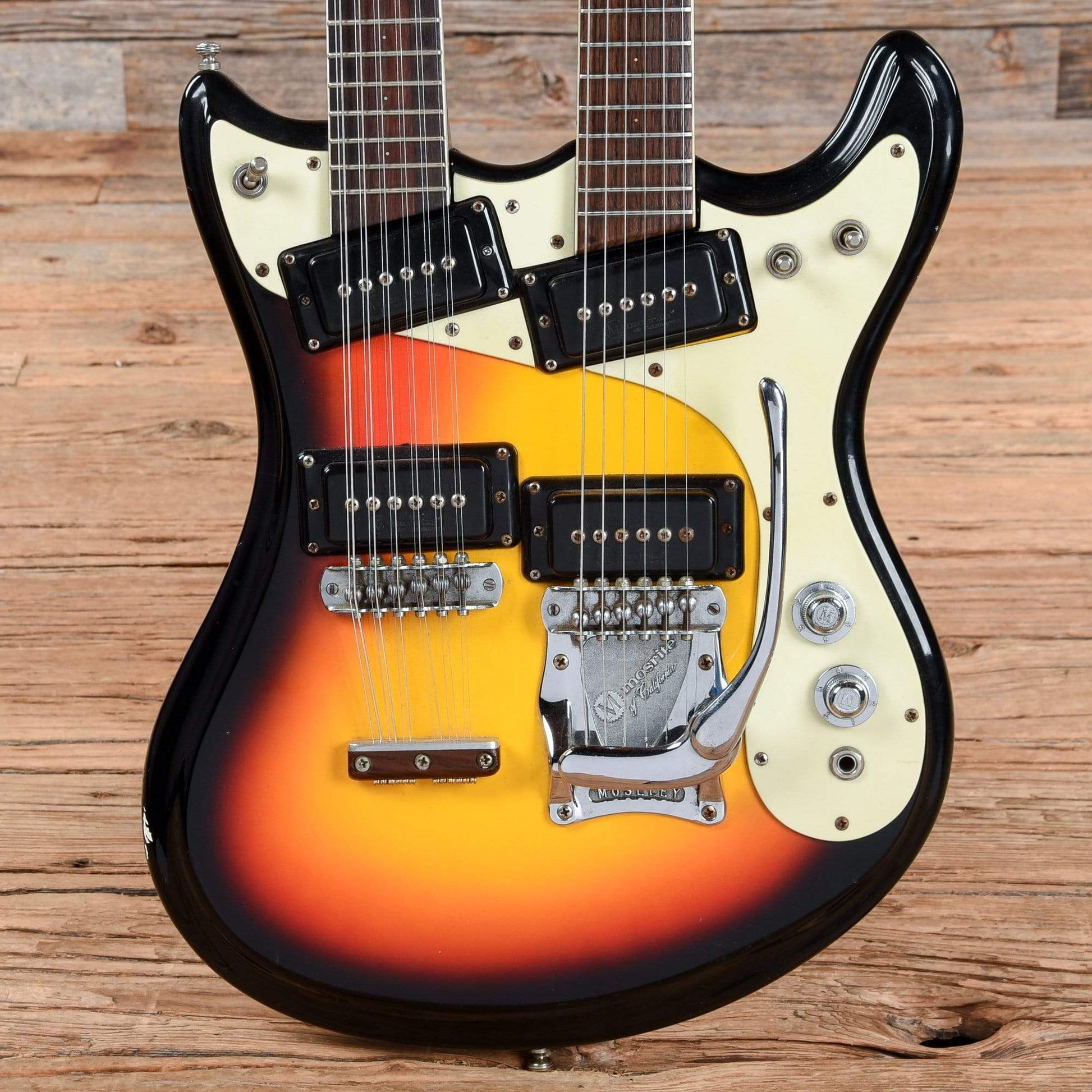

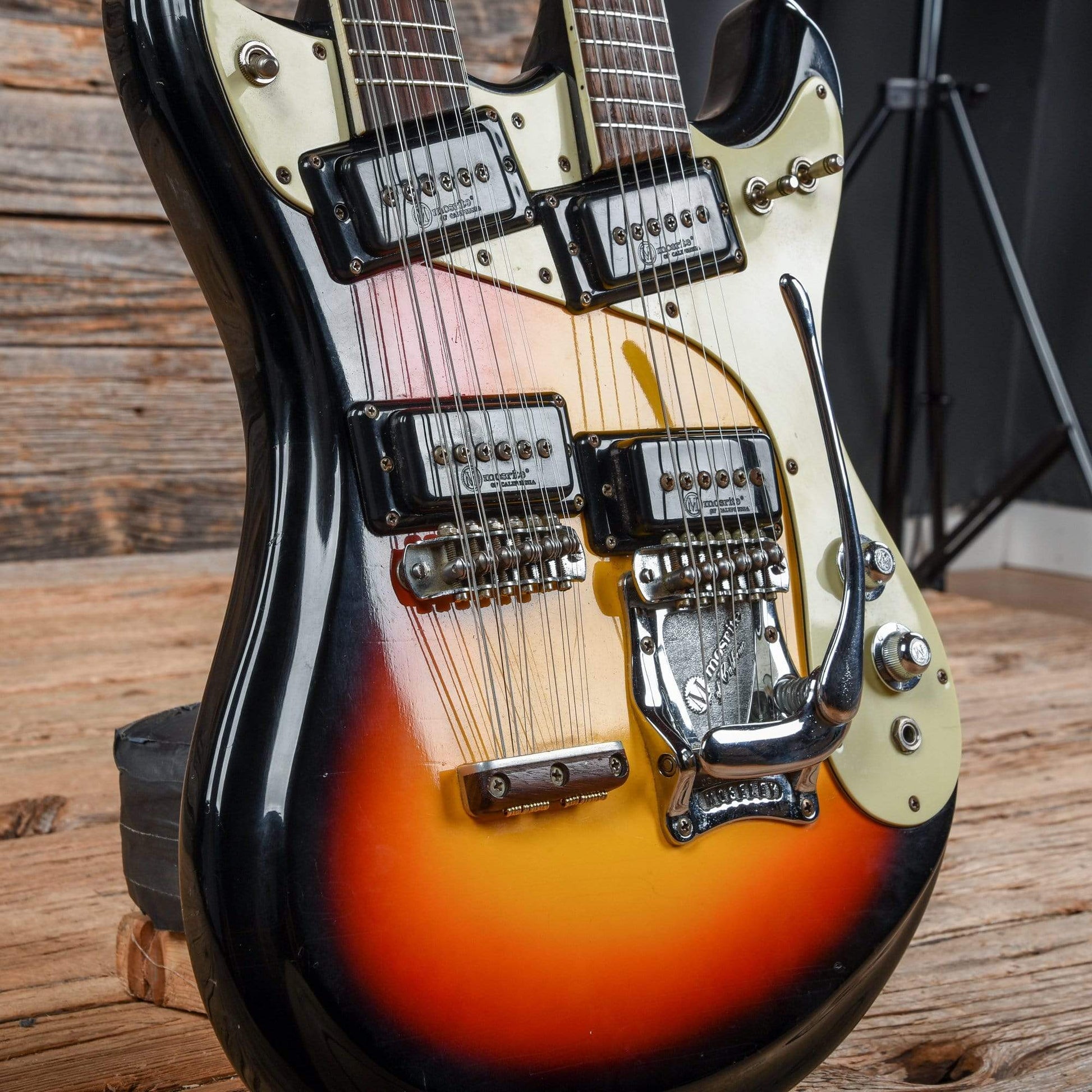

Electronics: Four single-coil pickups (two per neck), two 3-way toggle pickup selector switches (one per neck, bass-side horn and closest to the 6-string neck pickup), one 3-way toggle neck selector switch (treble-side horn), a master volume control and a master tone control. -- Pot code dates are not visible. -- All electronics appear original.
Pickup Measurements: 6-String - Neck: 10.4 kΩ / Bridge: 9.8 kΩ <<>> 12-String - Neck: 10.4 kΩ / Bridge: 10.3 kΩ

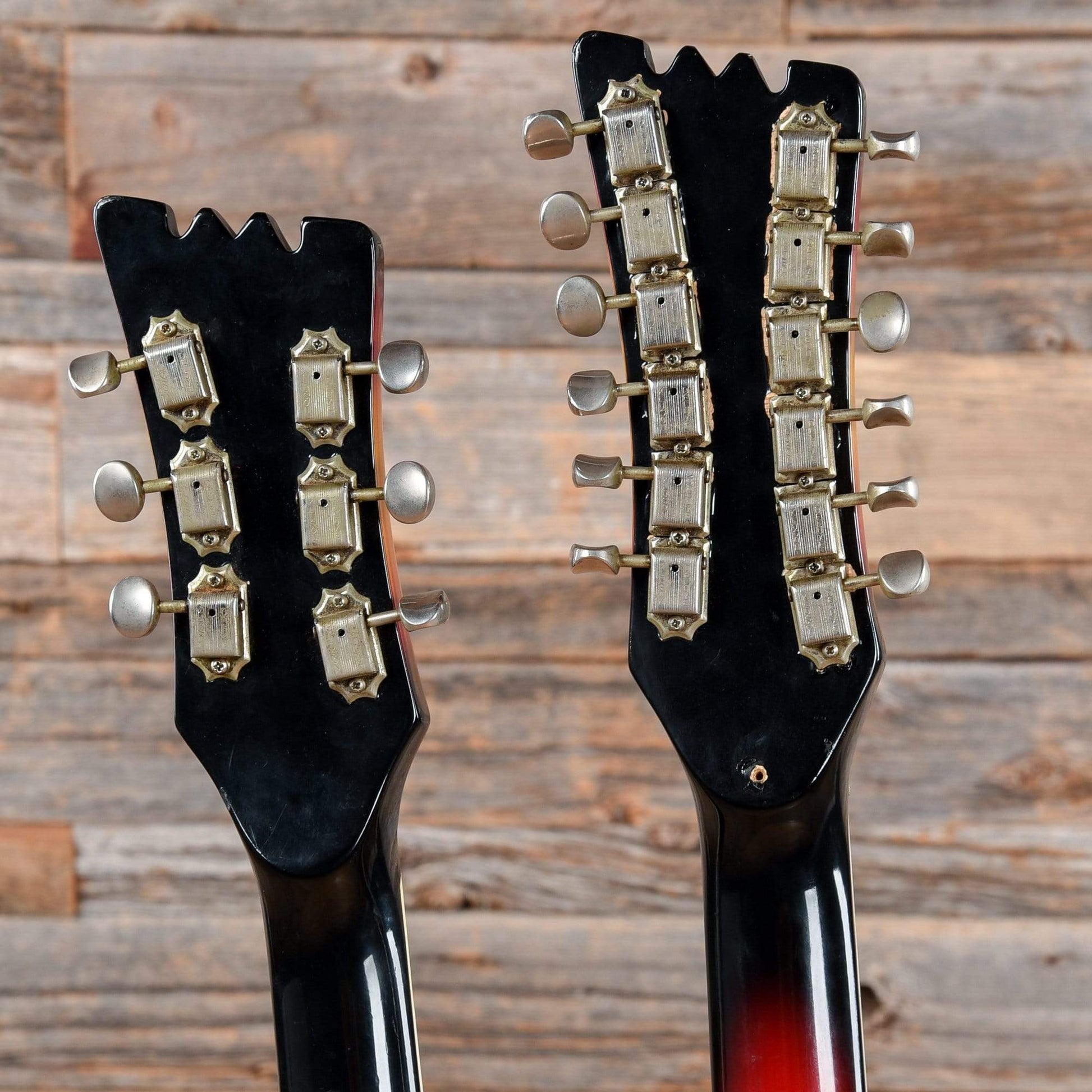

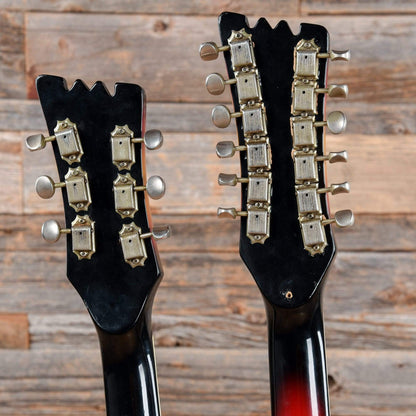

Hardware: All hardware appears original.
Modifications/Repairs: The 12-string fretboard and binding have been replaced. -- Repaired headstock break. The repair has been over-sprayed.

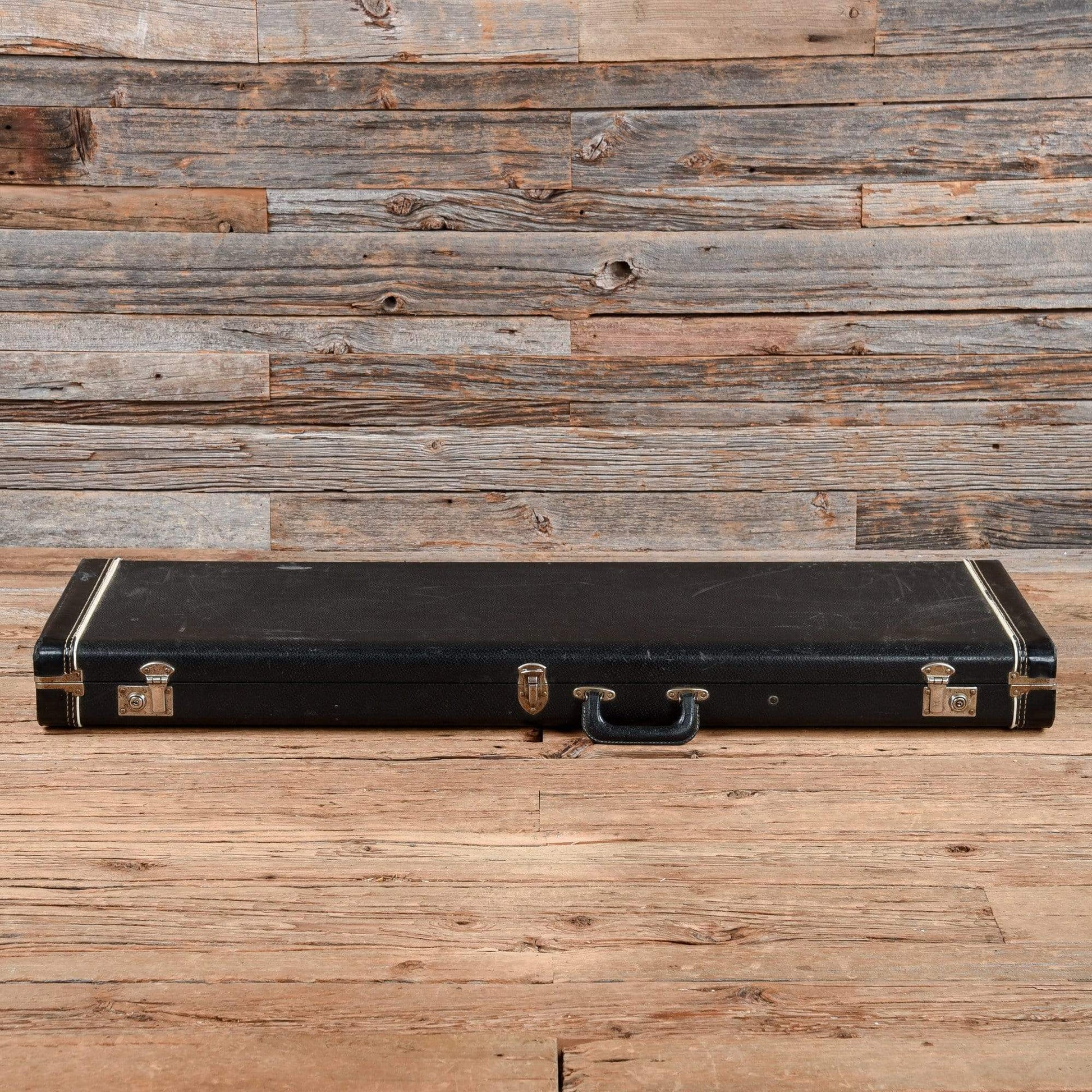

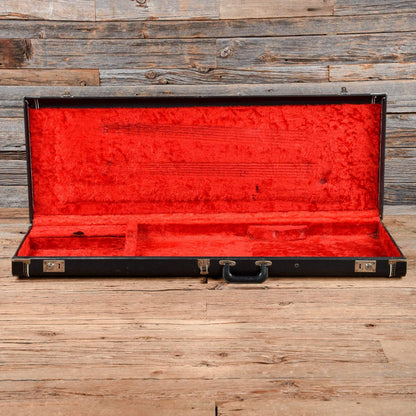

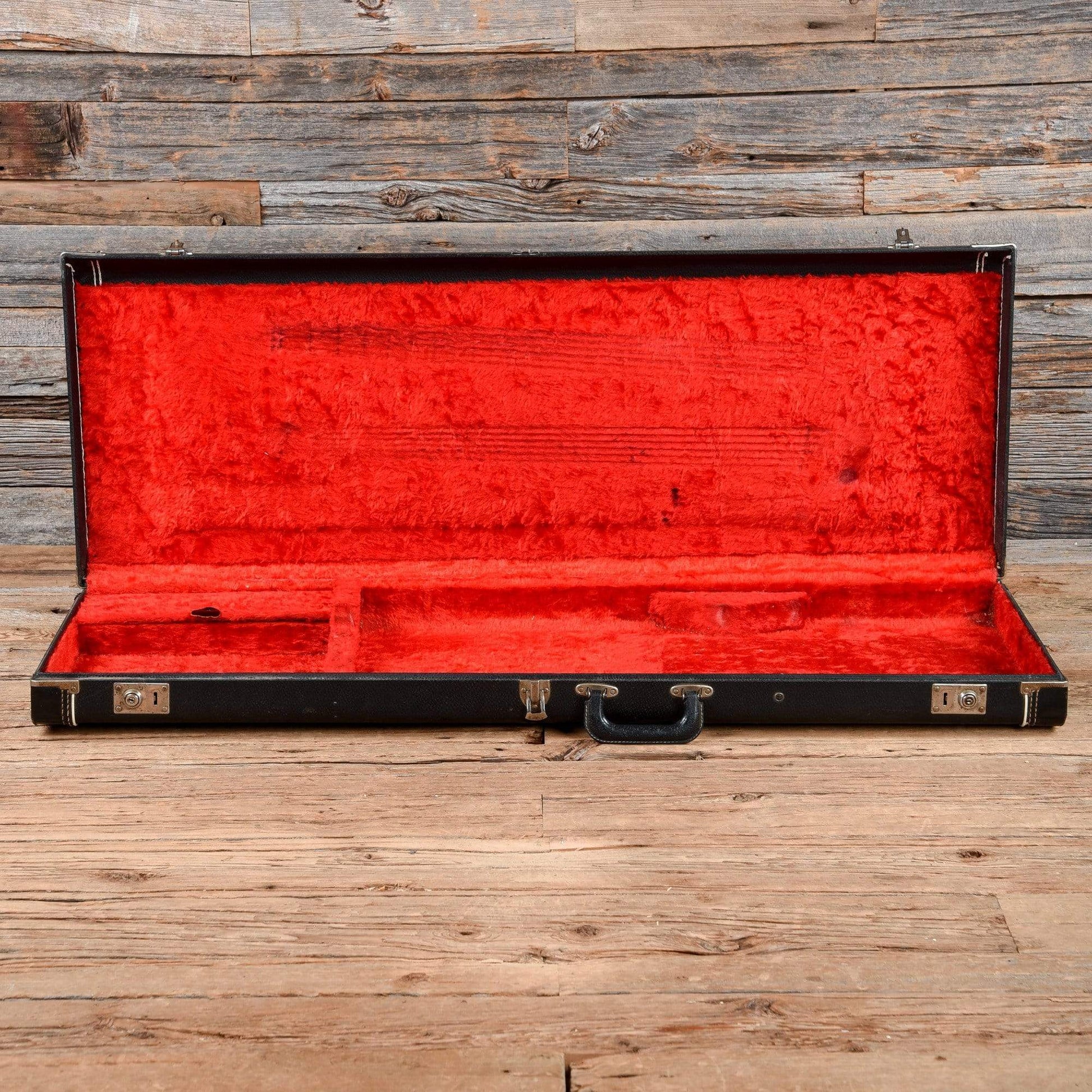

Case Details: Vintage Fender style rectangular hardshell with red plush interior.

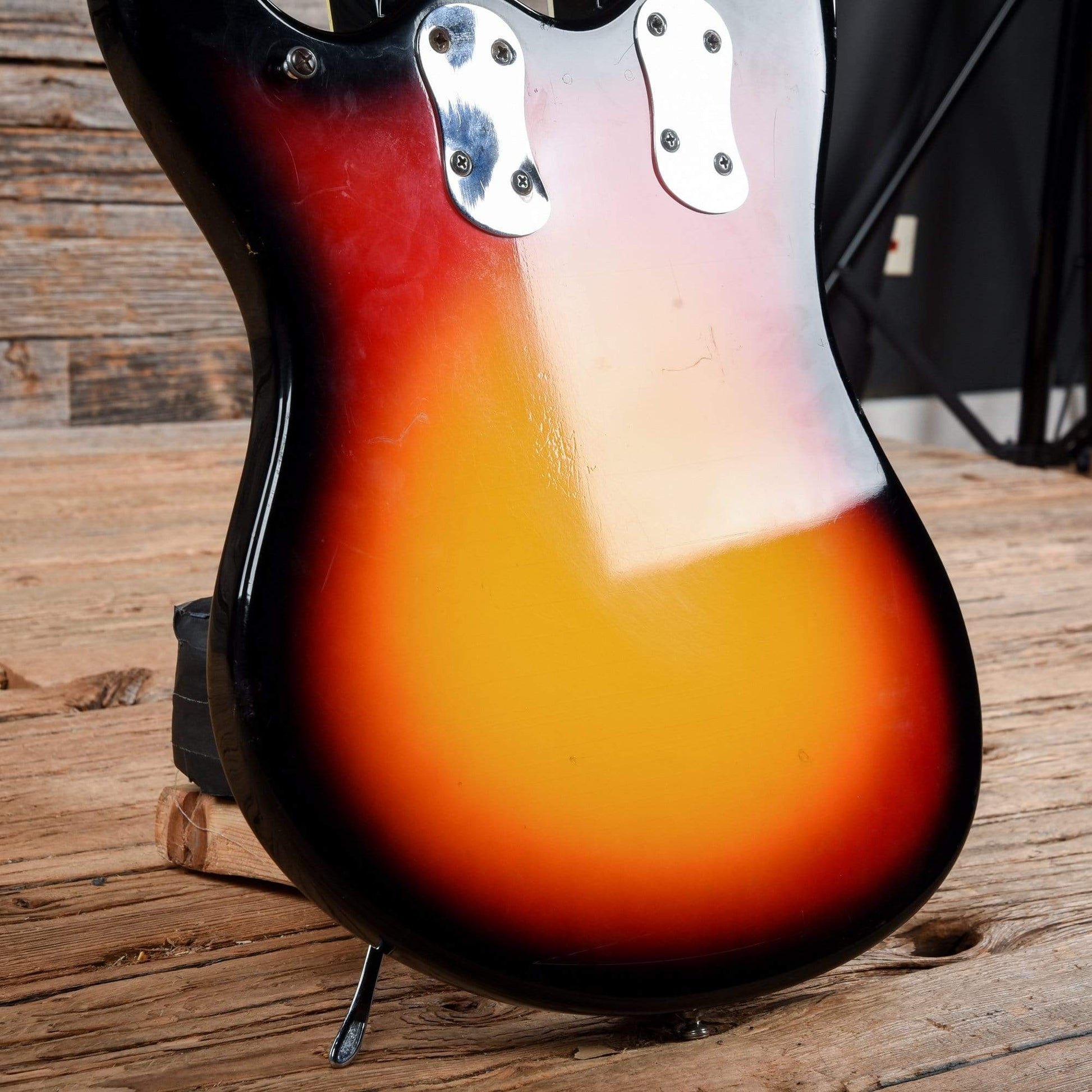

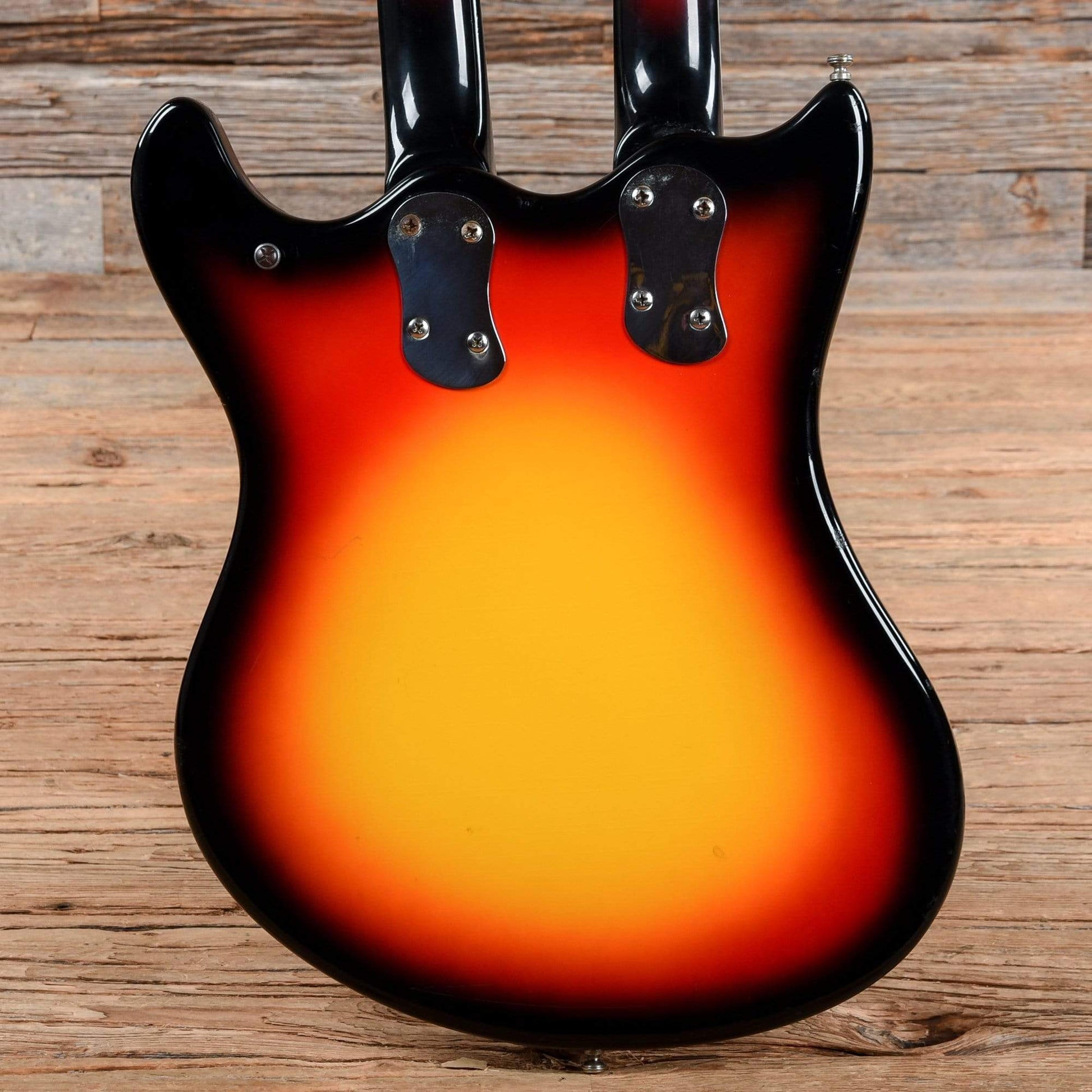

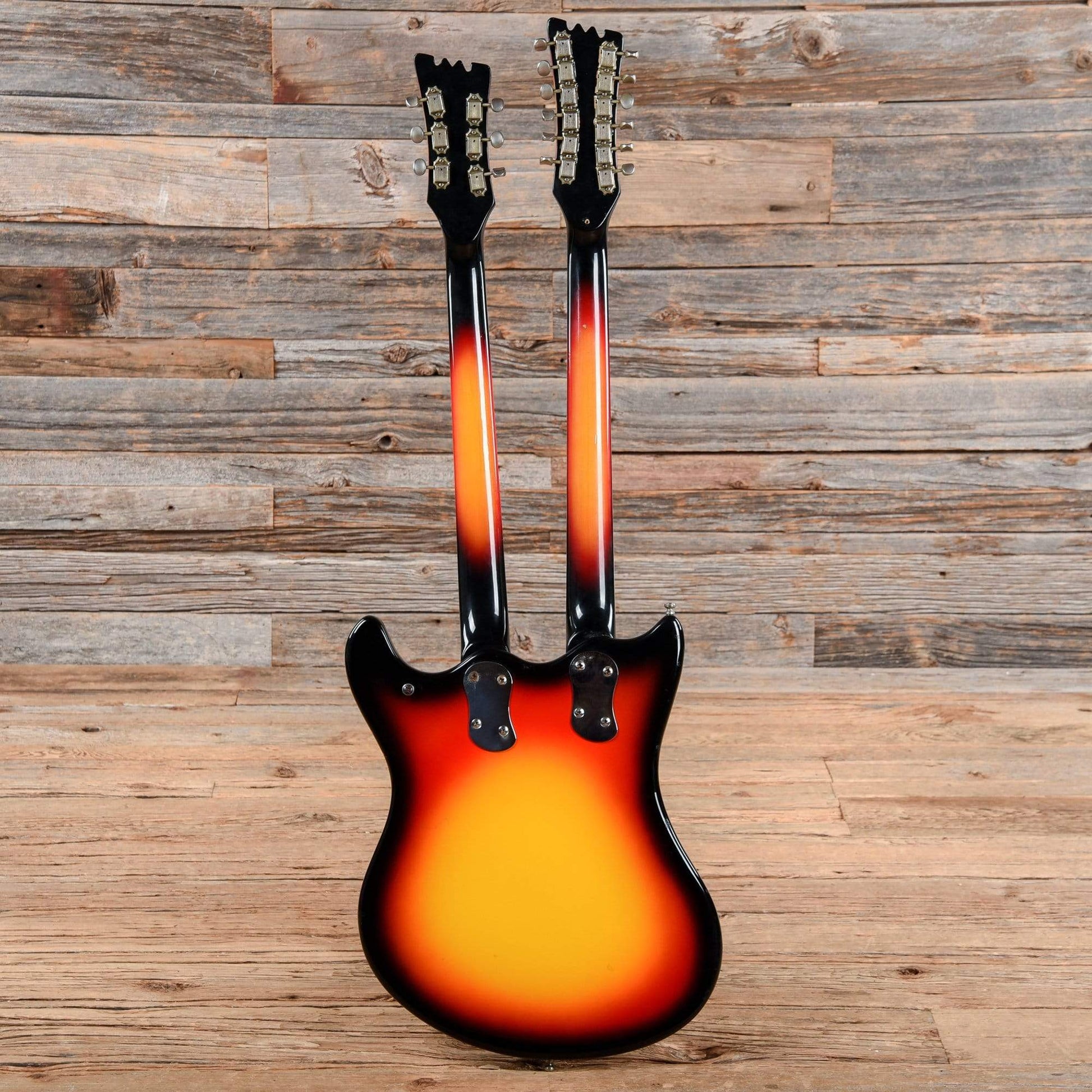

Cosmetic Condition: This guitar shows age and wear. Checking can be seen throughout the body. The back of both necks are clean and smooth with only a minor ding under the 3rd fret of the 12-string neck.
Serial Number: 2J305
Tech Notes: 6-String: Currently setup with 10 gauge strings, low action, and optimal neck relief. The frets are small and very low showing light play wear. -- 12-String: This neck is currently setup with 9 gauge, extra light strings. Because of the fretboard replacement, the action is set high with significant relief due to an inoperable truss-rod. The strings fret out from the 12th through the 14th fret and up.
