From Yamaha:

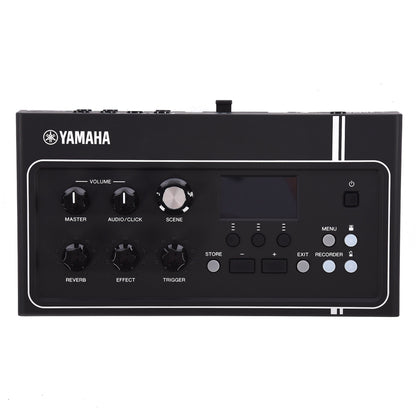

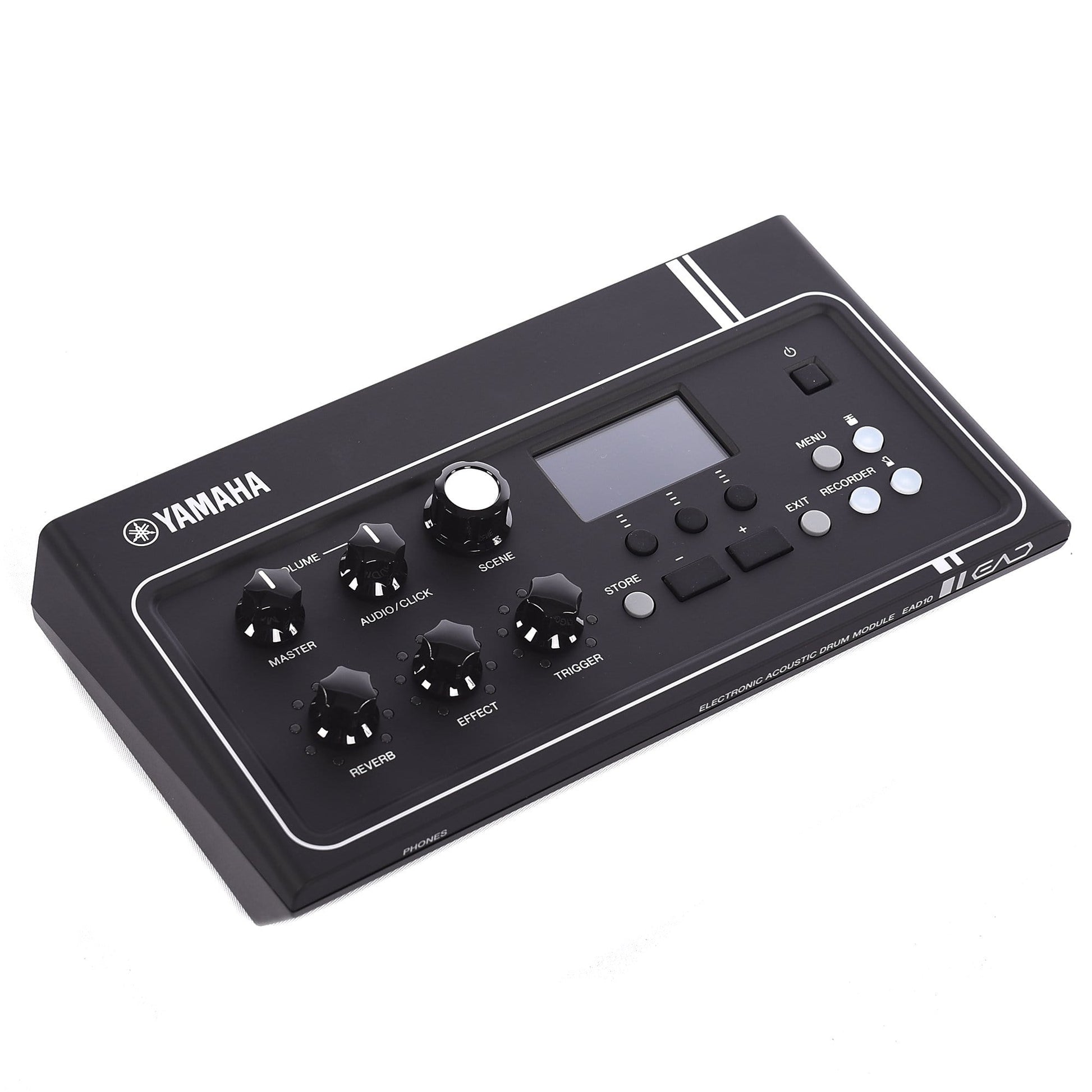

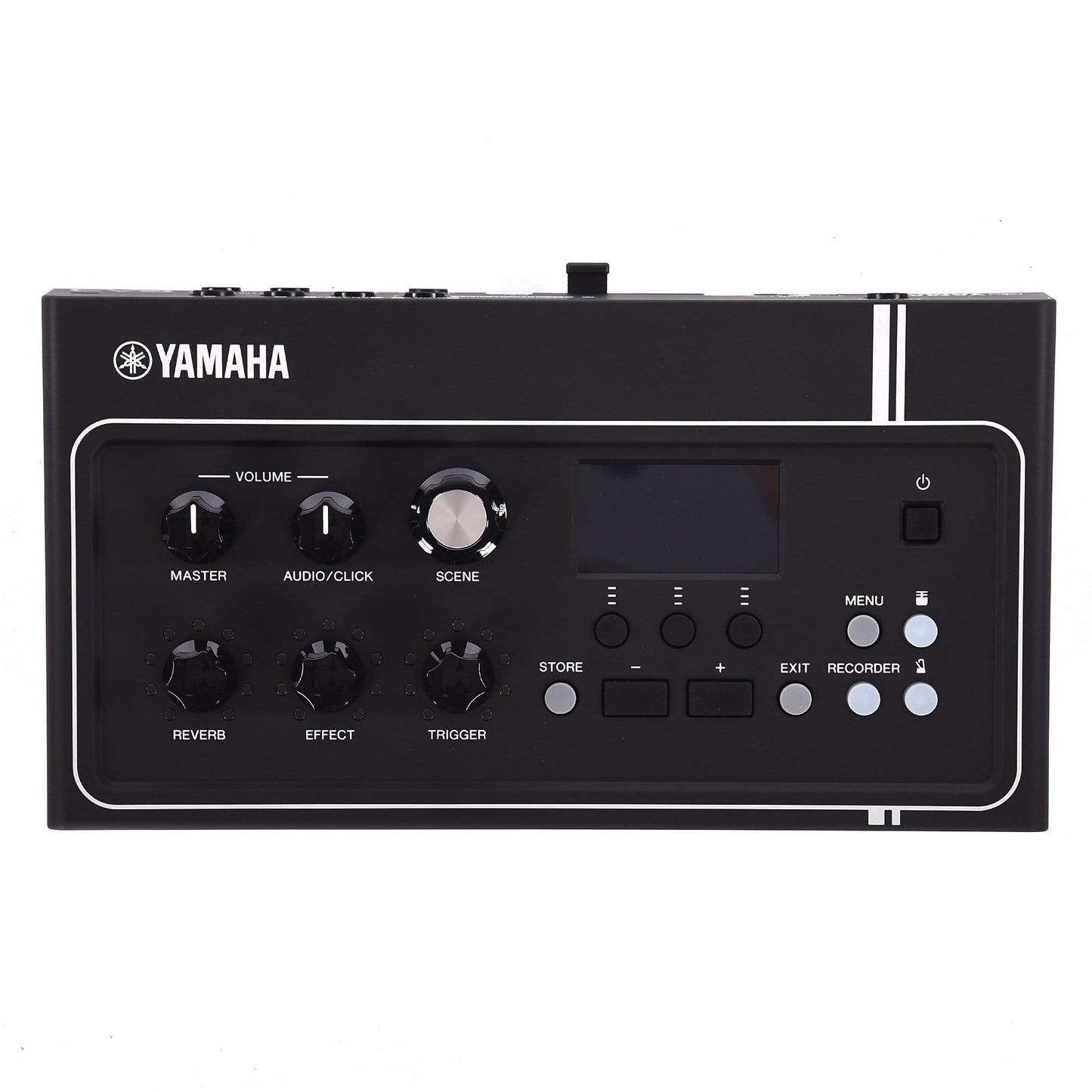

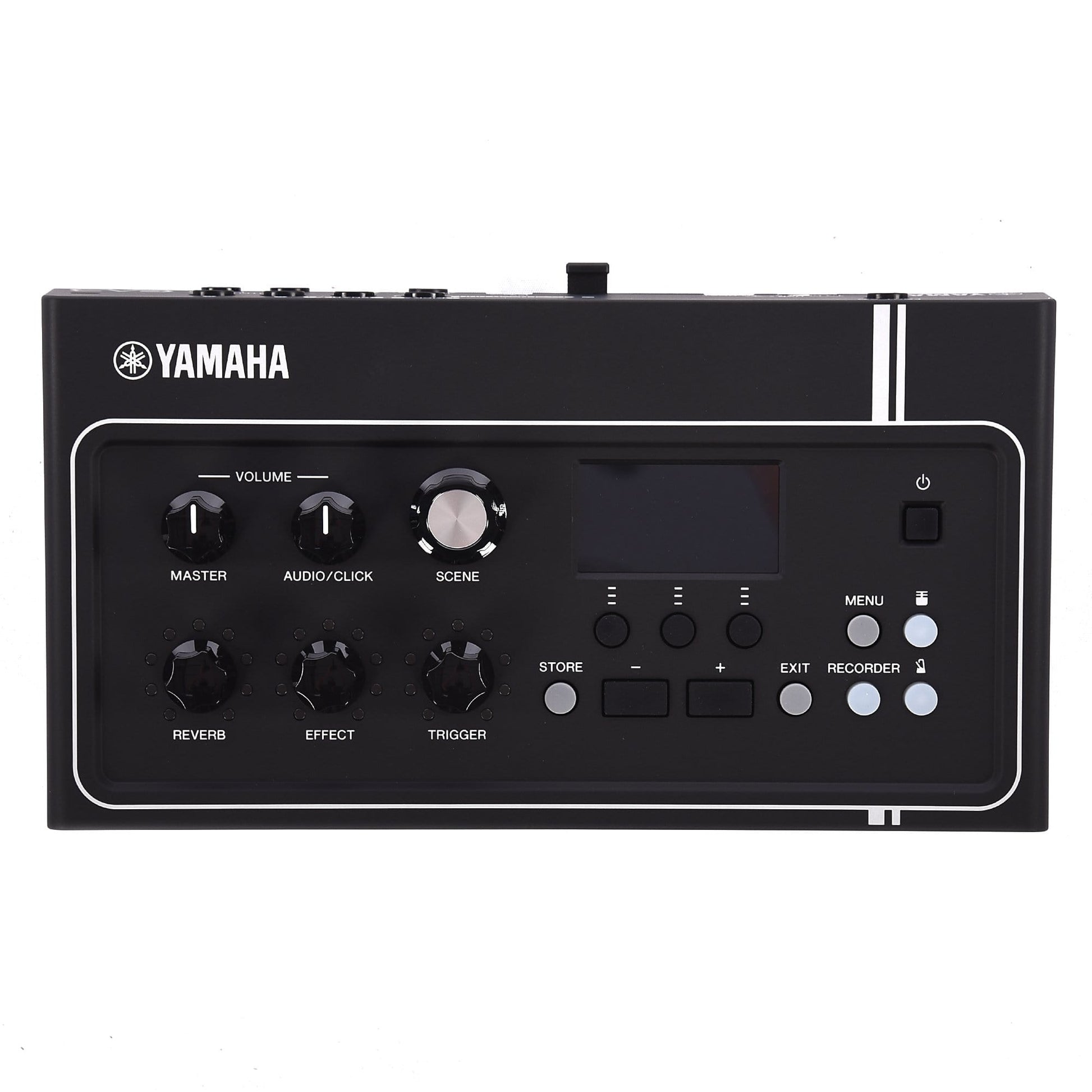

The EAD10 acoustic electronic drum module instantly transforms your acoustic drum kit into a powerful, digital/electric hybrid with sampled sounds and studio-quality digital effects. It allows you to play along with your favorite artists and record and share the audio and video directly to social media. The EAD10 enhances every aspect of your drumming and makes your acoustic drums do more.
Width: 260 mm (main unit), 76 mm (sensor unit)
Height: 63 mm (main unit), 88 mm (sensor unit)
Depth: 138 mm (main unit), 78 mm (sensor unit)
Weight: 654 g (main unit), 464 g (sensor unit)
Scenes: Preset: 50 User: 200
Reverb: 11
Effects: Mic: 21, Trigger: 10
Tone generator: AWM2
Maximum polyphony: 64
Voices: 757
Internal memory: Approx. 1 min 30 sec
USB flash drive: Approx. 30 min/file
Record/playback: WAV (44.1 kHz, 16 bit, stereo)
Recorder Import limit: Up to 100
Playback sample format: 44.1 kHz
Wave memory: 32 MB
Maximum loadable sample size: 1 mono sample: 1.75 MB, 1 stereo sample: 3.5 MB
Sample format: WAV (16 bit)
Click-Track Tempo: 30−300 BPM, tap tempo function
Time signatures: 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, and eighth-note triplets
Functions: Trigger sensitivity adjustment, USB audio/MIDI, headphone EQ, metronome, auto power off

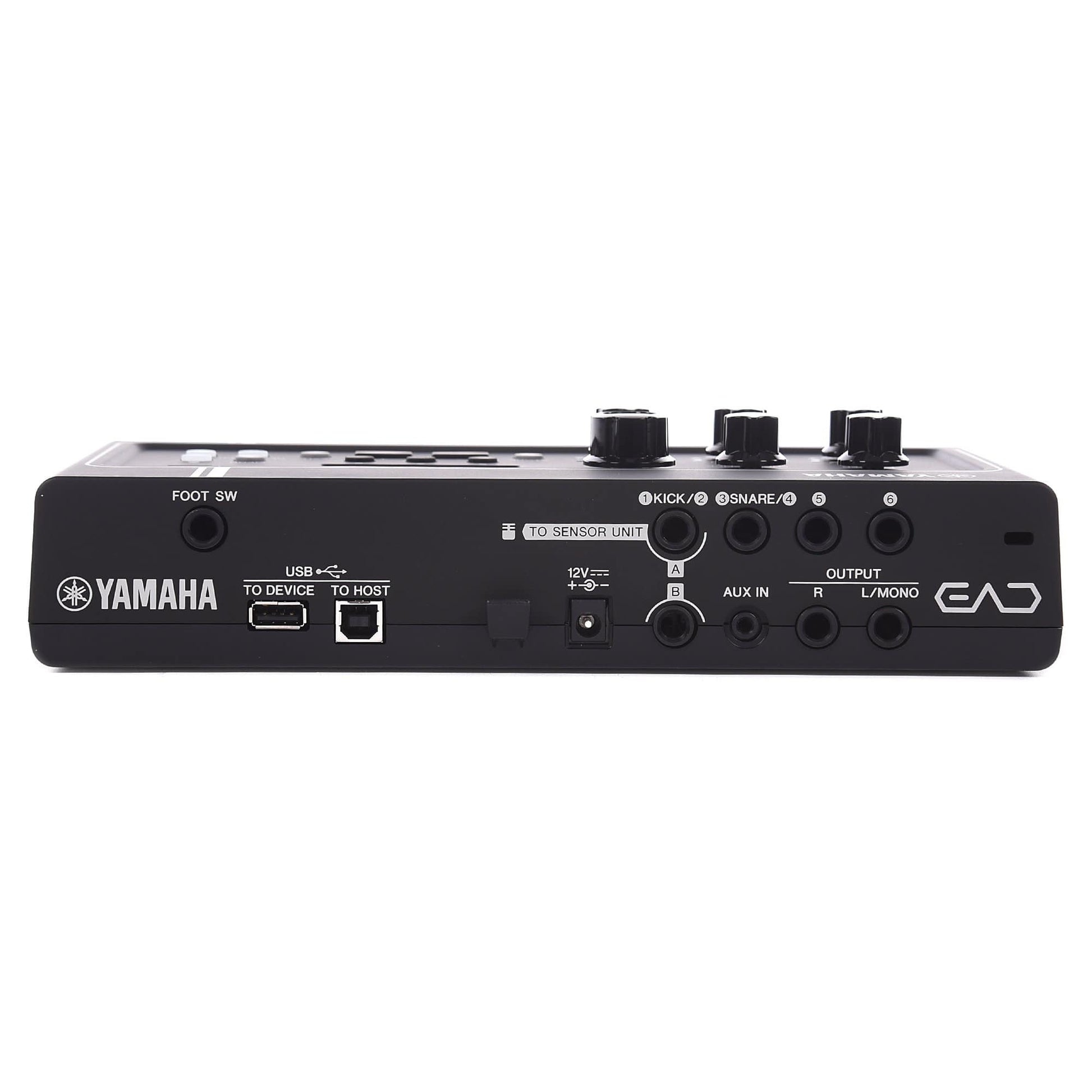

Connectors: DC IN (12 V), PHONES (standard stereo phone), AUX IN (stereo mini), OUTPUT L/MONO, R (standard mono phone), USB TO DEVICE, USB TO HOST
Sensor Unit: For Trigger sensor: A (standard stereo phone)
For Mic sensor: B (standard stereo phone)
Trigger input: Stereo (L: trigger, R:trigger): 1 KICK/2 (also serves as A), 3 SNARE/4 (standard stereo phone)
Three-zone (L: trigger, R: rim switch): 5, 6 (standard stereo phone)
Foot Pedal: FOOT SW (standard stereo phone)
Sensor outputs: For Trigger sensor: A (standard phone)
For Mic sensor: B (standard stereo phone)
Microphone Sensor: High SPL mic × 2
Trigger: Exclusive for bass drum × 1
Included accessories: Owner’s manual, PA-150 (or an equivalent recommended by Yamaha), module holder, module holder wing bolts (× 2), connector cables (1 pair), cable bands (× 3), adhesive cushions (× 2)
