From Yamaha:

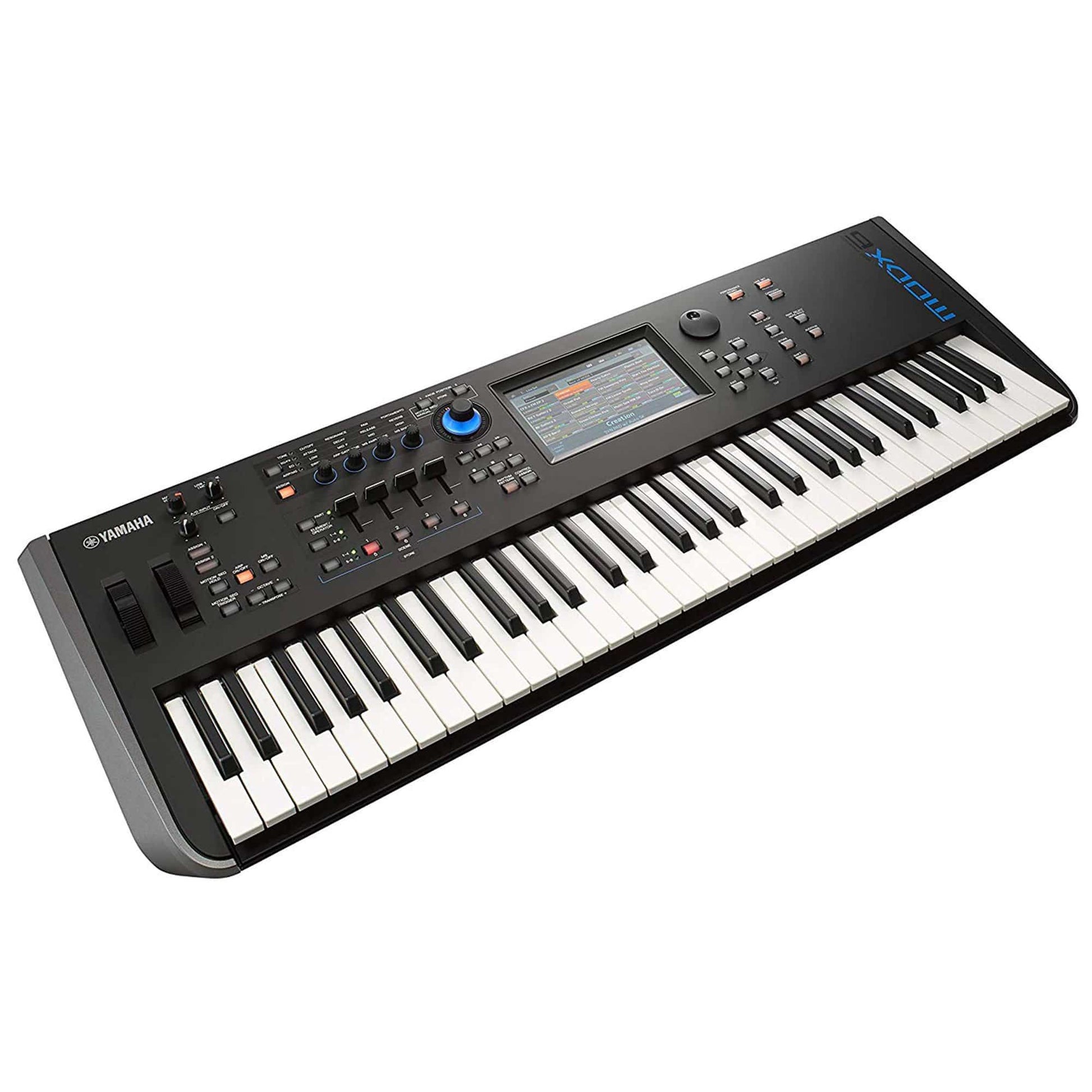

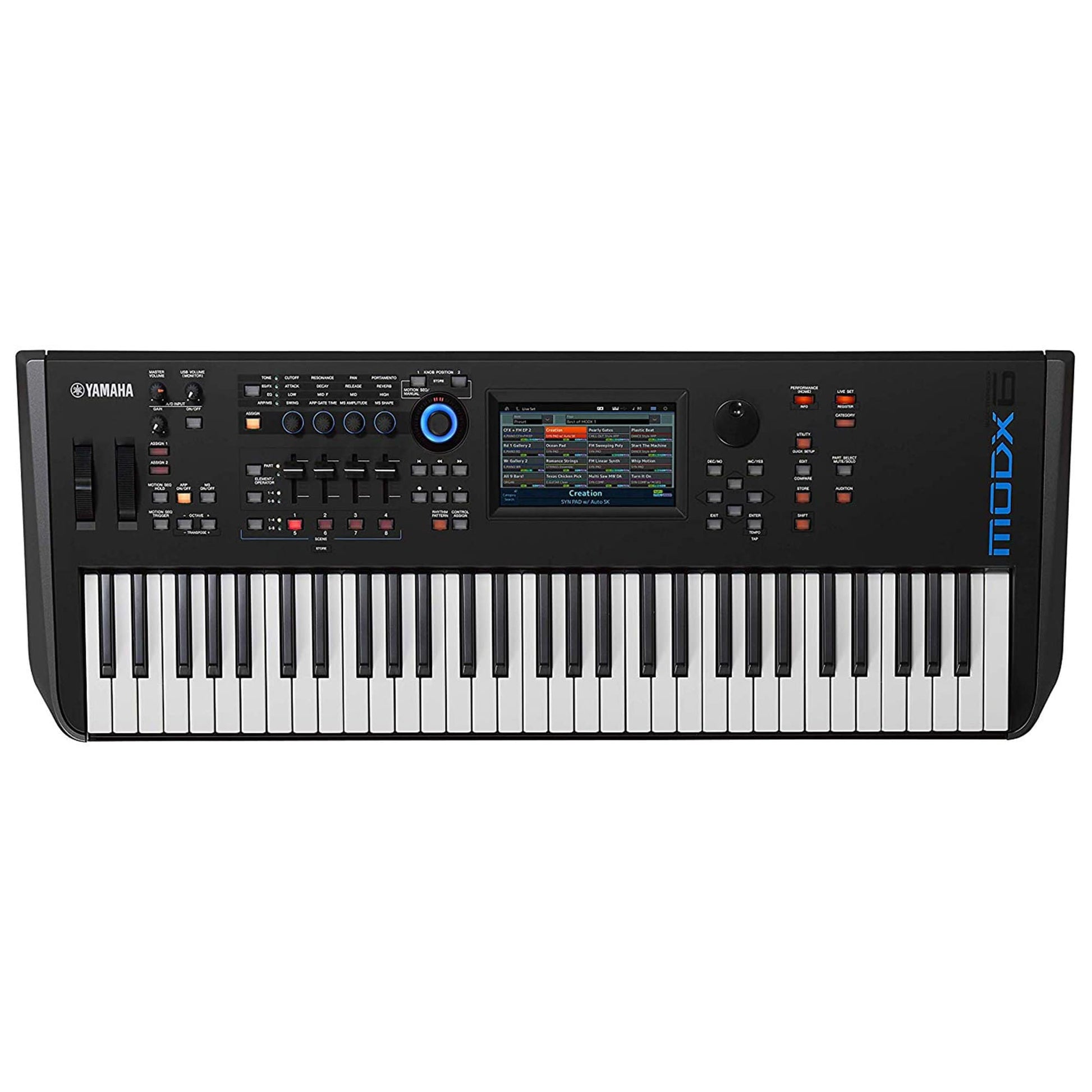

For the synthesist needing unique sound design capabilities, MODX is a synthesizer with an 8-operator, full controllable FM-X engine. MODX features deep programmability, controllability and a huge amount of polyphony.
Width: 937mm (36-7/8")
Height: 134mm (5-1/4")
Depth: 331mm (13-1/16")
Weight: 6.6 kg (14 lbs 9 oz)
Number of Keys: 61
Keyboard Type: Semi-weighted Keyboard
Initial Touch: Yes
Aftertouch: No
Tone Generator: Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms
Maximum Polyphony: AWM2: 128 (max.; stereo/mono waveforms) FM-X: 64 (max.)
Multi Timbral Capacity: 16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part
Wave: Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.00 GB
Performance: Approx. 2,000
Filter: 18 types
Effects: Reverb x 12 types, Variation x 76 types, Insertion (A, B) x 76 types*, Master Effect x 15 types *A/D part insertion x 71 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)
Controllers: Master Volume, AD Input Gain knob, USB Volume, Pitch Bend wheel, Modulation wheel, Control Sliders x 4, Knobs x 4, Super Knob, Data dial
Display: 7" TFT Color Wide VGA LCD touch screen

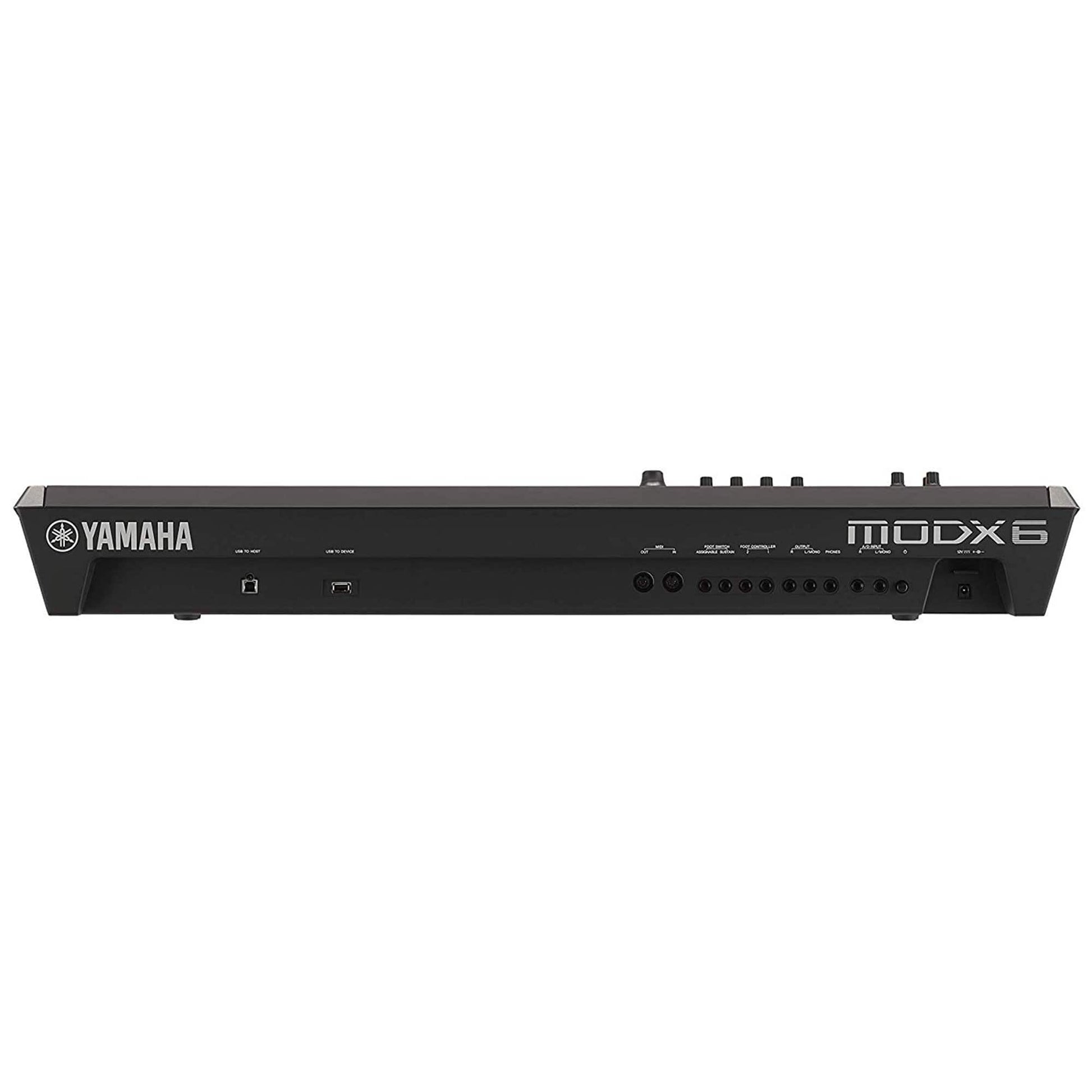

Connectors: [USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)
Power Consumption: 16 W (when using PA-150B AC adaptor)
Accessories: AC adaptor (PA-150B or an equivalent recommended by Yamaha*), Owner’s Manual (this book), Cubase AI Download Information *May not be included depending on your area. Check with your Yamaha dealer.
Live Sets: Preset: 256 and more, User: 2,048
Tracks: 16 Sequence tracks, Tempo track, Scene track
Recording type: Real time replace, Real time overdub, Real time punch in/out
Note Capacity: Approx. 130,000 notes
Note Resolution: 480 ppq (parts per quarter note)
Tempo (BPM): 5 – 300
Songs: 128 songs
Arpeggio: Parts: 8 Parts simultaneous (max.), Preset: 10,239 types User: 256 types
Sequence formats: MODX original format, SMF formats 0, 1
